Quick Details
-
Application:
-
Mattress Handle Sewing
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Tape Edge Sewing
-
Name:
-
Mattress Banding Machine
-
Application:
-
Mattress Handle Sewing

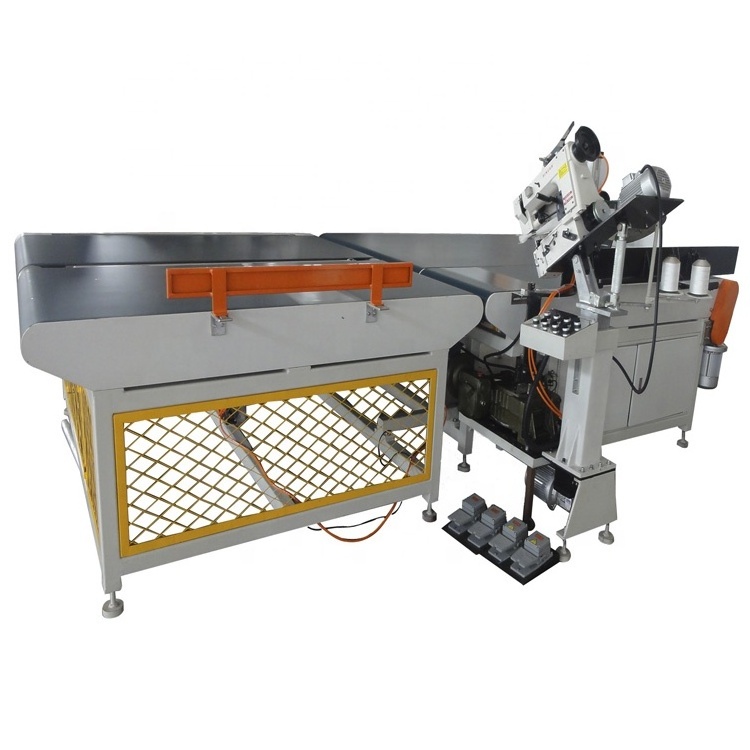

Widely Used Mattress Tape Edge Machine Quilt Edge Bander Binding Machine
This machine is mainly used for mattress tape sewing. The main advance is sewing head need not moving, but the lifting machine can turn angles to sew mattress of different thickness. It is equipped with Singer-300U chain sewing head and microcomputer controlling system imported from America. When producing, the conveyer can move forward, backward, turning 90 degrees or 180 degrees to sew the whole mattress automatically.
Technical Specification:
|
Model |
SL-08E |
|
Machine size |
4000×2600× 1400mm |
|
Work table size |
4000×2000×800mm( adjustable ) |
|
Mattress thickness |
150mm - 300mm |
|
Sewing speed |
≤ 9m /min (adjustable) |
|
Angle of sewing head |
35°-55° |
|
Lift ing range of sewing head |
≤ 300mm (adjusted by motor) |
|
Power of sewing motor |
0.37KW |
|
Power of lifting motor |
0.37KW |
|
Power of conveyer |
0.75KW×2 |
|
Power of the push motor |
0.75KW |
|
Air pressur e |
6 KGS/cm3 |
|
Weight |
1350KG |
We sincerely welcome friends from home and abroad to visit our company to negotiate the price and procurement further our discussion on the later cooperation.
