Quick Details
-
Graphic Format Supported:
-
pg, svg, png, bmp, G code, dwg, etc.
-
Place of Origin:
-
China
-
Brand Name:
-
AlgoLaser
-
Dimension(L*W*H):
-
735mm*223mm*180mm
-
Weight (KG):
-
5.87 KG
-
Laser Spot Size:
-
0.15mm*0.12mm
-
Laser Wavelength:
-
455±5nm
-
Focal Length:
-
30mm
-
Laser Head Life Expectancy:
-
> 10000 hours
-
Machine Power:
-
144W
-
Frame Materials:
-
Aluminum Alloy
-
Motherboard:
-
ALGOLASER_DIY_KIT_V1.2
-
Input Voltage:
-
100V-240V~50/60Hz
-
Power Adapter Output:
-
24V6A (6A MAX)
-
Certificate:
-
FCC/CE/RoHS etc.
Quick Details
-
Engraving Area:
-
400*400mm
-
Laser Type:
-
Diode
-
Engraving Speed:
-
0-12000 mm/min
-
Graphic Format Supported:
-
pg, svg, png, bmp, G code, dwg, etc.
-
Place of Origin:
-
China
-
Brand Name:
-
AlgoLaser
-
Dimension(L*W*H):
-
735mm*223mm*180mm
-
Weight (KG):
-
5.87 KG
-
Laser Spot Size:
-
0.15mm*0.12mm
-
Laser Wavelength:
-
455±5nm
-
Focal Length:
-
30mm
-
Laser Head Life Expectancy:
-
> 10000 hours
-
Machine Power:
-
144W
-
Frame Materials:
-
Aluminum Alloy
-
Motherboard:
-
ALGOLASER_DIY_KIT_V1.2
-
Input Voltage:
-
100V-240V~50/60Hz
-
Power Adapter Output:
-
24V6A (6A MAX)
-
Certificate:
-
FCC/CE/RoHS etc.
Product Description

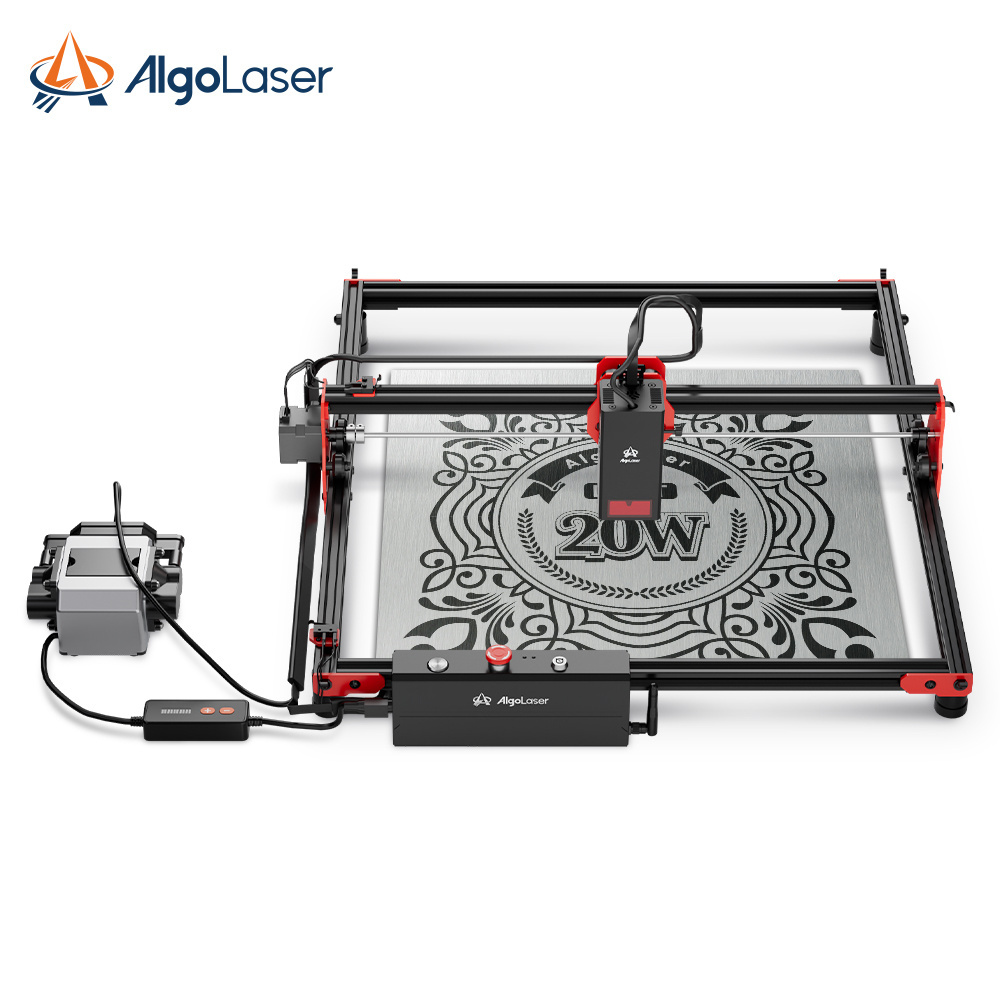

Stronger Cutting,Superior Productivity
The 20W laser module makes batch engraving
and cutting much easier,
greatly boosting your business.
Real Offline Control
The 20W DlY KIT laser engraver supports
2.4G WiFi
and USB-C connections.
For beginners,
AlgoLaser App, LightBurn,
and
LaserGRBL
software
provide easy access to offline control and engraving.
Dual-core CPU.
With 8 MB of RAM, 8 MB of storage, and built-in 32' GB high-speed storage,
the speed of uploading and reading files gets faster.
Strong Compatibility
Safe and reliable high-power motherboard compatible with 5W, 10w, and 20W laser modules,which is convenient for upgrading laser engraver machine by replacing the module.
Multi-functional Motherboard
Thanks to the motherboard's screen structure, the machine can be controlled with an external smart screen. Besides, the Smart l/0 interface can be linked to the external Smart HUB, promoting smart air pump, smart protection box, and smart filter expansion to attain joint control automation.simple and user-friendly.
7 Safety Protections
1.Beam Detectionand Protection
2.Machine Offset Detection and Protection
3.Machine Tilt Detection and Protection
4.USB Connection Detection and Protection
5.Current and Voltage Detection and Protection
6.Emergency Stop Switch
7.Key Lock
Explore More Fun
The upgraded terminals of the motherboard, as well as modularization design
of DlY KlT, allows users to expand different functions
and explore more possibilities with matching various accessories.
Classic Aluminum 2020 profile construction allows the user
to extend the existing frame and increase the engraving area.
Noted: Additional accessories for more advanced assembly will need to be purchased separately.
Thoughtful Design
User-friendly installation
The assembly takes only 10~15 mintutes with instruction help, even for newbies.
Wire Management - With few wires, proper notches and wire ties, no worry about tangled wires
and misplugging.
Stable Structure - Motion structure 4-wheel design and Y-axis synchronization design ensure
motion stability;
2 limit switches and 4 limit studs to prevent impact damage to the laser module;
Stable body and non-slip feet support the machine to work without shifting.
|
Available Materials
|
Cut
|
Sculpture
|
|
Card board
|
✔
|
✔
|
|
Wood
|
✔
|
✔
|
|
Bam boo
|
✔
|
✔
|
|
Leather
|
✔
|
✔
|
|
Fabric
|
✔
|
✔
|
|
Acrylic
|
✔
|
✔
|
|
Black Acrylic
|
✔
|
✔
|
|
Glass
|
×
|
✔
|
|
Stone material
|
×
|
✔
|
|
Aluminum (anodized)
|
×
|
✔
|
|
Stainless
|
×
|
✔
|
|
Rubber
|
×
|
✔
|
