Quick Details
-
Size:
-
4.28m*5m*9m
-
Material:
-
stainless steel
-
Warranty:
-
2 years
-
Output Power:
-
9.4kW
-
Design Style:
-
high pressure car washer
-
Product name:
-
Bus washer
-
Type:
-
BUS washing machine
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mattias
-
Model Number:
-
M7222-BUS
-
Size:
-
4.28m*5m*9m
-
Material:
-
stainless steel
-
Warranty:
-
2 years
-
Output Power:
-
9.4kW
-
Design Style:
-
high pressure car washer
-
Product name:
-
Bus washer
-
Type:
-
BUS washing machine
Product Information
Product Description

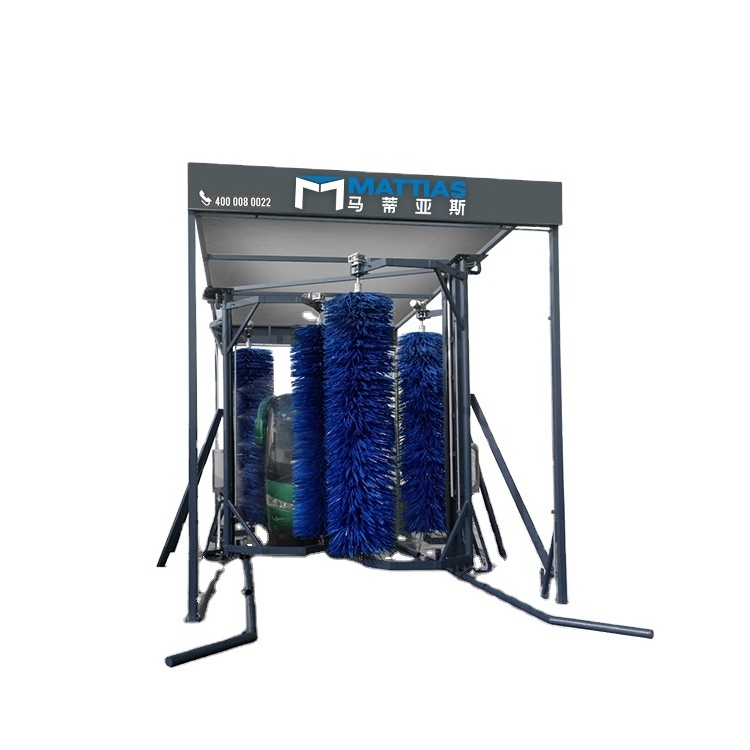

M-BS0300G Large-Scale Bus Wash Machine
The M-BS0300G Bus Washer is a vehicle wash machine designed especially for large vehicles. Installing the system reduces driver workload and work hours, thereby improving the working environment. In recent years, the system has been increasingly adopted in Public transport (also known as public transportation, public transit, mass transit, or simply transit) centers.
This drive-through system is the perfect friction wash cleaning solution for transit, paratransit, and school buses. The most popular configuration includes an overlapping 3-brush system with rear wrap functionality, combined with a high-pressure spinner and v-sprays for touchless cleaning of the front surfaces, bike racks, behind the bike racks, mirrors, wheels, and chassis.
Product Features:
* Suitable for bus/double-decker bus/van washing
* Vehicle-contour self-detection tech gives all-around cleaning
* Rearview mirror protection
* The enlarged washing range washes off the sand and dirt completely
* Fully monitoring the washing state
* The precise judgment of malfunction types or location
This drive-through system is the perfect friction wash cleaning solution for transit, paratransit, and school buses. The most popular configuration includes an overlapping 3-brush system with rear wrap functionality, combined with a high-pressure spinner and v-sprays for touchless cleaning of the front surfaces, bike racks, behind the bike racks, mirrors, wheels, and chassis.
Product Features:
* Suitable for bus/double-decker bus/van washing
* Vehicle-contour self-detection tech gives all-around cleaning
* Rearview mirror protection
* The enlarged washing range washes off the sand and dirt completely
* Fully monitoring the washing state
* The precise judgment of malfunction types or location
Product Paramenters
|
Applicable Car Types
|
|
Buses / Large passenger transport vehicles / Container trucks (excluding roof washing) |
|
|
Max.Washable Car Dimensions(L*W*H) |
|
(Unlimited length) × 2.8 × （3.5~4.2） |
|
|
Single Car Wash Time |
|
55~60 vehicles / hour |
|
|
Single Car Shampoo Consumption |
|
N/A |
|
|
Single Car Power Consumption |
|
Around 0.18 degrees/vehicle |
|
|
Single Car Power Consumption |
|
Around 120L/vehicle |
|
|
Machine Dimensions(L * W * H) |
|
6m × 4.28m × 5m
|
|
|
Installation Dimensions(L * W * H) |
|
7.6m × 20m (Ensures Crane Working Height) |
|
|
Rail Length |
|
N/A |
|
|
Air Source Requirement |
|
0.6~0.8MPa
|
|
|
Rated Voltage of Machine: |
|
3ph AC380V 50Hz |
|
|
Rated Power of Machine: |
|
8.45kW
|
|
|
Power of Top Brush Rotation Motor |
|
0.75kW*1
|
|
|
Power of Top Brush Lifting Motor |
|
N/A |
|
|
Power of Side Brush Rotation Motor |
|
0.75kW*2
|
|
|
Side Brush Opening and Closing Motor |
|
N/A |
|
|
Small Brush Motor |
|
N/A |
|
|
Travelling Motor |
|
N/A |
|
|
Submersible Pump Motor |
|
2.2kW*1
|
|
|
Water Pump Pressure |
|
0.6MPa
|
|
|
Power of High-pressure Water Pump Motor |
|
4kW*1（Optional）
|
|
|
Pressure of High-pressure Water Pump |
|
2MPa（Optional）
|
|
