Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Standard
-
Weight:
-
50 KG
-
After-sales Service Provided:
-
No overseas service provided
-
product Name:
-
Rotary vibrating screen
-
Material:
-
Stainless Steel/carbon steel
-
Color:
-
according your require
-
Layer:
-
1-5 Layers
-
Motor:
-
Vertical Vibrating Motor
-
Usage:
-
grain,powdwes screening,liquids ,solids filtering
-
suitable industry:
-
Chemical,Metal,Metallurgy mining,Abrasive,ceramic,pigment,food
-
Keyword:
-
Rotary Vibrating Separator
-
Capacity:
-
10Kg-10Tons/hour
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SYT
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Standard
-
Weight:
-
50 KG
-
After-sales Service Provided:
-
No overseas service provided
-
product Name:
-
Rotary vibrating screen
-
Material:
-
Stainless Steel/carbon steel
-
Color:
-
according your require
-
Layer:
-
1-5 Layers
-
Motor:
-
Vertical Vibrating Motor
-
Usage:
-
grain,powdwes screening,liquids ,solids filtering
-
suitable industry:
-
Chemical,Metal,Metallurgy mining,Abrasive,ceramic,pigment,food
-
Keyword:
-
Rotary Vibrating Separator
-
Capacity:
-
10Kg-10Tons/hour
Product description

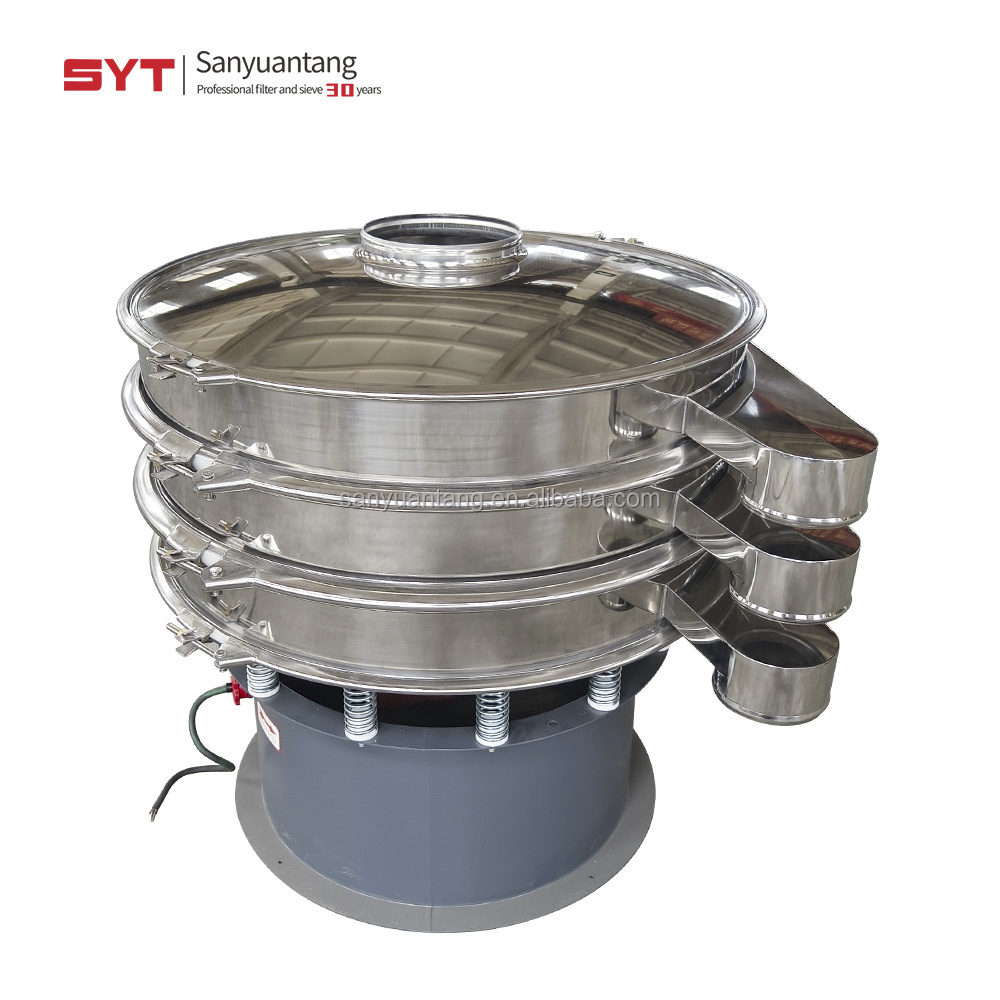

Rotary vibrating screen description:
The rotary vibrating screen machine is a high-precision powder grading machine, with low noise, high efficiency, a quick changer that takes 3-5 minutes, totally enclosed structure, for grain, flour, mucus, and other materials screening filters.
Rotary Vibrating Screen is a motor for a vertical excitation source, the motor and lower eccentric weight are installed at both ends of the motor rotary motion into a horizontal, vertical, inclined three elementary motions, and then the movement passes to the screen surface. Adjust the upper and lower ends of the phase angle, the material can change the trajectory of the screen surface. It is typically used in industries such as food processing, pharmaceuticals, chemicals, and minerals.
Product Features :
1.Easy to change the net, simple operation, convenient cleaning.
2.Unique frame design, long screen use time. It only takes 3-5 minutes to change the network.
3.Small size, does not take up space, easy to move
4.High efficiency, exquisite design durable, any powder, mucus can be screened
5.Automatic removal of impurities and coarse material, can be continuous operation
6. The material can be customized according to the material screened, including carbon steel and 304/316 stainless steel.
3.Small size, does not take up space, easy to move
4.High efficiency, exquisite design durable, any powder, mucus can be screened
5.Automatic removal of impurities and coarse material, can be continuous operation
6. The material can be customized according to the material screened, including carbon steel and 304/316 stainless steel.
|
Model
|
Effective diameter
|
Screen size
|
Layer
|
Power(KW)
|
|
SY-400
|
380 mm
|
2-500 mesh
|
1-3 layers
|
0.25 kw
|
|
SY-600
|
580 mm
|
|
1-3 layers
|
0.55 kw
|
|
SY-800
|
780 mm
|
|
1-4 layers
|
0.75 kw
|
|
SY-1000
|
970 mm
|
|
1-4 layers
|
1.1 kw
|
|
SY-1200
|
1170 mm
|
|
1-5 layers
|
1.5 kw
|
|
SY-1500
|
1470 mm
|
|
1-5 layers
|
2.2 kw
|
|
SY-1800
|
1770 mm
|
|
1-5 layers
|
3 kw
|
Product show
FAQ
Q: What are you mainly specilized in?
A: Our company is a professional manufacture of vibrating screen sifter equipments(like rotary vibrating
screen,ultrasonic sieving machine,linear vibrating screen,test sieve machine,trumbler screem,drum screen,
direct discharge screen,airflow sieving machine,450 filter machine and so on);conveying equipment (like
screw conveyor,bucket elevator,vertical vibration elevator and so on);honey machine(honey processing
machine,honey filling machine)
Q:What's your after-sales services?
A: 24 hours service online,you can tell your trouble any time.
Q:What is the MOQ of our products?
A:Usually 1 set.
Q:What is the payment terms?
A. Usually use T/T,but Western Union is also available.
Q:What's your delivery time?
A:Ususlly 7-10 working days,if the order is large,the time should be longer.
Q:What's the advantage compared to other suppliers?
A:We are a factory,We have business directly with our customers,there isn't any link between customers,so we can offer competitive
price for you.
A: Our company is a professional manufacture of vibrating screen sifter equipments(like rotary vibrating
screen,ultrasonic sieving machine,linear vibrating screen,test sieve machine,trumbler screem,drum screen,
direct discharge screen,airflow sieving machine,450 filter machine and so on);conveying equipment (like
screw conveyor,bucket elevator,vertical vibration elevator and so on);honey machine(honey processing
machine,honey filling machine)
Q:What's your after-sales services?
A: 24 hours service online,you can tell your trouble any time.
Q:What is the MOQ of our products?
A:Usually 1 set.
Q:What is the payment terms?
A. Usually use T/T,but Western Union is also available.
Q:What's your delivery time?
A:Ususlly 7-10 working days,if the order is large,the time should be longer.
Q:What's the advantage compared to other suppliers?
A:We are a factory,We have business directly with our customers,there isn't any link between customers,so we can offer competitive
price for you.
Contact us
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact materials part is 304 stainless steel or all carbon steel?
