Supply Factory Price Anti Theft GPS Car Tracker with SMS Remote Engine Cut off

Supply Factory Price Anti Theft GPS Car Tracker with SMS Remote Engine Cut off

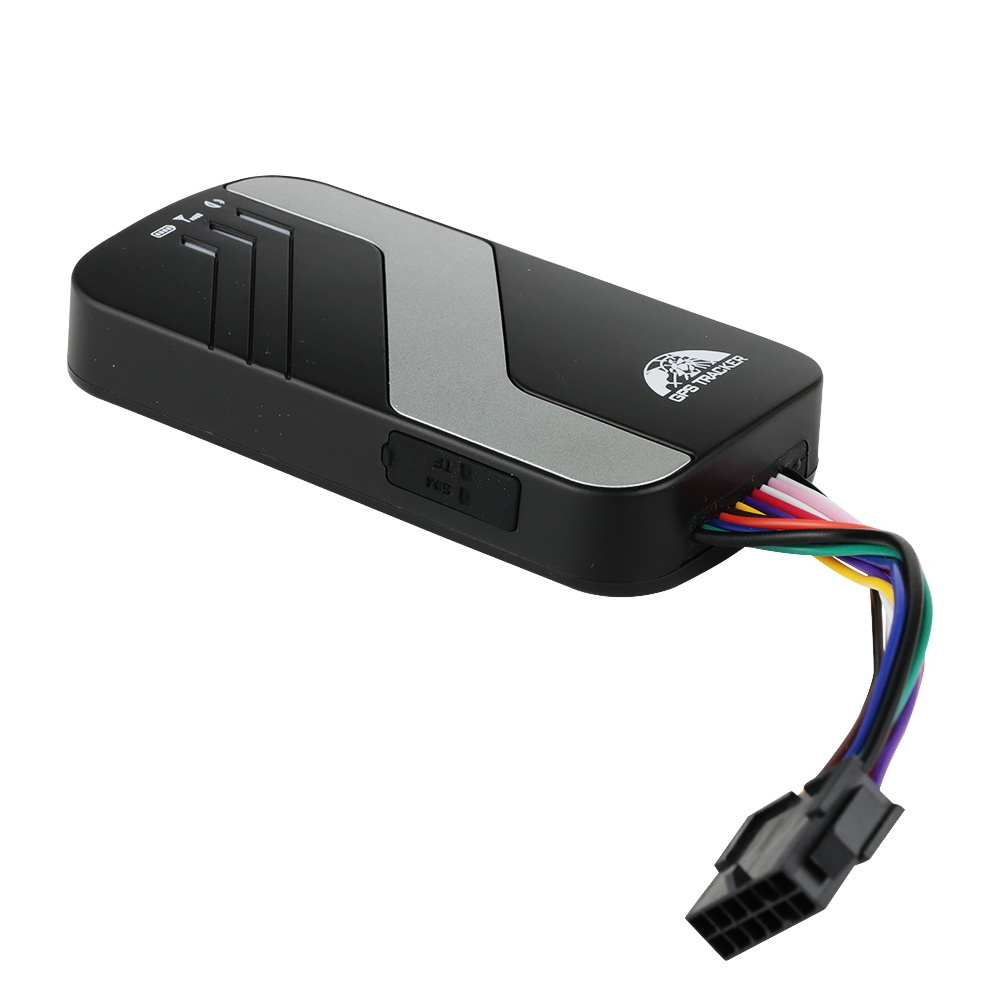

GPS Tracker TK403A and TK403B :

• 403a\b have already widely and successfully in Africa ,Europe,South American : Chile\Mexico\Agentina\Colombia\Costa rica\Brazil\Peru
• 403a\b support the most Sounth American Country running sim card

Technology parameter:
*Network: GSM/GPRS
*Band: 2G (850/900/1800/1900Mhz)\4G (B1/B2/B3/B4/B5/B7/B8/B28/B40)
*GPS sensitivity: -159dBm
*GPS accuracy: 5m
*Time To First Fix:Cold status 45s, Hot status 1s

*Real time track via Android IOS APP:

*Web based online tracking on PC at our serve r www.gpstrackerxy.com\www.baanool.net

Summary

This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.

waterproof Mini gps tracker car real time tracking on Free APP  tk311 coban gps gsm car trackerwaterproof Mini gps tracker car real time tracking on Free APP  tk311 coban gps gsm car tracker

Features

Vehicle GPS Tracker Mini GPS Tracker Real-time Geofence History Tracking Device GPS TrackerTK403:

4g gps tracker tk403 harness diagram :

Ø Please ask a qualified engineer to install it.

Ø The installation environment should not exceed the GSM performance index.

Ø Please do not install it in a dusty and humid environment .

Ø Find the 12PIN wiring harness provided with the product, insert it into the corresponding wiring hole of the product, and connect to the original car circuit as shown in the following figu re:

Wiring Diagram

Ø The pink wire can be connected to the original car alarm horn or the alarm horn purchased together.

Ø Understand that the vehicle door trigger type is positive trigger or negative trigger. C onnected to the green wire if it is positive trigger , and connected to the blue wire if it is negative trigger.

Ø Please install the SOS button where the driver can touch it.

vehicle gps tracker tk403 functions showing below :

• 1.Changing password
  2.Authorization
  3.Single tracking
  4.Continuous interval tracking
• 5.Limited times tracking at a time interval
  6.Unlimited times tracking at a time interval
  7.Unlimited times tracking at a distance interval
  8.Smart tracking at both time and distance interval
  9.Cancel interval tracking
  10.Smart angle updating
  11.GPS drift suppression
  12.Exact street address
  13.Location based service (LBS) / Cell-ID tracking
  14.Auto answer

• 15.Forwarding incoming SMS messages
  16.SIM Card Balance Enquiry
  17.ACC ON/OFF Alert
  18.Remote immobilizing
  19.Fuel sensor calibrating
  20.Configure times of alarm SMS

  21.Alarms
  21.1Low battery alarm
  21.2Power disconnection alarm
  21.3Blind area alarm
  21.4SOS alarm
  21.5Geo-fence
  21.6Movement alarm
  21.7Over speed alarm
  21.8Fuel alarm
  21.9Remote control function (For B model)
•
  22.Arming

  23.Silent Arming

  24.Disarming
  25.Alarm function in arming state
  25.1Door opening alarm
  25.2ACC (Ignition / voltage) alarm
  25.3Acceleration Sensor Alarm
  25.4No GSM network alarm

  26.Sleep
  27.Check Status
  28.Check IMEI
  29.Local time setting
  30.Reset Hardware
  31.GPRS configuration for live real-time tracking
  32.Configure APN, GPRS login user name and password
  33.Configure domain name and port.
  34.GPRS / SMS mode switch
  35.Activate Fuel value in GPRS data
  36.Configure SMS management center number
  37.Configure heartbeat package interval
  38.Initialization

gps vehicle tracker tk403a and 403b accessories :

1. Giftbox

2. Harness

3. Manual

4. Relay

5.Srewer

6.Microphone

7.GPS Unit

8.Remote Control ( Option )

4g gps tracking device tk403 with FCC Certification :
