Quick Details
-
Brand Name:
-
Lingfran
-
Model Number:
-
SVC/TNS
-
Power:
-
6-100KVA
-
Input Voltage Range:
-
260-430V
-
Output Voltage:
-
380V+/-3%
-
Response Time:
-
<1s
-
Efficiency:
-
>95%
-
Working Frequency:
-
50/60Hz
-
Regulation Type:
-
Servo motor type
-
Protection:
-
Under-voltage, over-voltage, overload, short circuit
-
Load Power Factor:
-
0.8
-
Waveform Distortion:
-
Nil
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lingfran
-
Model Number:
-
SVC/TNS
-
Power:
-
6-100KVA
-
Input Voltage Range:
-
260-430V
-
Output Voltage:
-
380V+/-3%
-
Response Time:
-
<1s
-
Efficiency:
-
>95%
-
Working Frequency:
-
50/60Hz
-
Regulation Type:
-
Servo motor type
-
Protection:
-
Under-voltage, over-voltage, overload, short circuit
-
Load Power Factor:
-
0.8
-
Waveform Distortion:
-
Nil

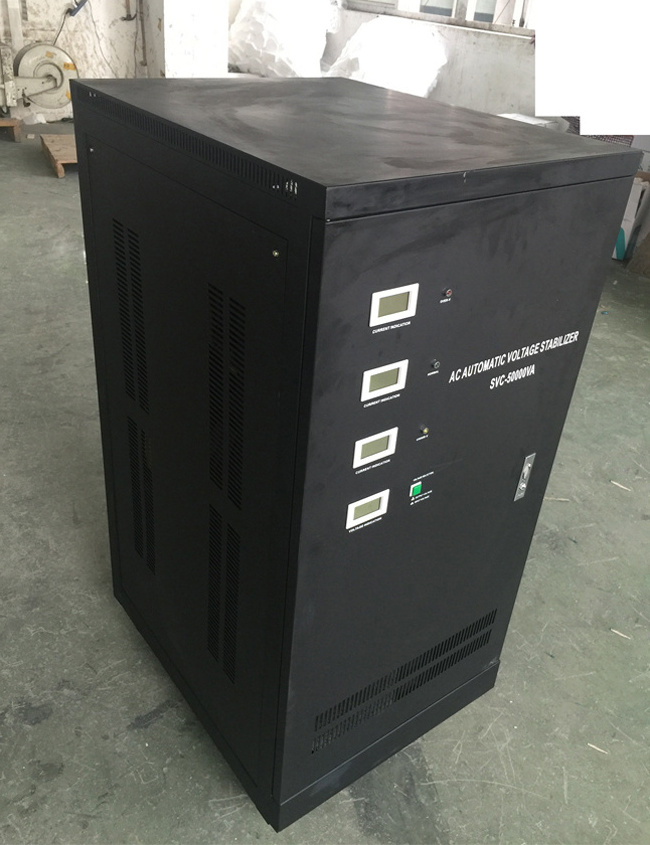

220/380/440 v ac voltage and industrial automatic voltage regulator avr
(1) All new raw materials.
(2) Price based on 60%, 80% and 100% power for your choice.
(3) Small in size, light in weight and cheap in price, but strongly protect your equipment.
(4) Simple installation, safe protection, reliable operation, low maintenance.
(5) Clear, comprehensive documentation and labeling.
(6)
THREE YEARS warranty!
In order to give you the best price, please kindly specify your requirements as clearly as possible.
OEM and ODM is welcome, we have professional and experienced engineer team for you.
| KVA Rating |
6-100KVA |
|
Input Voltage Range |
260-430VAC |
|
Output Voltage |
380VAC |
|
Output Accuracy |
±3% |
|
Working Frequency |
50/60Hz |
|
Display |
Analog Meter |
|
Efficiency |
≥95% |
|
Ambient Temperature |
-10 to +40°C |
|
Altitude |
≤1000m |
|
Relative Humidity |
≤90% |
|
Insulation Resistance |
≥2MΩ |
|
Waveform Distortion |
Nil |
|
Protection Function |
Under-voltage, over-voltage, overload, short circuit |
|
Response Time |
<1s (input voltage varies within ±10%) |
|
Load Power Factor |
0.8 |
|
Regulation Type |
Servo motor type |
|
Transformer Type |
Toroidal auto transformer |
|
Coil Material
|
Copper and Aluminum Mixed
|
|
Protection Level |
IP2 0 |
Before leaving the LINGFRAN factory, every automatic voltage stabilizer/regulator must pass a series of rigorous tests, performed with advanced equipment, on a range of measurements.
(1) Appearance – visual check.
(2) Input voltage regulation range, output voltage and output accuracy.
(3) Insulation resistance and withstand voltage strength .
(4) Protection Function: Over voltage, under voltage, short circuit.
Below are part of our testing instrument.
