Quick Details
-
Control System Brand:
-
FSCUT Tubepro 5000A
-
Cutting Area:
-
1600mm*6000mm
-
Cutting Thickness:
-
customized
-
Control Software:
-
FSCUT Tubepro 5000A
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OREE LASER
-
Weight (KG):
-
5700 KG
-
Core Components:
-
laser source
-
Product name:
-
tube fiber laser cutting machine for metal steel stainless
-
Keywords:
-
1000w 2000w 3000w 4000w pipe laser cutter
-
Laser power:
-
1000W/2000W/3000w/4000w/6000w
-
Function:
-
Cutting Metal Materials
-
Laser source:
-
RAYCUS MAX IPG
-
Laser head:
-
Raytools Cutting Head
-
Effective cutting diameter of round tube:
-
10-165mm
-
Repeat Positioning Accuracy:
-
±0.03mm
-
Chuck maximum speed:
-
140r/min
-
Maximum acceleration:
-
1.5G
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
140r/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
FSCUT Tubepro 5000A
-
Cutting Area:
-
1600mm*6000mm
-
Cutting Thickness:
-
customized
-
Control Software:
-
FSCUT Tubepro 5000A
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OREE LASER
-
Weight (KG):
-
5700 KG
-
Core Components:
-
laser source
-
Product name:
-
tube fiber laser cutting machine for metal steel stainless
-
Keywords:
-
1000w 2000w 3000w 4000w pipe laser cutter
-
Laser power:
-
1000W/2000W/3000w/4000w/6000w
-
Function:
-
Cutting Metal Materials
-
Laser source:
-
RAYCUS MAX IPG
-
Laser head:
-
Raytools Cutting Head
-
Effective cutting diameter of round tube:
-
10-165mm
-
Repeat Positioning Accuracy:
-
±0.03mm
-
Chuck maximum speed:
-
140r/min
-
Maximum acceleration:
-
1.5G

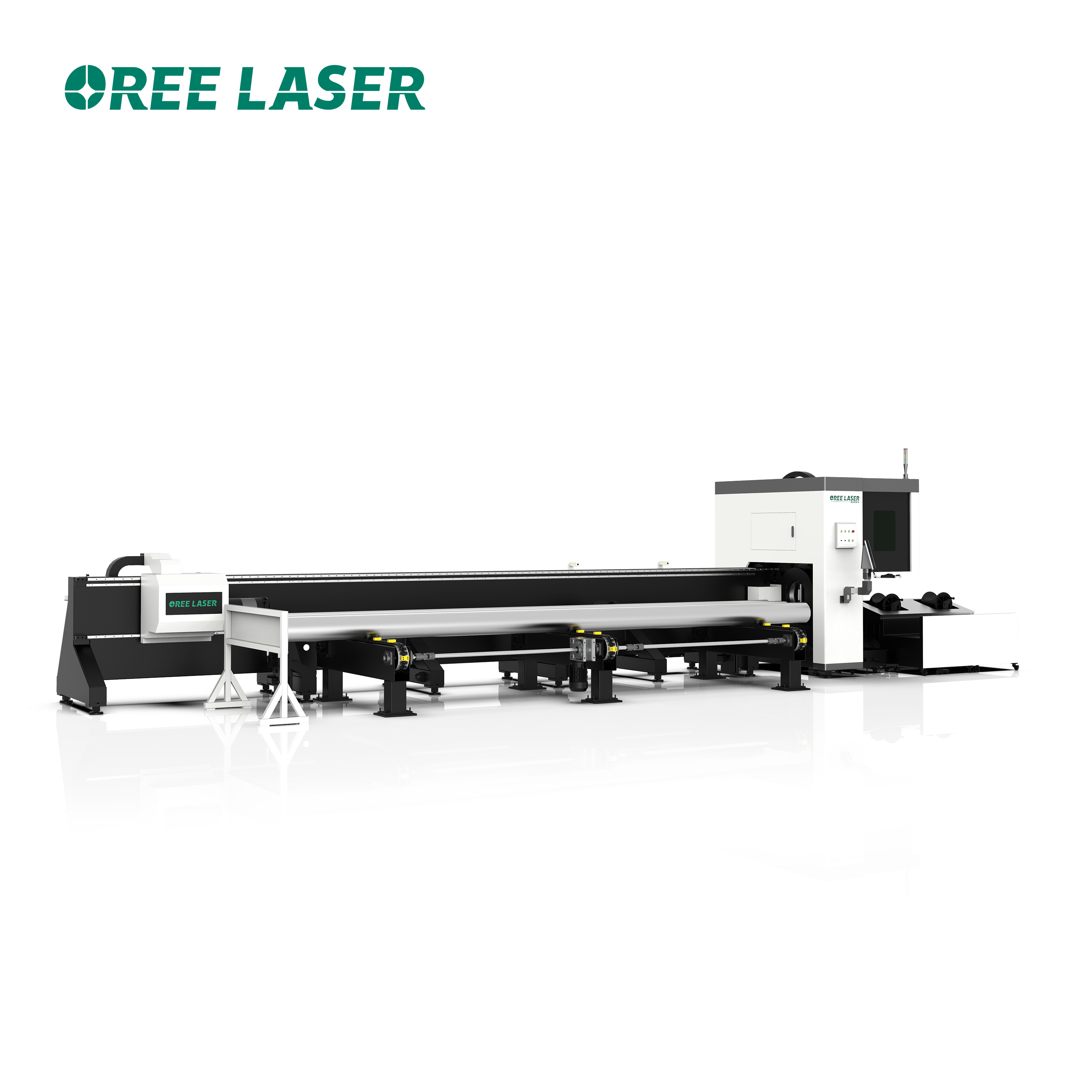

Side-mounted High-efficiency Laser Pipe Cutting Machine OR-TH Series
Product Description
Side hung plug-in welded bed
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Intelligent Pipe Cutting System
ntelligent 3D professional pipe cutting system for precise pipe processing, faster pipe cutting speed and more reliable cutting quality. Support high precision and high efficiency cutting of square, round, runway and oval shaped stretch tubes as well as angles and channels.
Automatic loading system
Equipped with semi-automatic loading system, it supports a wide range of tube types for loading, just place multiple tubes on the
conveyor belt to achieve automatic loading.
conveyor belt to achieve automatic loading.
Ultra short tailstock cutting
Movable front chuck for stable clamping and high clamping force automatic positioning of the center of the tube, to achieve ≤ 70mm ultra-short cutting tail material, with more material savings
Specification
|
Model
|
OR-TH6016
|
OR-TH6020
|
|
|
keywords
|
1000w~3000w
|
|
|
|
Effective cutting diameter of round tube
|
Φ10-Φ160mm
|
Φ10-Φ225mm
|
|
|
Effective cutting diameter of square tube
|
□10-□160mm
|
□10-□225mm
|
|
|
Chuck maximum speed
|
140r/min
|
120r/min
|
|
|
Positioning accuracy
|
±0.01mm
|
|
|
|
Laser source
|
MAX/Raycus/IPG
|
|
|
|
Laser head
|
Raytools
|
|
|
|
Maximum acceleration
|
1.5G
|
|
|
|
Chuck load capacity
|
150kg
|
300kg
|
|
Application
Oree laser fiber laser cutting machine for sale is an affordable, easy-to-use, and versatile tool that can help you begin a new start-up venture or increase the profits of your well-established company. This type of fiber laser cutter is suitable for cutting stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium ect., and has been widely used in advertising, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.
Widely used in kitchen appliances, sheet metal chassis cabinets, mechanical equipment, electronic equipment, lighting hardware, advertising signs, auto parts, fitness equipment and other metal products, sheet metal cutting processing and other industries.
Service Team& feedback
A
fter
-sales service & Customer visiting:
1.fiber laser cutting tube machine 3 years warranty except consumable parts;
2.Plenty of technical support online is available;
3.Quick Back-up Parts Available&Technical Assistance;
4."Training Video","Instruction Book",and"Operation Manual"will be offered;
