Quick Details
-
Application:
-
Auto/Industrial control/Robotics/Face Recognition
-
Series:
-

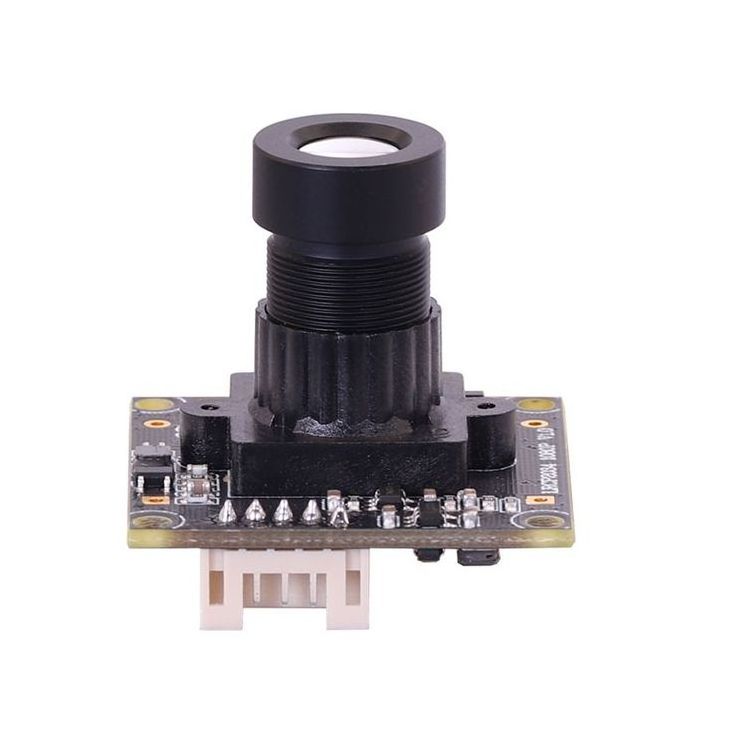

PCBA Module
-
Features:
-
HD Color global exposure 720P120fps
-
Mounting Type:
-
M12
-
Size / Dimension:
-
32*32mm
-
Description:
-
usb free drive
-
Custom support:
-
OEM/ODM
-
Focus Distance:
-
12mm
-
Lens:
-
distortionless
-
Field Angle:
-
30°
-
Visual distance:
-
0.01-25m
-
Interface type:
-
USB 2.0
-
compatible:
-
"Windows/Android/linux/ MAC OS/Raspberry Pi/abuntu"
-
Communication protocol:
-
UVC
-
Sensor:
-
CMOS_1/2.6"
-
Filter customization:
-
support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
zhongwei aoke
-
Model Number:
-
1080P_AR0234_32mm
-
Application:
-
Auto/Industrial control/Robotics/Face Recognition
-
Series:
-
PCBA Module
-
Features:
-
HD Color global exposure 720P120fps
-
Mounting Type:
-
M12
-
Size / Dimension:
-
32*32mm
-
Description:
-
usb free drive
-
Custom support:
-
OEM/ODM
-
Focus Distance:
-
12mm
-
Lens:
-
distortionless
-
Field Angle:
-
30°
-
Visual distance:
-
0.01-25m
-
Interface type:
-
USB 2.0
-
compatible:
-
"Windows/Android/linux/ MAC OS/Raspberry Pi/abuntu"
-
Communication protocol:
-
UVC
-
Sensor:
-
CMOS_1/2.6"
-
Filter customization:
-
support
Product Description
|
Filter band customization introduction
|
|
|
|
Band customization
|
Band characteristics introduction
|
|
|
High definition
|
Visible light, image color, no color (delivery default this effect)
|
|
|
Infrared 850nm
|
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased
|
|
|
Infrared 940nm
|
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased
|
|
|
Narrow band 850nm
|
Wavelength 820-880nm, image will be biased (more black)
|
|
|
Narrow band 940nm
|
Wavelength 910-970nm, image will be dark (close to black and white)
|
|
|
Narrow band 980nm
|
Wavelength 960-1000nm, image will be biased (darker, black and white)
|
|
|
Narrow band 1064nm
|
Wavelength 1040-1080nm, image darker (darker, more black and white)
|
|
|
Narrow band 1310nm
|
Wavelength 1280-1335nm, image darker (darker, more black and white)
|
|
|
Narrow band 1450nm
|
Wavelength 1420-1480nm, image darker (darker, more black and white)
|
|
|
Narrow band 1550nm
|
Wavelength 1520-1580nm, image darker (darker, more black and white)
|
|
|
Near infrared 700-1100nm
|
Wavelength 700-1100nm, image will be skewed (Partial red)
|
|
|
other bands
|
405、520、540、580、730…
|
|
|
Default HD filter, need other bands of filters please contact us
|
|
|
