Quick Details
-
Design Style:
-
Minimalist
-
Surface Treatment:
-
Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JINHU
-
Model Number:
-
JN-ACP-092
-
Base material:
-
high strength aluminum alloy sheet
-
Core:
-
recycle PE core, fire-proof core
-
Surface treatment:
-
PE coated, PVDF coated, wood grain, anodized brush/mirror
-
Color:
-
according to our color card or ral color or the sample's color
-
Thickness:
-
2mm,3mm, 4mm, 5mm, 6mm
-
Width:
-
1000mm, 1250mm, 1500mm, 2000mm(max)
-
Standard Size:
-
1220mm*2440*3mm for interior; 1220mm*2440mm*4mm
-
Certificate:
-
ISO:9001:2000, SONCAP
Quick Details
-
Warranty:
-
3 years
-
Project Solution Capability:
-
Cross Categories Consolidation
-
Application:
-
Apartment
-
Design Style:
-
Minimalist
-
Surface Treatment:
-
Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JINHU
-
Model Number:
-
JN-ACP-092
-
Base material:
-
high strength aluminum alloy sheet
-
Core:
-
recycle PE core, fire-proof core
-
Surface treatment:
-
PE coated, PVDF coated, wood grain, anodized brush/mirror
-
Color:
-
according to our color card or ral color or the sample's color
-
Thickness:
-
2mm,3mm, 4mm, 5mm, 6mm
-
Width:
-
1000mm, 1250mm, 1500mm, 2000mm(max)
-
Standard Size:
-
1220mm*2440*3mm for interior; 1220mm*2440mm*4mm
-
Certificate:
-
ISO:9001:2000, SONCAP

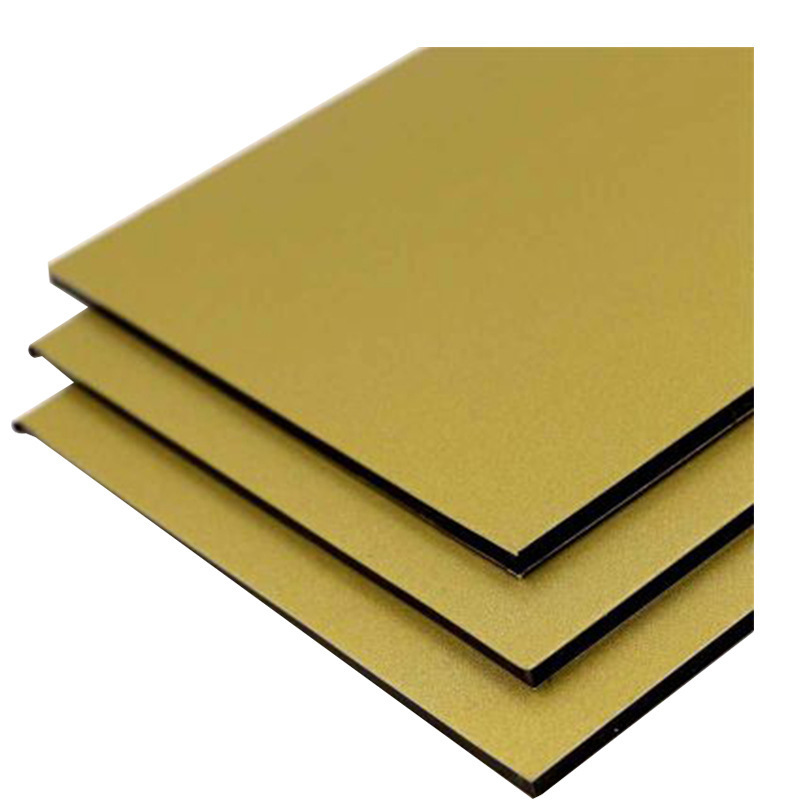

ACM is an aluminum composite material consisting of two aluminum cover sheets sandwiching a nontoxic low-density polyethylene core produced from a continuous extrusion process. When the ACM is used for external cladding of buildings, it is usually called an aluminum composite panel, shortened as ACP.
SUNSHINE PVDF aluminum composite panel Application:
Office buildings, Shopping centers, Airports, Industrial buildings, Hotels, Bus centers, Hospitals, Schools, Supermarkets, Residential buildings.
SUNSHINE PVDF aluminum composite panel Characteristics:
- Superior Weather Resistance
- Light Weight and Easy to process
- Excellent Fire Resistance Properties
- Coating Evenness
- Diversified Colors
- Easy for Maintenance
- Impact Resistance
- High Resistance to Peeling
SUNSHINE PVDF aluminum composite panel Raw material:
|
Base material
|
high strength aluminum alloy sheet |
| PE core material | non-toxic low-density polyethylene |
| Surface coating | PVDF coating |
| Back coating | primer coating |
SUNSHINE PVDF aluminum composite panel Product Specification:
|
Aluminum alloy
|
AA1100 series, AA3003 series |
| Aluminum skin | 0.21mm to 0.50mm |
| Thickness | 4mm,5mm, 6mm |
| Width | 1220mm, 1250mm, 1500mm,2000mm |
| Length | 2440mm up to 6000mm |
| Color | 30 kinds |
| Special size and color can be customized | |
