Quick Details
-
Certificate:
-
ISO CE
-
Warranty:
-
12 Months
-
Max. output:
-
60 HP
-
Cooling method:
-
seal Water cool
-
Electric Starter:
-
12V 1.5kW
-
Weight:
-
180kgs
-
Starting system:
-
Electric or add up spring starter
Quick Details
-
Engine Capacity:
-
1 - 2L
-
Product Name:
-
Diesel Outboard Engine
-
Engine type:
-
4-stroke
-
Certificate:
-
ISO CE
-
Warranty:
-
12 Months
-
Max. output:
-
60 HP
-
Cooling method:
-
seal Water cool
-
Electric Starter:
-
12V 1.5kW
-
Weight:
-
180kgs
-
Starting system:
-
Electric or add up spring starter

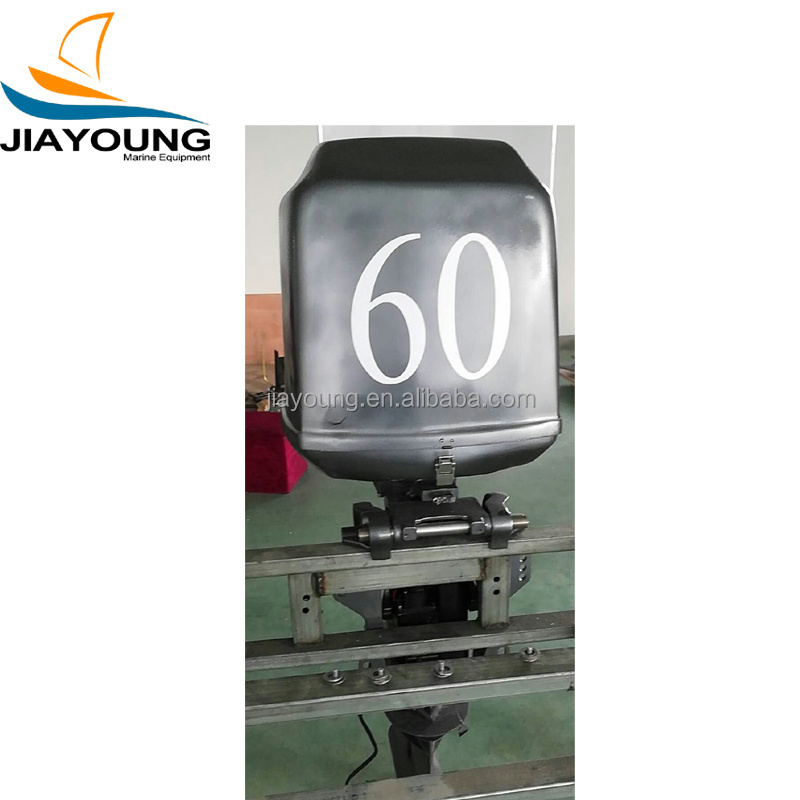

4 Stroke 2 Cylinder 60HP Diesel Outboard Engine
Product Description
Diesel outboard engine details:
1. water-cooled, 4 stroke, diesel engine, extremely low oil consumption,
2. Well adapted for whole day, safe and reliable
3. Good performance for continuation ability
4. Compaction design, low weight, small dimension
5. Easy to start, using convenient, simple maintenance
6. Save fuel: comparing to gasoline engine with the same power,the maximum fuel consumption is
only 2-3L per hour. It saves more than 50% fuel
7. Environmentally friendly, widely used: CE, ISO9001,CCS certificated
60hp diesel outboard engine parameter:
Type V-line, seal water cooling, four stroke,turbo-charged
Combustion chamber type eddy injection
No. of cylinders 2
Cylinder capacity , liters 0.82
Firing order 1→2
Diesel engine Rated speed , r/min 4500
Diesel engine Rated max speed ,r/min 5000
Fuel oil consumption , g/kw.h 280
Rotation (Looking from flywheel end) clockwise
Lubrication method Force and splash
Cooling method seal Water cool
Starting method Electric or add up spring starter
Electric Starter 12V 1.5kW
Noise (From a distance of 1 m), dB 82
Reduction gear type Bevel gear
Reduction ratio (forward/reverse) 1.5:1
Driving (damping) system Spline and rubber press-fit type
Propeller speed (forward/reverse),r/min 2600
Propeller blades-diameter* pitch, mm 3-11 1/8″×13″
Weight ,kg 120/180
Dimension mm 70x90x165
Related Products
Chongqing Jiayoung Marine Co., Ltd can supply 20HP,25HP, 30HP, 35HP, 40HP, 60HP.
