Quick Details
-
WIFI:
-
NO
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bosslyn
-
Model Number:
-
BL1430P
-
AC outlets quantity:
-
0
-
Color:
-
Black White
-
Back Cover:
-
Thermoplastic
-
Pole:
-
3
-
Wire:
-
4
-
Body Material:
-
Super Tough Nylon
-
Assembly Screws:
-
Steel, Zinc Plated
-
Terminal Screws:
-
Brass
-
Voltage:
-
125V/250V
Quick Details
-
Rated Voltage:
-
125/250Volt
-
Rated Current:
-
30Amp
-
Application:
-
Commercial
-
WIFI:
-
NO
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bosslyn
-
Model Number:
-
BL1430P
-
AC outlets quantity:
-
0
-
Color:
-
Black White
-
Back Cover:
-
Thermoplastic
-
Pole:
-
3
-
Wire:
-
4
-
Body Material:
-
Super Tough Nylon
-
Assembly Screws:
-
Steel, Zinc Plated
-
Terminal Screws:
-
Brass
-
Voltage:
-
125V/250V
NEMA L14-30P Generator Plug, 30 Amp 4-Prong Industrial Grade Locking Male Plug
Description of NEMA L1430P PLUG:
| Model | BL1430P |
| Voltage | 125/250V |
| Current | 30A |
| Color | Black |
| Certification | UL cULs E500807 |
AC Horsepower Ratings
Horsepower Rating: 2 HP
Electrical Specifications
Grounding: Grounding
Amperage:30Amp
Voltage: 125/250Volt
NEMA:
NEMA
BL1430
P
Pole: 3
Wire: 4
Dielectric Voltage: Withstands 2000V per UL498
Current Interrupting: Certified for current interrupting at full rated current
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Environmental Specifications
Flammability: Rated V-2 per UL94
Operating Temperature: -40C to 60C
Material Specifications
Body Material: Super Tough Nylon
Back Cover: Thermoplastic
Wire Module: Nylon
Cord-Clamp: Nylon
Clamp Insert: Nylon
Blades/Contacts: Solid Brass
Terminal Screws: Brass
Assembly Screws: Steel, Zinc Plated
Color: Black-White
Mechanical Specifications
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 18-10 AWG
Product ID: Ratings are permanently marked on device
Cord Range: .385 - .780
Wire Gauge: 16-10 AWG
Standards and Certifications: UL498

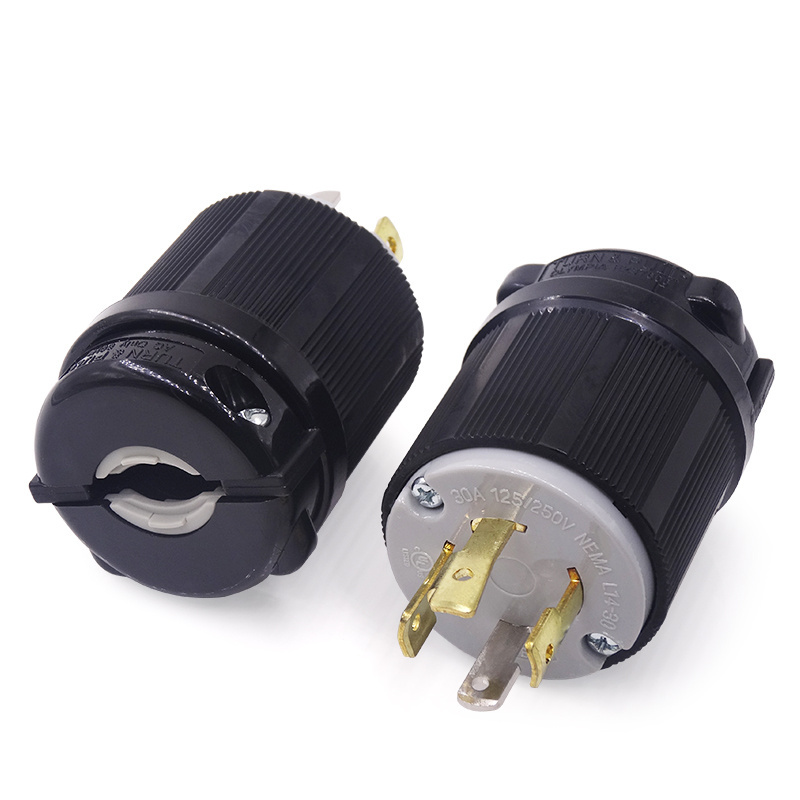

Pictures of NEMABL1430P PLUG:
