Quick Details
-
Brand Name:
-
HUAHONG
-
Dimension(L*W*H):
-
630X380X630
-
Weight:
-
600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
discharge size:
-
≤20mm
-
input size:
-
≤200
-
Operation:
-
simple and convenient
-
Test:
-
supply
-
Advantage:
-
saving energy
-
Installation:
-
offer technical support
-
service:
-
good
-
quality:
-
guarantee
Quick Details
-
Application:
-
rock,limestone
-
Capacity(t/h):
-
1-5
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HUAHONG
-
Dimension(L*W*H):
-
630X380X630
-
Weight:
-
600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
discharge size:
-
≤20mm
-
input size:
-
≤200
-
Operation:
-
simple and convenient
-
Test:
-
supply
-
Advantage:
-
saving energy
-
Installation:
-
offer technical support
-
service:
-
good
-
quality:
-
guarantee

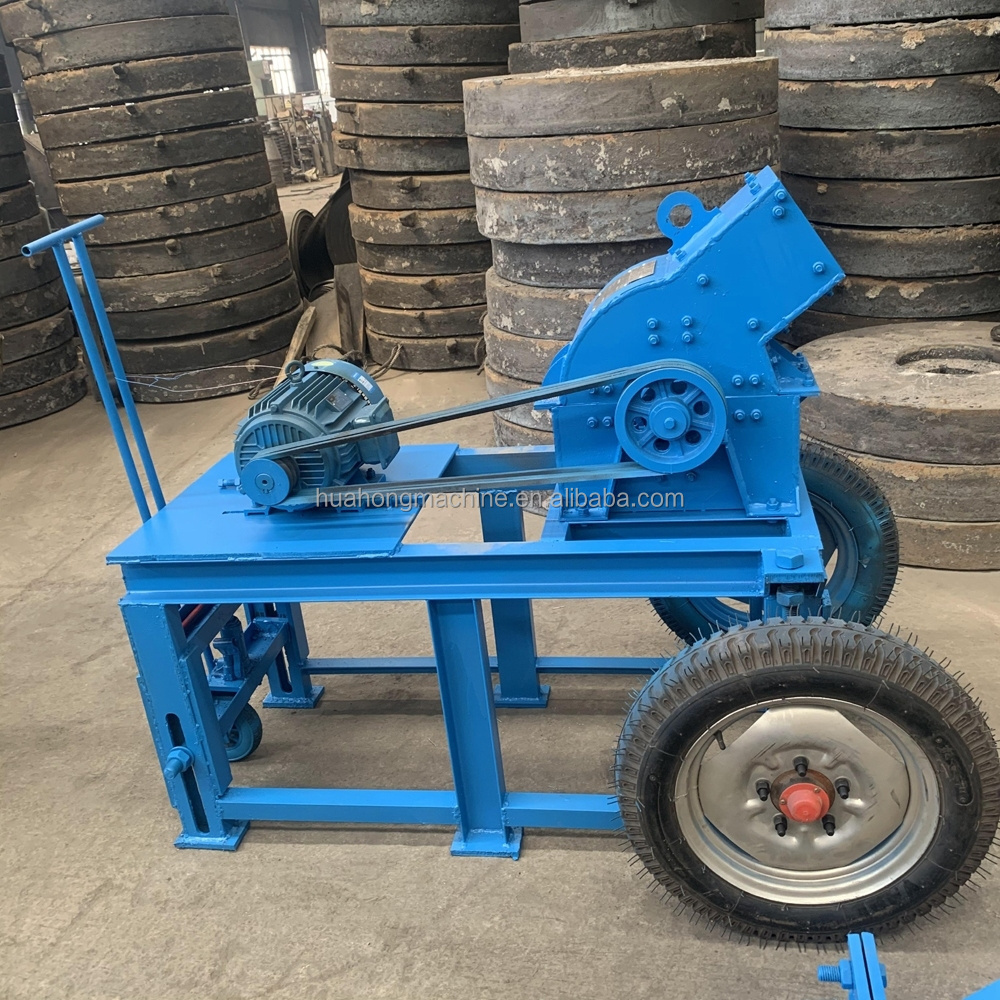

Small portable rock breaking machine
rock Breaking Machine Application:
rock breaking machine is suitable for mid-hard and light erosive materials, whose pressure resistance is no more than 100Mpa and humidity lower than 15%, such as coal, salt, gypsum, limestone and similar feeding materials. Also the rock breaking crusher be used in crushing fiber structure, flexibility and tenacity strong broken wood, paper or broken by recycling wastes of asbestos and cement asbestos fiber etc.
rock Breaking Machine Working Principle:
The main working part of rock breaking machine is rotors with hammers. The rotors consist of main shaft, disk, eccentric shaft and hammers. The motor drives the rotors to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by the high-speed hammer to small size. There is a screening plate under the rotor, so that materials with size smaller than the screen mesh will be screened out and others are left to be further crushing until reach the standard size. The size of the final product can be adjusted by changing the screening plate. The gap between the rotors and the screening plate can also be adjusted according to different requirement.
rock breaking machine technical parameter:
|
Specifications
|
Feeding Size
(mm) |
Discharging size
(mm) |
Capacity
(m³/h) |
Motor power
(kw) |
Total weight
(t) |
Dimensions
(L×W×H) (mm) |
|
PCΦ300×200
|
≤80
|
≤20
|
1-5
|
5.5
|
0.6
|
630X380X630
|
|
PCΦ400×300
|
≤100
|
≤25
|
5-10
|
11
|
0.8
|
900×670×860
|
|
PCΦ600×400
|
≤120
|
≤30
|
10-22
|
22
|
2.26
|
1200×1050×1200
|
|
PCΦ800×600
|
≤250
|
≤35
|
18-40
|
55
|
4.8
|
1310×1180×1310
|
|
PCΦ1000×800
|
≤350
|
≤35
|
25-50
|
75
|
5.9
|
1600×1390×1575
|
|
PCΦ1000×1000
|
≤350
|
≤35
|
30-55
|
90
|
8
|
1800×1590×1775
|
|
PCΦ1250×1250
|
≤350
|
≤35
|
35-65
|
132
|
14
|
2060×1600×1890
|
|
PCΦ1400×1400
|
≤350
|
≤35
|
50-100
|
280
|
32
|
2365×1870×2220
|
|
PCΦ1600×1600
|
≤350
|
≤35
|
100-150
|
480
|
37.5
|
3050×2850×2800
|
