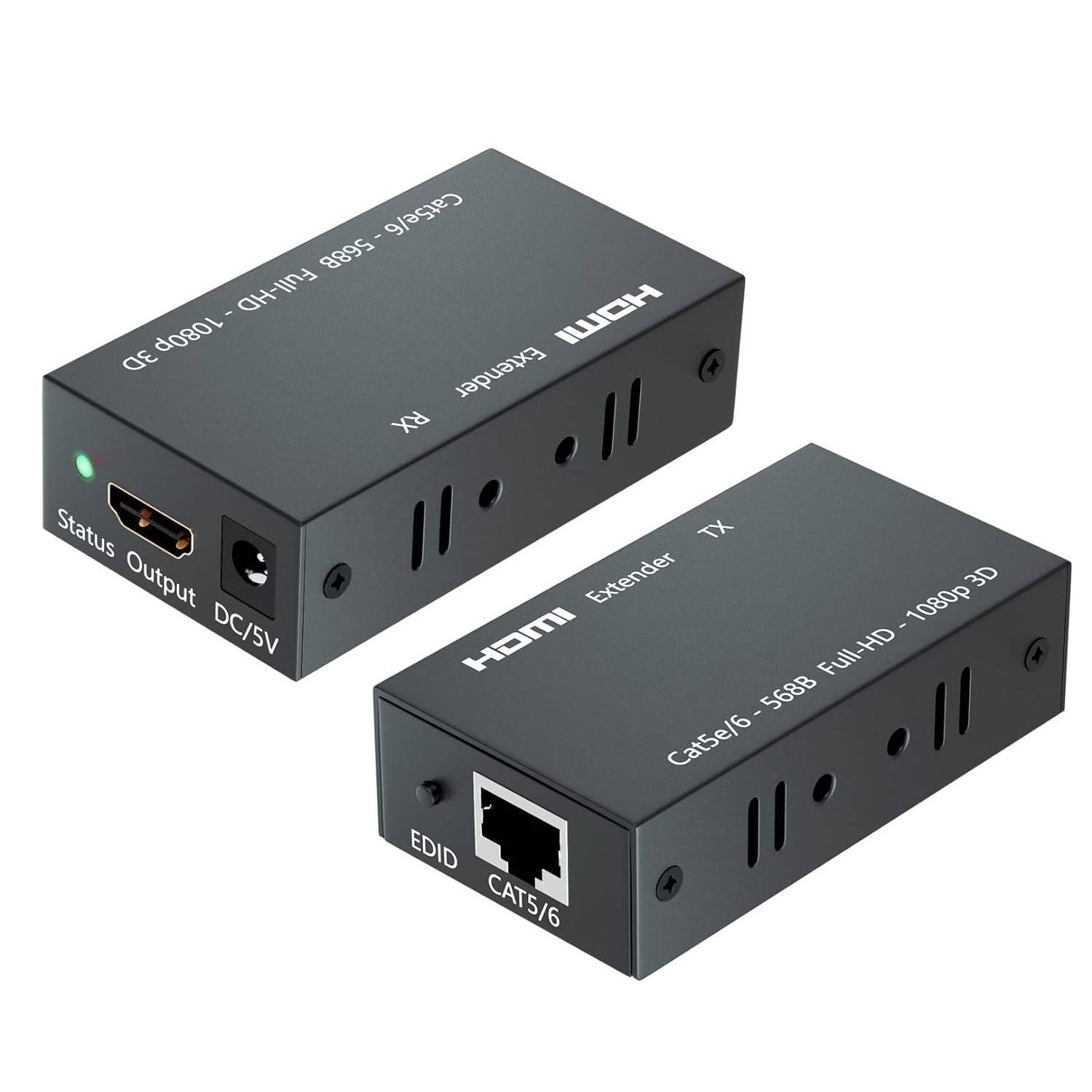

SY HDMI Extender 1080P Transmitter Receiver Up to 60 Meters HDMI extender over ethernet 60m hdmi extender
SY HDMI Extender 1080P Transmitter Receiver Up to 60 Meters HDMI extender over ethernet 60m hdmi extender
SY HDMI Extender 1080P Transmitter Receiver Up to 60 Meters HDMI extender over ethernet 60m hdmi extender
SY HDMI Extender 1080P Transmitter Receiver Up to 60 Meters HDMI extender over ethernet 60m hdmi extender
SY HDMI Extender 1080P Transmitter Receiver Up to 60 Meters HDMI extender over ethernet 60m hdmi extender
SY HDMI Extender 1080P Transmitter Receiver Up to 60 Meters HDMI extender over ethernet 60m hdmi extender
SY HDMI Extender 1080P Transmitter Receiver Up to 60 Meters HDMI extender over ethernet 60m hdmi extender
SY HDMI Extender 1080P Transmitter Receiver Up to 60 Meters HDMI extender over ethernet 60m hdmi extender

SY HDMI Extender 1080P Transmitter Receiver Up to 60 Meters HDMI extender over ethernet 60m hdmi extender

FOB Reference Price: Get Latest Price
≥2 Pieces
US $5.56
≥100 Pieces
US $5
≥1000 Pieces
US $4.8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Output:
hdmi
Feature:
Plug-and-play
Type:
Hdmi Extender
Color:
Black
warranty:
1year
certifications:
ce/fcc/rech/rohs
Resolution:
1080P@30Hz
Carton:
30pcs/ 13kg

Quick Details

Brand Name:
SYONG
Model Number:
S-EXT-HD-60M
Place of Origin:
Guangdong, China
Output:
hdmi
Feature:
Plug-and-play
Type:
Hdmi Extender
Color:
Black
warranty:
1year
certifications:
ce/fcc/rech/rohs
Resolution:
1080P@30Hz
Carton:
30pcs/ 13kg
Product Description

  • Product Performance Description

Hdmi Extender over Cat 6 6e 7 8 Cable

This HDMI Extender extends HDMI signal up to 150 meters(492ft) over single CAT5e/6/7 ethernet cable, gives you a solution to
transmit HDMI signals over ethernet cable so that other projects and home wiring more stable and efficient, significantly and
saves your cost.
Details Images
Lossless Transmission
This HDMI ethernet extender transmits HDMI signals without singal loss via Ethernet cable. Zero latency, no loss of quality.
1080P High-definition Large Screen

This HDMI to RJ45 and RJ45 to HDMI extender supports maximum HDMI resolution up to 1080P@60hz. Audio format supports DTS-HD/D o l
b y-true HD/DTS/D o l b y-AC3/DSD.
Audio Video Synchronous Transmission

Automatically decodes digital audio signals for analog audio adaptation to display devices, and the resolution is automatically adjusted to the corresponding effect.
Handy & Sturdy
High quality metal housing design with integrated cooling holes offer efficient heat dissipation ensuring the system stability during long hours of operation. Sturdy metal enclosure minimizes EMI/RFI noise interference.
Plug and Play

No loss of quality and easy to install. No driver needed. Just plug and play.
Wide Application

arious scenarios can be used for home theater, video conferencing, security monitoring and television broadcasting. The scope of
application is wide.
Product Usage

    • Product Usage

    • Introduction


This HDMI Transmitter and Receiver extends HDMI digital video & audio signals simultaneously over single CAT5e/6/7 ethernet lan cable, the maximum transmission distance up to at least 492ft(150 meters). No drivers needed. Just plug and play.


Related Products
Packing&Shipping


  • WHAT YOU GET



1. HDMI transmitter and receiver
2. 5V DC Power Supply(2 pcs)
3. User Manual

Warranty:
This HDMI Extender provides 12 months warranty & friendly customer service.
Product Paramenters
Brand
SYONG
Name
60M HDMI OVER ETHERNET CABLE EXTENDER
Input Ports
(1) TX – 1 x HDMI In
(2) RX – 1 x HDMI | 1 x RJ-45
Output Ports
(1) TX – 1 x HDMI Out (Pass-thru) | 1 x RJ-45
(2) RX – 1 x HDMI Out
Supported Resolutions
Up to 1080P@60Hz
Transmission Distance
150m / 492ft over CAT6 Solid Copper
Supported Audio Formats
PCM, LPCM, Dolby Digital, DTS
Power Supply
NO
Dimensions
85*35*17MM
Material
PVC outer cover material
Interface process
Gold plated, nickel plated
HDMI cable length
AWG26 HDMI cable up to 8.0 meters(26 ft)
Transmission bandwidth
1.65Gbps
Customization

Logo Customization

Package Customization

Port Customization

Port Color Customization

Product Logo Customization

ALL Service
