- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ACSOON
-
Model Number:
-
AF10-330100
-
Weight:
-
350KG
-
Power factor:
-
0.8
-
Frequency:
-
50Hz/60Hz
-
Capacity:
-
100KVA
-
Output Voltage:
-
380V±5%(customized)
-
Efficiency:
-
>98%
-
Response time:
-
≤0.05s
-
Power:
-
80KW
-
Protections:
-
Over voltage, over load and short circuit protections
-
Theory:
-
Servo motor / SCR
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
ACSOON
-
Model Number:
-
AF10-330100
-
Weight:
-
350KG
-
Power factor:
-
0.8
-
Frequency:
-
50Hz/60Hz
-
Capacity:
-
100KVA
-
Output Voltage:
-
380V±5%(customized)
-
Efficiency:
-
>98%
-
Response time:
-
≤0.05s
-
Power:
-
80KW
-
Protections:
-
Over voltage, over load and short circuit protections
-
Theory:
-
Servo motor / SCR
Products Description

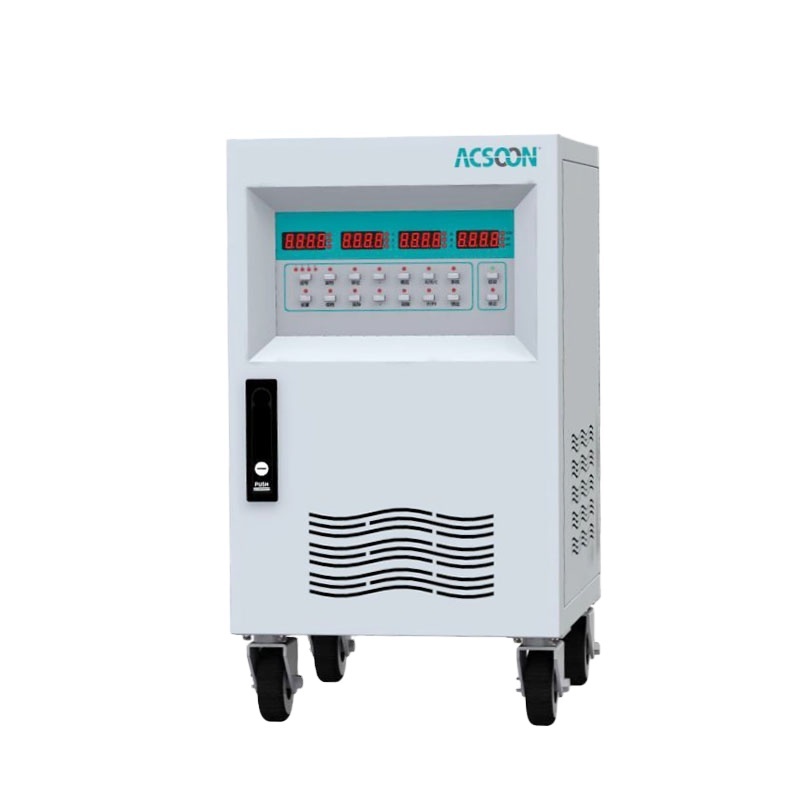

ACSOON AF10 series intelligent digital AC voltage stabilizer is an energy-saving product specially developed to stabilize the AC voltage, can automatically ensure the stability of the output voltage. It has the characteristics of large capacity, high efficiency, wide voltage range. It could be used to connect with any type of loads, included c
apacitive loads and inductive loads
. equipped with are over-voltage, over-current and short circuit protections.
|
Model
|
|
AF10-330100
|
|
|||
|
Capacity
|
|
100KVA
|
|
|||
|
Input
|
|
|
|
|||
|
Voltage
|
304V-456V（customized）
|
|
|
|||
|
Power Factor
|
≥0.8
|
|
|
|||
|
Output
|
|
|
|
|||
|
Voltage
|
380V± 2%(customized)
|
|
|
|||
|
Voltage Accuracy
|
±1%
|
|
|
|||
|
Frequency
|
50HZ/60HZ
|
|
|
|||
|
Response time
|
≤0.05s
|
|
|
|||
|
Waveform distortion
|
|
N/A
|
|
|||
|
Withstand voltage
|
The whole machine is 2000VAC/min to the ground, no breakdown, no arcing phenomenon.
|
|
|
|||
|
Efficiency
|
>98%
|
|
|
|||
|
Insulation resistance
|
≥2MΩ（Equipment to ground）
|
|
|
|||
|
Working Environment
|
|
|
|
|||
|
Noise
|
<60dB
|
Humidity
|
10%-90% (non-condensing)
|
|||
|
Working way
|
Can work continuously unattended for a long time
|
|
|
|||
|
Protection
|
|
|
|
|||
|
Over-voltage protection
|
|
Under-voltage protection
|
|
|||
|
Output short circuit protection
|
|
Bypass protection
|
|
|||
