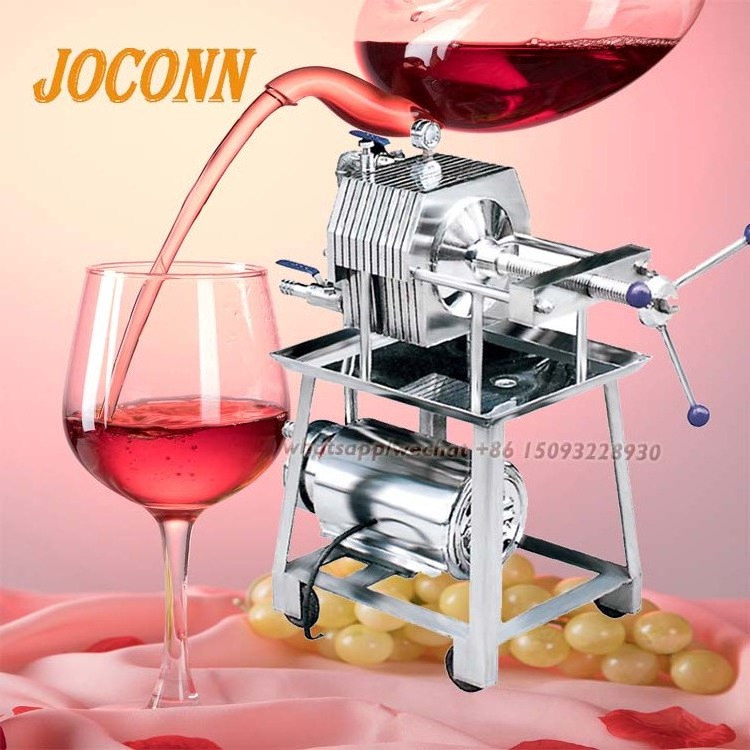

Automatic Oil Filter Press Machine For Coconut Oil Filter Machine Plate Frame Wine Filter

Automatic Oil Filter Press Machine For Coconut Oil Filter Machine Plate Frame Wine Filter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: JOCONN

Filter material:: High-quality Filter Paper

Application:: Solid Liquid Separation

Feature:: Excellent Filtration

Filter Type:: plate and frame filter

Keyword:: plate and frame filter for wine oil

Advantage:: High Filtration Accuracy

Model:: Customied

Material:: SS304

Quick Details

Weight (KG):: 150

Marketing Type:: New Product 2022

Place of Origin:: Henan, China

Brand Name:: JOCONN

Filter material:: High-quality Filter Paper

Application:: Solid Liquid Separation

Feature:: Excellent Filtration

Filter Type:: plate and frame filter

Keyword:: plate and frame filter for wine oil

Advantage:: High Filtration Accuracy

Model:: Customied

Material:: SS304

Automatic Oil Filter Press Machine For Coconut Oil Filter Machine Plate Frame Wine Filter

WhatsApp /wechat +86 15093228930

Product Description

1	The multi-layer plate and frame filter is suitable for liquids with a concentration of less than 50% and low viscosity and less slag content. It is sealed and filtered to meet the requirements of fine filtration and semi-fine filtration such as purification and clarification.
2	The multi-layer plate and frame filter directly selects the microporous membrane, which can directly achieve the purpose of sterile filtration without the microporous membrane filter.
3	This filter machine has a large filtering area, large flow rate and wide application range, so it has a wide range of uses in the pharmaceutical, chemical, and food industries.

Working Principle

Use a pump to send the suspension into each closed filter chamber of the plate and frame filter. Under the action of the working pressure, the filtrate passes through the filter membrane or other filter materials and is discharged through the liquid outlet, and the filter residue is left in the frame to form a cake residue. , So as to achieve solid-liquid separation.

Parameters

Model	JC- 200	JC- 400
Capacity	300-400L/Hr(with pump)	2000L/Hr(without pump)
Filtering area(m2)	0.84	2.9
Filter board	200×200(mm) 21 pcs	*400400mm 21pcs**
Max. Working Pressure	0.4(MPa)	0.4(MPa)
Max.Pressure distance	0.1(MPa)	0.1(MPa)
Machine(kg)	157 kg	400kg
Material	SS 304	SS 304
