Quick Details
-
Main body shell:
-
Zinc die cast housing
-
Frequency:
-
950-2150MHz
-
Gain:
-
20dB
-
Slope compensation:
-
6dB
-
Return Loss::
-
12dB
-
Working voltage:
-
DC10-20V
-
Power pass:
-
500mA
-
Certification:
-
CE RoHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EMC
-
Model Number:
-
EA2012BS
-
Main body shell:
-
Zinc die cast housing
-
Frequency:
-
950-2150MHz
-
Gain:
-
20dB
-
Slope compensation:
-
6dB
-
Return Loss::
-
12dB
-
Working voltage:
-
DC10-20V
-
Power pass:
-
500mA
-
Certification:
-
CE RoHS

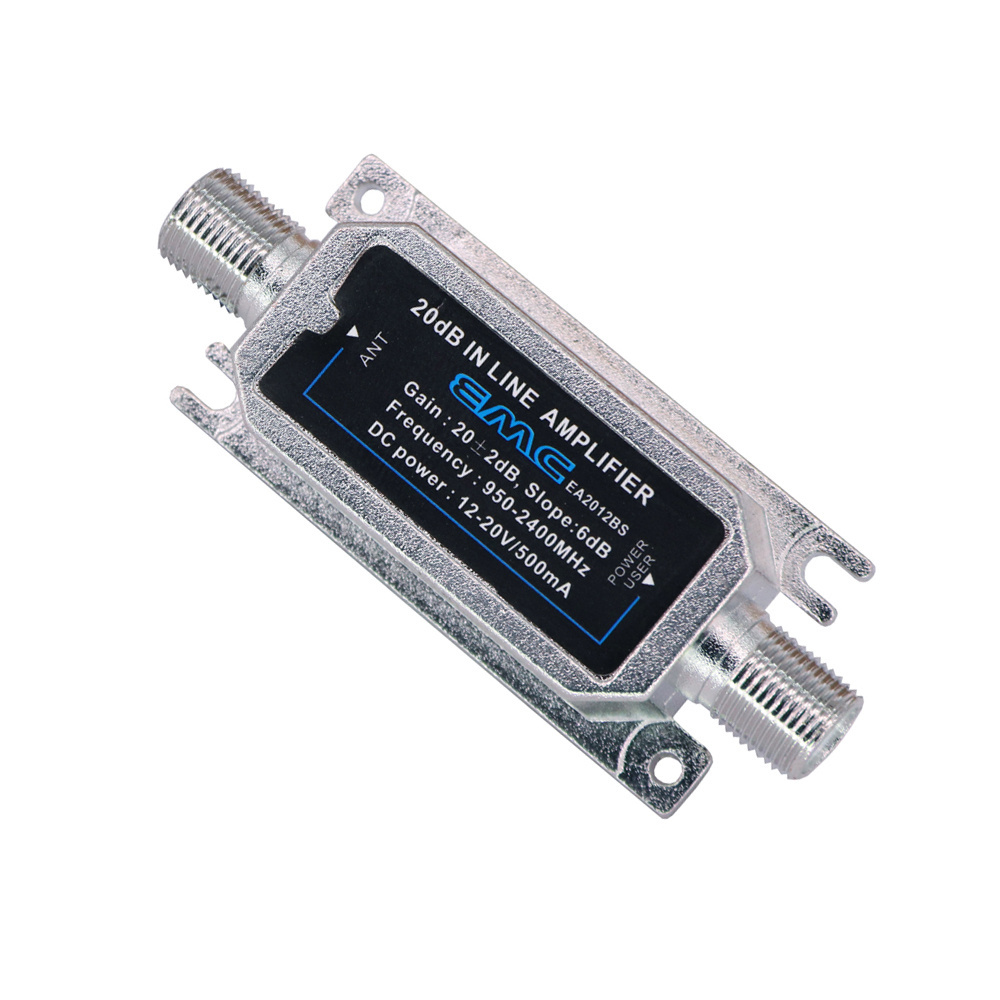

950-2150MHz TV slope compensation amplifier TV IN LINE AMPLIFIER
Features:
1.Sat band line amplifiers,Frequency 950-2150MHz
2.Lightning protection circuit design
3.Design of Slope compensation circuit
4.Zinc die cast housing. Solder seal back cover
5.Design for in-line boosting SAT IF,4G and 5G anti-interference
6.Powered by the receiver via coaxial cable
7.500mA power pass for LNB operation requirement
Specifications:
| Product model | EA2012BS |
| Frequency Range: | 950-2150MHz |
| Gain | 20 ±2dB |
| Slope compensation | 6dB |
| Return loss | 12dB |
| DC Current Consumption: | 30(mA) |
| DC power pass : | 500mA |
| Working Voltage: | 12-20(V) |
| Working temperature: | -40~80 (℃) |
| Product size: | 27X67X16mm |
| Packing: | 200PCS/CTN (40x19x28 CM) |
Our factory series of similar products
Trade patterns:
1.Normal lead time: 3days for sample order;10~30 days for production order.
2.Payment: T/T,
3.DHL/ Fedex/ UPS/ TNT/ EMS /Air shipping/ Sea shipping is available
4.Shipping port: Guangzhou/ ShenZhen/ ZhuHai.
5.Payment condition: 30% before production, 70% before delivery.
