Quick Details
-
Brand Name:
-
Dokio
-
Model Number:
-
DFSP-50M
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
690* 500mm
-
N.W.:
-
0.6KGS
-
G.W.:
-
1.0KGS
-
OEM Order:
-
Acceptable
-
Junction box:
-
IP67 Rated
-
Cell Type:
-
Monocrystalline
-
Connector:
-
PV Compatible Connector
-
Brand:
-
DOKIO
-
Cell efficiency:
-
17.6%~18.9%
-
Cell Array:
-
4*9
-
Cable:
-
depends on customer
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
Flexible
-
Warranty:
-
12 months
-
Brand Name:
-
Dokio
-
Model Number:
-
DFSP-50M
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
690* 500mm
-
N.W.:
-
0.6KGS
-
G.W.:
-
1.0KGS
-
OEM Order:
-
Acceptable
-
Junction box:
-
IP67 Rated
-
Cell Type:
-
Monocrystalline
-
Connector:
-
PV Compatible Connector
-
Brand:
-
DOKIO
-
Cell efficiency:
-
17.6%~18.9%
-
Cell Array:
-
4*9
-
Cable:
-
depends on customer

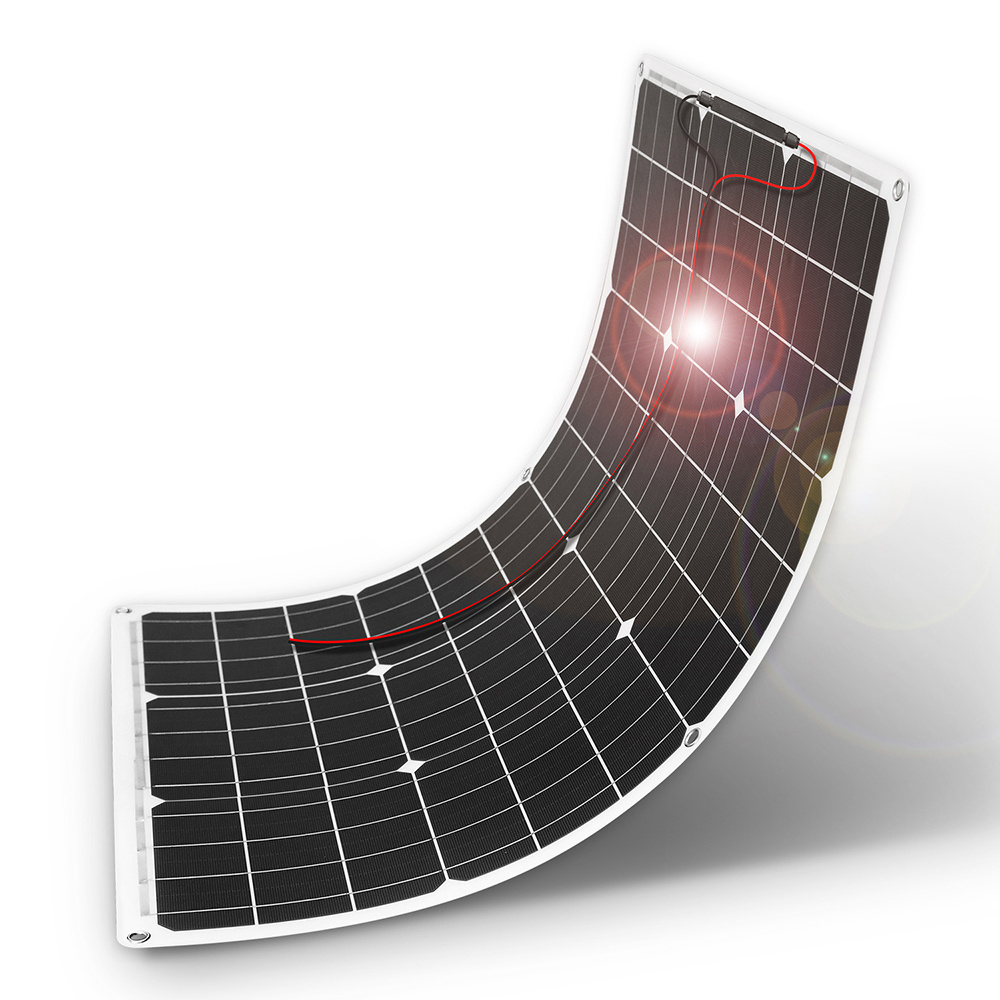

50w Semi-Flexible Solar Panel Specification
|
Model
|
DFSP-50M
|
|
Ratin power (Pm)
|
50W
|
| Power Tolearance | ±3% |
|
Cells
|
Monosilicon 156x20 mm
|
| Efficiency of cell | ≥17.80% |
|
Number of cells
|
36(4x9) series connected |
| Rated current (Imp) | 2.77A |
| Rated voltage(Vmp) | 18.00V |
| Short circuit Current(Isc) | 3.02A |
| Open circuit Voltage(Voc) | 22.50V |
| Size |
690(L) x500(W) mm
|
|
Weight
|
0.5Kgs
|
|
Maximum voltage
|
600V DC
|
|
Operating temperature
|
-40°C~ 85
°C
|
|
Nominal Operating Cell Temperature
|
45
±2 °C
|
|
Temp.Coefficient of Isc (TK Isc)
|
0.06%/
°C
|
|
Temp.Coefficient of Voc (TK Voc)
|
-0.34%/
°C
|
|
Temp.Coefficient of Voc (TK Pmax)
|
-0.42%/
°C
|
