Quick Details
-
Length of Axis (mm):
-
2 mm
-
Center Height (mm):
-
10 mm
-
Max.Transformer Capacity(kVA):
-
1 kVA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minder
-
Motor Power (kw):
-
10
-
Weight (KG):
-
20
-
Dimension(L*W*H):
-
50*50*60cm
-
Wire Diameter Range (mm):
-
0.1 - 2 mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Principal axis:
-
1 axis
-
Controller:
-
SCM
-
Maximum rpm:
-
0-1500 rpm
-
Spindle motor:
-
370W AC motor
-
Winding displacement motor:
-
Stepper motor
-
Storage ring size:
-
4 inches
-
Suitable outer diameter:
-
8-40mm
-
Weight:
-
50kg
Quick Details
-
Max. Load (KG):
-
1 KG
-
Marketing Type:
-
New Product 2022
-
Coil Type:
-
round
-
Length of Axis (mm):
-
2 mm
-
Center Height (mm):
-
10 mm
-
Max.Transformer Capacity(kVA):
-
1 kVA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minder
-
Motor Power (kw):
-
10
-
Weight (KG):
-
20
-
Dimension(L*W*H):
-
50*50*60cm
-
Wire Diameter Range (mm):
-
0.1 - 2 mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Principal axis:
-
1 axis
-
Controller:
-
SCM
-
Maximum rpm:
-
0-1500 rpm
-
Spindle motor:
-
370W AC motor
-
Winding displacement motor:
-
Stepper motor
-
Storage ring size:
-
4 inches
-
Suitable outer diameter:
-
8-40mm
-
Weight:
-
50kg

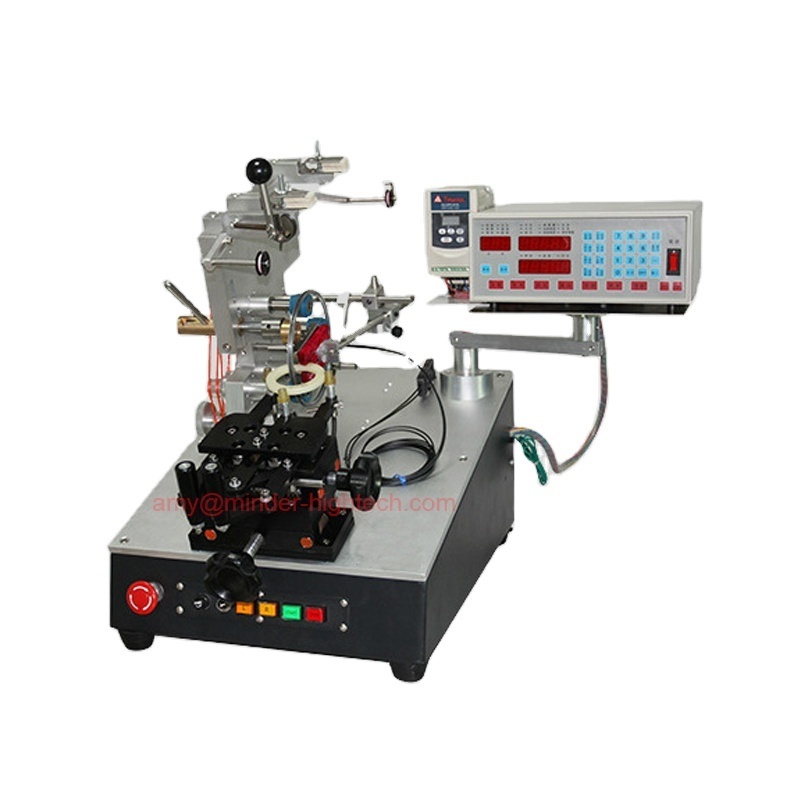

Product description
1, Adopt Taiwan controller and inverter drive, energy saving, low noise, less maintenance, long life, etc.
2, Multi-funciton microcomputer design, easy data setting, shutdown can save data for more than one year.
3, Line length can be set
4, Edit parameters according to product(inner diameter, outer diameter, height, wire diameter, turn line
5, The cable mode can be reversed and the angle is also set.
6, 0~999 group step setting is easy, the storage line and winding speed can be set separately, and different cable direction, winding angle and segment angle can be selected.
Application
Widely used in small and medium-sized transformers, toroidal inductors, toroidal transformers, communication coils, etc.
Technical Parameters
|
Model |
MD-400 |
Principal axis |
1 axis |
|
Controller |
SCM |
Maximum rpm |
0-1500 rpm |
|
Spindle motor |
370W AC motor |
Winding displacement motor |
Stepper motor |
|
Storage ring size |
4 inches |
Suitable outer diameter |
8-40mm |
|
Applicable wire diameter |
0.025-0.2mm |
voltage |
220V |
|
weight |
50kg |
dimension |
600*650*650mm |
