Quick Details
-
Function:
-
Automatic feeding,nocthing and bending
-
Applical material:
-
Flat aluminum,stainless steel,galvanized iron
-
Material thickness:
-
0.3-1.2mm
-
Material width:
-
20-150mm
-
Motor:
-
Servo and Stepper
-
Bending radius:
-
≥7mm
-
Software:
-
Leetro
-
Voltage:
-
220V50HZ1P
-
Weight:
-
450Kgs
-
Size:
-
1850mm*880mm*1300mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DAHE
-
Weight (KG):
-
385
-
Function:
-
Automatic feeding,nocthing and bending
-
Applical material:
-
Flat aluminum,stainless steel,galvanized iron
-
Material thickness:
-
0.3-1.2mm
-
Material width:
-
20-150mm
-
Motor:
-
Servo and Stepper
-
Bending radius:
-
≥7mm
-
Software:
-
Leetro
-
Voltage:
-
220V50HZ1P
-
Weight:
-
450Kgs
-
Size:
-
1850mm*880mm*1300mm

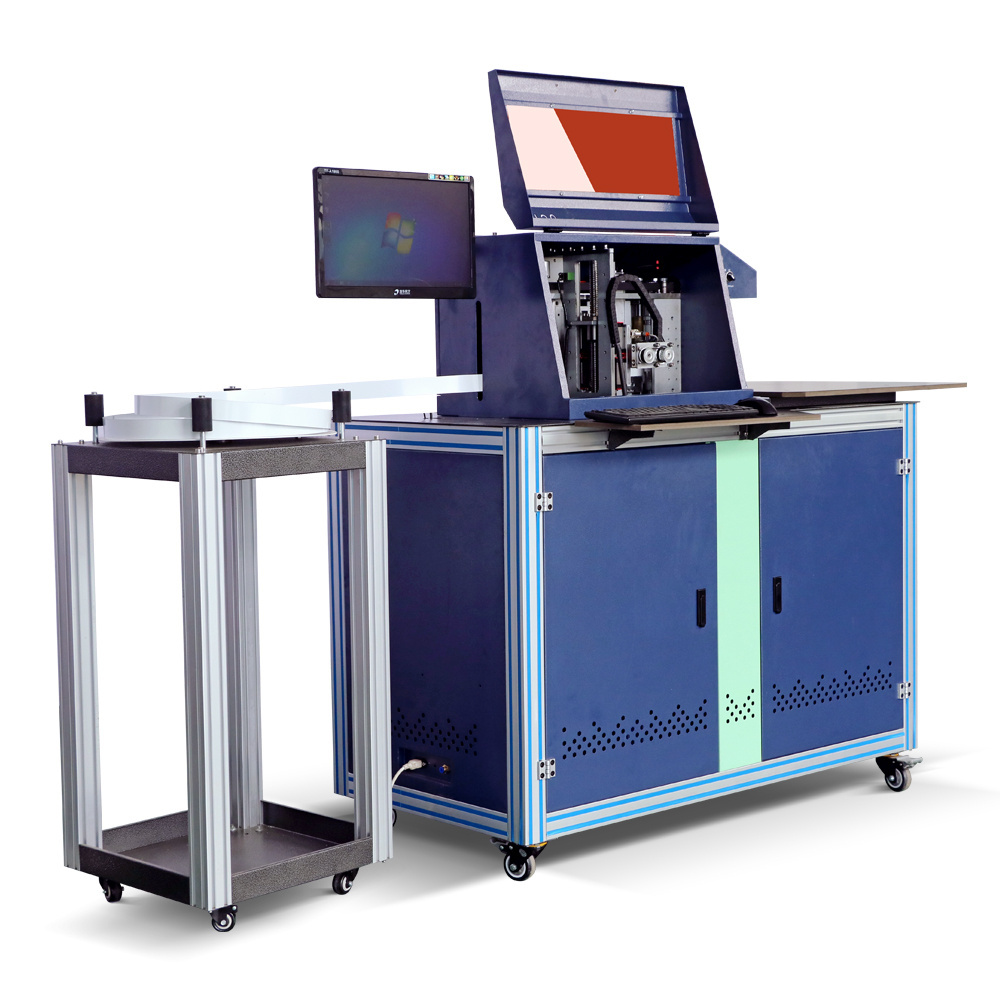

DAHE CNC Acrylic heat channel letter bending machine price
(Whatsapp/wechat:0086-18866779656)
It is one fully automatic channel letter fabrication machine in sign making industry.
Available Materials: Flat aluminum,Aluminum profile,Channelume,Stainless Steel,Galvanized Iron,Steel etc.
Application: Trimless channel letter,Liquid acrylic channel letter,Aluminum channel letter,Aluminum profile channel letter,Aluminum epoxy channel letter,Stainless steel channel letter,Punching channel letter.
Machine Video:
https://youtu.be/BYbCdaVuQxU
MACHINE FEATURES:
1. Two sets cutting system,bending tool and running software.
2. Automatically adjust cutting depth by software(New Technology owned by our company only)
3. Encoder to control the feeding length. More accurate.
4. One switch transformation function between blade cutting and planner cutting.
5. One switch transformation between roller clamp and release. This function helps operator to load and unload material easily.
6.Adopt imported square guide rail and high-precision ball screw to perform the cutting depth adjustment automatization and intelligence.
7.Software more functional: compensation on straight line, arc, inline, outline, start and end location more functional; Bender machine and router perfect match.
8. Multiple function: almost running all metal profile in sign industry. SS, Copper, Iron, galvanized sheet,
aluminum; material coil, extrusion profile, Channelume, Korea Profile and other custom-made material.
9. Can read AI, DXF, PLT format.
MACHINE PARAMETER:
| Function | Automatic feeding,notching and bending |
| Applicable Material | Aluminum,Stainless steel,Galvanized iron |
| Material Thickness |
Aluminum:0.3-1.2mm Stainless steel,Galvanized iron:0.3-1.0mm |
| Material Height |
Aluminum:≤150mm Stainless steel,Galvanized iron:≤100mm |
| Servo Motor Quantity | 2 |
| Stepper Motor Quantity | 4 |
| Direct Current Motor Quantity | 1 |
| Min Bending Radius | 7mm |
| Machine Power | 2.5KW/220V |
| Package Size | 1700*840*1650mm |
| Machine Weight | 380Kgs |
MACHINE DETAILS:
