Quick Details
-
Ceiling Lightings:
-
18 groups of 4x 18W each, total 1296W
-
Side Lightings:
-
12 groups, each group of 2x18w, a total of 432w
-
Brightness:
-
≥1000 LUX
-
Fan Capacity:
-
50000m³/h
-
Max. Drying Temperature:
-
80 °C
-
Heating Exchange Capacity:
-
8 groups, each group 9KW , a total of 72KW
-
Heating time:
-
10-15 minutes
-
Usage:
-
Painting
Quick Details
-
External Size:
-
19240*5000*5000mm, 19240*5000*H5000mm(including the rear of the fan unit)
-
Internal Size:
-
18000 x 4900x 4500 mm, 18000 x 4900x 4500 mm
-
Place of Origin:
-
China
-
Ceiling Lightings:
-
18 groups of 4x 18W each, total 1296W
-
Side Lightings:
-
12 groups, each group of 2x18w, a total of 432w
-
Brightness:
-
≥1000 LUX
-
Fan Capacity:
-
50000m³/h
-
Max. Drying Temperature:
-
80 °C
-
Heating Exchange Capacity:
-
8 groups, each group 9KW , a total of 72KW
-
Heating time:
-
10-15 minutes
-
Usage:
-
Painting

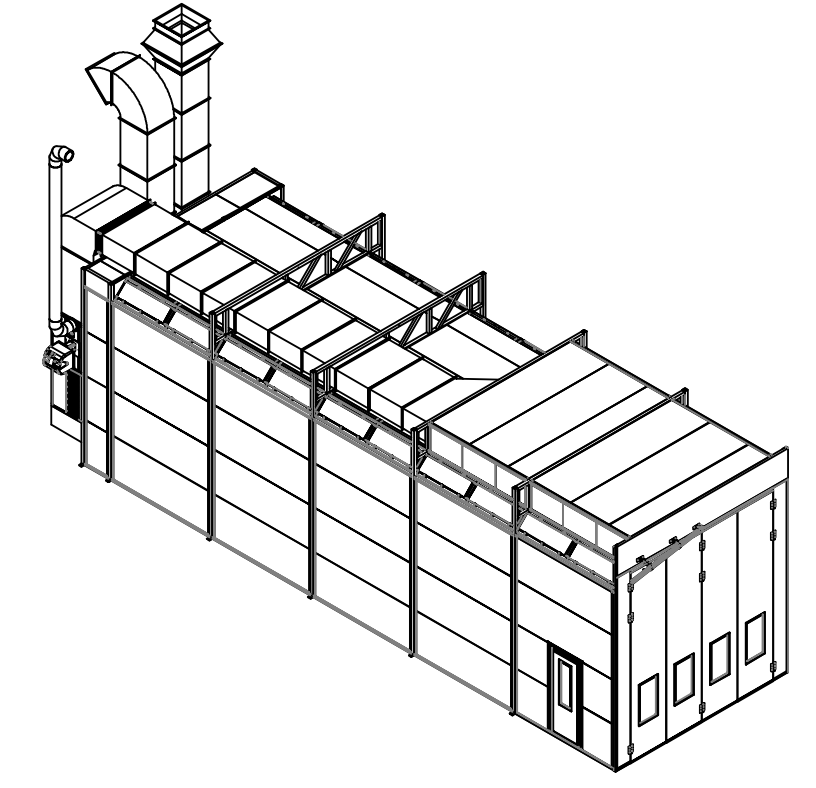

Product Description
Specification
|
-Internal Size(L×B×H)
|
18000 x 4900x 4500 mm
|
|
|
-External Size(L×B×H)
|
19240*5000*H5000mm(including the rear of the fan unit)
|
|
|
Wall and Door
|
|
|
|
- Steel Wall
|
Six-span gantry, the wall panels are machine-composite rock wool composite sandwich panels. Filled with 80K rock wool, gray and
white total thickness T=50mm |
|
|
- Roof Panal
|
The top sealing plate is folded with galvanized sheet Primary color of galvanized sheet
|
|
|
- 4Folded Entrance Door With Safety Glass Window
|
1 set 40% off, door size is 4000*4300mm (W x H) full sheet metal door, tempered glass.
|
|
|
- Operator’s Door With Safety Glass Window
|
1 piece, 800x2000mm (W x H) off-white with pressure lock, tempered glass.
|
|
|
Lighting
|
|
|
|
Ceiling Lightings
|
18 groups of 4x 18W each, total 1296W
|
|
|
Side Lightings
|
12 groups, each group of 2x18w, a total of 432w
|
|
|
- Brightness
|
≥1000 LUX
|
|
|
- Direct Drive Motor (Fresh Air)
|
1 set of 7.5kw intake fan
1 set 7.5kw exhaust fan
One set has a large circulating air door, an aluminum alloy three-way frame
structure, and a 25mm thickness insulation box. |
|
|
- Fan Capacity
|
50000m³/h
|
|
|
- Air Flow Speed
|
Speed No-load wind speed 0.18m/s, loaded wind speed 0.25- 0.35m/s
|
|
|
Heating System
|
|
|
|
- Heating Exchanger
|
Heating wire
|
|
|
- Heating Exchange Capacity
|
8 groups, each group 9KW , a total of 72KW
|
|
|
- Max. Drying Temperature
|
80 °C
|
|
|
- Control system
|
Fully intelligent control, fault alarm, operation indication, one-key setting of paint temperature and time, with pressure control
system. |
|
|
Accept non-standard customization
|
|
|
Details
The door is a set of
4-fold form, the door head plate is made of sheet metal bending compound
, the interior contains a keel frame, and the structure is strong and durable; the door is welded with stainless steel square tubes, and special handles and stainless steel pins are installed inside. All door connections are made of steel. The hinge is made of hinges, and the bolt is connected. The top of both sides of the gate is designed with a track hoisting mechanism to prevent the gate from sagging. The glass of the door is tempered glass.
