Quick Details
-
Place of Origin:
-
Shandong,China
-
Dimension(Long * Breadth * High):
-
6650*2530*3120mm
-
Machine Weight:
-
9000 kg
-
Bucket capacity:
-
1.5CBM&0.35CBM
-
Rated Power:
-
91KW
-
Overall weight:
-
9000kg
-
Rated loading weight:
-
3000kg
-
Backhoe bucket:
-
0.35m³
-
Loader bucket:
-
1.5m³
-
Overall Dimension:
-
6650*2530*3120mm
-
Wheel base:
-
2450mm
-
Wheel tread:
-
2139mm
-
Loader dumping height:
-
3100mm
Quick Details
-
Engine Brand:
-
YUCHAI
-
Power:
-
91KW
-
Brand Name:
-
NIYOWOYO
-
Place of Origin:
-
Shandong,China
-
Dimension(Long * Breadth * High):
-
6650*2530*3120mm
-
Machine Weight:
-
9000 kg
-
Bucket capacity:
-
1.5CBM&0.35CBM
-
Rated Power:
-
91KW
-
Overall weight:
-
9000kg
-
Rated loading weight:
-
3000kg
-
Backhoe bucket:
-
0.35m³
-
Loader bucket:
-
1.5m³
-
Overall Dimension:
-
6650*2530*3120mm
-
Wheel base:
-
2450mm
-
Wheel tread:
-
2139mm
-
Loader dumping height:
-
3100mm
Product Overview

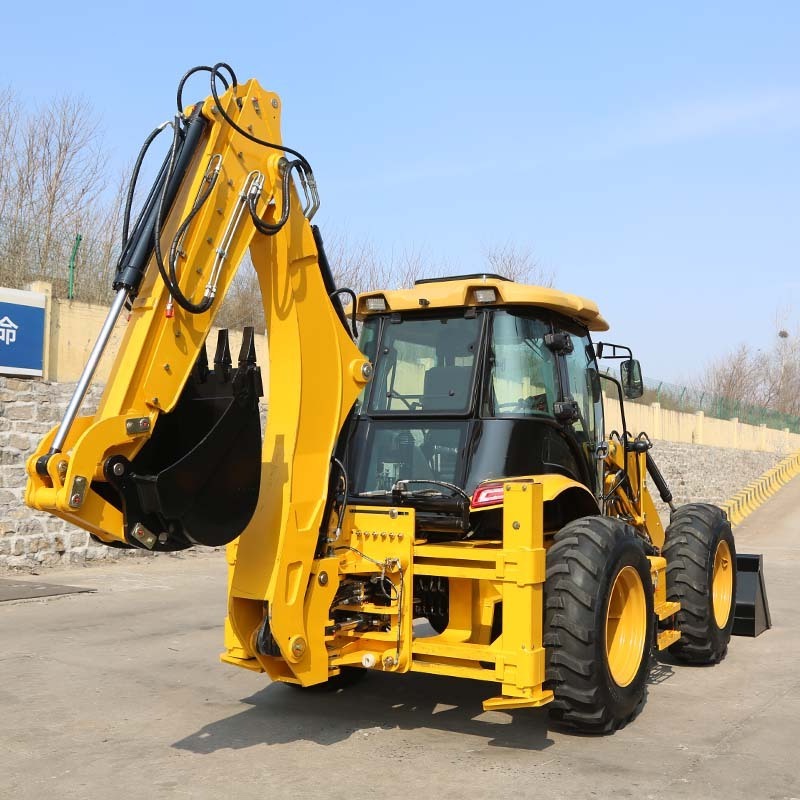

In recent years,NL4CX backhoe loader has been used in many countries and regions.In farms,mines or even some public projects,we can see the backhoe loader working.Our NL4CX backhoe loader can doing loading,transporting,pushing and digging tasks.But there are some people who hope that our product can dig deeper.In order to meet their needs,the excavator end of our backhoe loader can be equipped with telescopic boom which the maximum digging depth is more that 5 meters.The telescopic boom is produced by our factory to provide excellent performance and reliability and its control system is hydraulic.The operator can easily extend the telescopic boom inside the cabin.
Technical Parameters
|
Overall Dimension
|
|
|
|
|
||||
|
1
|
Length(with bucket on ground)
|
|
|
6650mm
|
||||
|
2
|
Overall width（at stabilizer ）
|
|
|
2530mm
|
||||
|
3
|
Load Bucket width
|
|
|
2400mm
|
||||
|
4
|
Height(To the top of the cab)
|
|
|
3120mm
|
||||
|
5
|
Height(To the top of the digging pole)
|
|
|
3940mm
|
||||
|
6
|
Wheel base
|
|
|
2450mm
|
||||
|
7
|
Wheel tread
|
|
|
2139mm
|
||||
|
8
|
Minimum ground clearance
|
|
|
500mm
|
||||
|
Main Loading Technical Specification
|
|
|
|
|
||||
|
1
|
Rated load
|
|
|
3000KG
|
||||
|
2
|
Operating weight
|
|
|
9000kg
|
||||
|
3
|
Rated bucket capacity
|
|
|
1.5m³
|
||||
|
4
|
Dump height
|
|
|
2800mm
|
||||
|
|
Optional dump height
|
|
|
3100mm
|
||||
|
5
|
Dump reach
|
|
|
870mm
|
||||
|
6
|
Outside of bucket
|
|
|
5750mm
|
||||
|
Main Digging Technical Specification
|
|
|
|
|
||||
|
1
|
Rated digging bucket capacity
|
|
|
0.35m³
|
||||
|
2
|
Max. digging depth
|
|
|
4000mm
|
||||
|
|
Optional digging depth(telescopic digging boom)
|
|
|
5000mm
|
||||
|
3
|
Max. digging radius
|
|
|
5345mm
|
||||
|
4
|
Max. dumping height
|
|
|
3740mm
|
||||
|
5
|
Max. Digging Height
|
|
|
5470mm
|
||||
|
6
|
Lifting force at Max. digging radius
|
|
|
1220kg
|
||||
|
7
|
Swing Angle of Excavator Grab
|
|
|
190°
|
||||
|
8
|
Digging Power of Excavator Grab
|
|
|
46.5KN
|
||||
|
9
|
Digging Power of Dipper
|
|
|
31KN
|
||||
|
l Diesel engine
|
|
|
|
|
||||
|
1
|
Model
|
|
YUCHAI YCD4J22T-115
|
|
||||
|
2
|
Type
|
|
Water-cooling
|
|
||||
|
3
|
Rated output
|
|
91 (kW)
|
|
||||
|
4
|
Optional engine
|
|
CUMMINS 4BT3.9-C130
|
|
||||
|
Transmission System
|
|
|
|
|
||||
|
1
|
Gearbox model
|
|
315
|
|
||||
|
2
|
Drive axle type
|
Front axle
|
Steering + drive
|
|
||||
|
|
|
Rear axle
|
Drive
|
|
||||
|
3
|
Gear shift position
|
|
4 F、 4 R
|
|
||||
|
4
|
（F/R）
|
|
F1，5km/h；F2，10km/h；
F3，18km/h；F 4，32km/h； R1，5km/h；R2，10km/h； R3，18km/h；R4，32km/h； |
|
||||
|
The hydraulic system
|
|
|
|
|
||||
|
1
|
Working pump discharge
|
|
63ml/r
|
|
||||
|
2
|
Working pump pressure
|
|
20Mpa
|
|
||||
|
Oil Capacity
|
|
|
|
|
||||
|
1
|
Hydraulic oil tank
|
|
125L
|
|
||||
|
2
|
Diesel fuel tank
|
|
125L
|
|
||||
|
3
|
Breakout Force
|
|
38KN
|
|
||||
|
4
|
Max. Pulling Force
|
|
39KN
|
|
||||
|
Brake system
|
|
|
|
|
||||
|
1
|
Emergency Brake
|
|
Hand and disc brake
|
|
||||
|
2
|
Service Brake
|
|
Air brake, Drum brake
|
|
||||
|
Tier
|
|
|
|
|
||||
|
1
|
Model
|
|
16.9-28
|
|
||||
|
2
|
Pressure
|
|
3.5bar
|
|
||||
1,Equipped with YUCHAI 91KW engine ,which is low noise,low emission,powerful
and reliable.CUMMINS engine can be optional.
2,NL4CX backhoe loader adopts four wheel drive, ws four-wheel steering, power shifting transmission with hydraulic torque converter,hydraulic steering system and joystick pilot control system.
and reliable.CUMMINS engine can be optional.
2,NL4CX backhoe loader adopts four wheel drive, ws four-wheel steering, power shifting transmission with hydraulic torque converter,hydraulic steering system and joystick pilot control system.
3, Adopt laminated safety glass to have a wider and brighter space.
4,The design of wing-spread legs improved excavating stability than other design in rock breaking and deep excavation
4,The design of wing-spread legs improved excavating stability than other design in rock breaking and deep excavation
5,Inside the cabin is wide and bright,adjusted seat with arm-rest is more comfortable to operator.
6,Front and rear control levers are all hydraulic joystick control system which is more smooth operation.
6,Front and rear control levers are all hydraulic joystick control system which is more smooth operation.
Delivery & Check
Before the machines delivered to our clients,our workers will check the machines again to make sure everything is good and clean the machines before delivery.
We will also check the spare parts for the machine one by one to make sure everything will go with the machine together.The spare parts stock will help our clients to do the repair and maintenance job easily.
We will also check the spare parts for the machine one by one to make sure everything will go with the machine together.The spare parts stock will help our clients to do the repair and maintenance job easily.
Workshop View
Exhibition
FAQ
Q1. Are you a manufacturer or trader?
A: We are a manufacturer of construction machines which specialised in producing and exporting Excavator,Wheel Loader,Bulldozer.
Q2. What is your terms of payment?
A: T/T 30% as deposit in advance, and 70% to be transferred before b
ooking space.
Q3. How about your delivery time?
A: Generally, it will takes 30-45 days after deposite payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some stock.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5. What is your warranty policy?
A: We can supply one year or 1200h warranty for our machines .
