Quick Details
-
Weight:
-
3600 KG
-
Mobility:
-
ok
-
Product name:
-

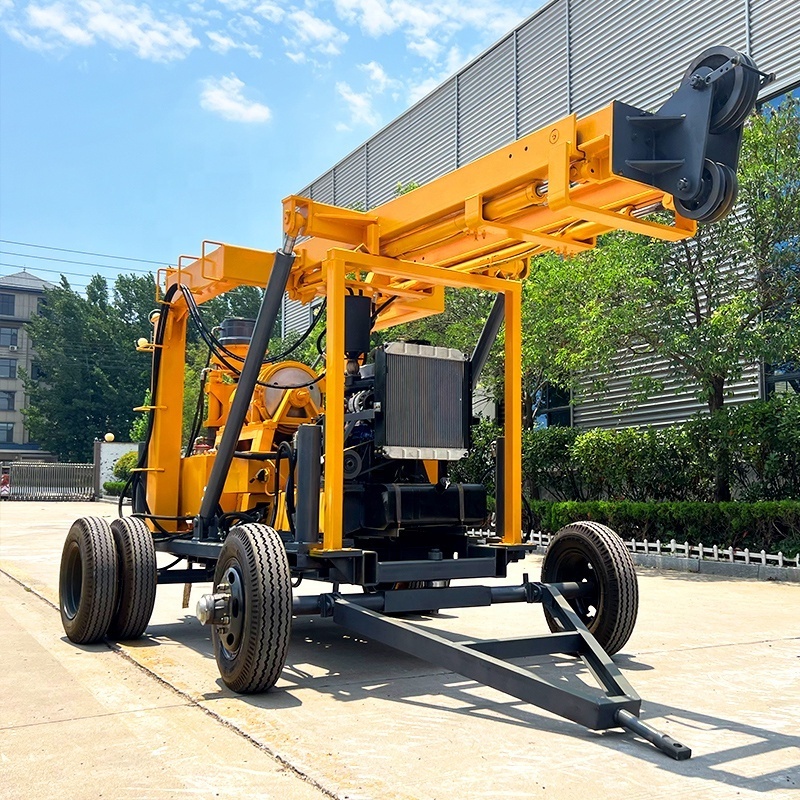

Water well drilling machine
-
Drilling depth:
-
530m
-
Drilling diameter:
-
75-300mm
-
Drilling inclination:
-
90°--65°
-
Rig weight:
-
3600KG
-
Drill pipe:
-
60
-
Open hole diameter:
-
300mm
-
Final hole diameter:
-
75mm
-
Dimensions:
-
2900*2560*3300mm
-
Diesel engine:
-
CloudYN27/power 42kw / 2400rpm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RELIED
-
Dimension(L*W*H):
-
2900*2560*3300MM
-
Weight:
-
3600 KG
-
Mobility:
-
ok
-
Product name:
-
Water well drilling machine
-
Drilling depth:
-
530m
-
Drilling diameter:
-
75-300mm
-
Drilling inclination:
-
90°--65°
-
Rig weight:
-
3600KG
-
Drill pipe:
-
60
-
Open hole diameter:
-
300mm
-
Final hole diameter:
-
75mm
-
Dimensions:
-
2900*2560*3300mm
-
Diesel engine:
-
CloudYN27/power 42kw / 2400rpm
II. Characteristics
1. This drilling rig is a high-speed drilling rig suitable for general survey exploration, geophysical exploration, road and construction exploration and blast hole drilling projects.
2. Drill bits such as alloys, diamonds and composite chips can be selected for drilling according to the different bottom layers.
3. It can drill sandy clay and rock formations of grade 2-9.
2. Drill bits such as alloys, diamonds and composite chips can be selected for drilling according to the different bottom layers.
3. It can drill sandy clay and rock formations of grade 2-9.
|
Model
|
XYX-200
|
|
Drilling depth(m)
|
200
|
|
Open hole dia.(mm)
|
325
|
|
End hole dia.(mm)
|
75
|
|
Drill rod dia.(mm)
|
42-60
|
|
Drill angle(°)
|
90-75
|
|
Matching power (kW)
|
15
|
|
Weight without power (kg)
|
1150
|
|
Dimension (m)
|
2.7*0.9*1.6
|
|
Speed (r/min)
|
64/128/287/557
|
|
Stroke(mm)
|
450
|
|
Max.torque(N.m)
|
2200
|
|
Thrust (k.N)
|
40
|
|
Lifting force (k.N)
|
60
|
|
Single rope lift force(kg)
|
2400
|
|
Lifting speed Head(m/min)
|
0.12-0.95
|
|
Rope dia.(mm)
|
φ12.5
|
|
Roll capacity(m)
|
35
|
|
Rated load(ton)
|
5
|
|
Height(m)
|
6.5
|
|
Dispalcement(L/min)
|
145
|
|
Max.pressure(Mpa)
|
2
|
|
Times(pcs/min)
|
93
|
|
Inlet hose dia. (mm)
|
51
|
|
Outlet hose dia. (mm)
|
32
|
|
Machine parameters
|
|
|
|
Drilling depth
|
530m
|
|
|
Drilling diameter
|
75-300mm
|
|
|
Open hole diameter
|
300mm
|
|
|
Final hole diameter
|
75mm
|
|
|
Drill pipe
|
Φ60
|
|
|
Drilling inclination
|
90°--65°
|
|
|
Vertical axis
|
|
|
|
Vertical axis forward speed
|
32-1057r/min
|
|
|
Vertical axis reversal speed
|
29-137r/min
|
|
|
Vertical axis travel
|
600mm
|
|
|
Vertical shaft bore diameter
|
96mm
|
|
|
Vertical axis to enhance ability
|
60kN
|
|
|
The main winch
|
|
|
|
Single rope to enhance speed
|
0.5-1.9m/s
|
|
|
Rope diameter
|
12.5mm
|
|
|
Single rope to enhance ability
|
30kN
|
|
|
Reel diameter
|
300mm
|
|
|
Reel capacity
|
65m
|
|
|
Mud pump (optional)
|
|
|
|
Horizontal three-cylinder BW-250 mud pump
|
BW-250 mud pump
|
|
|
Displacement
|
250L/min
|
|
|
Work pressure
|
80kgcm²
|
|
|
Intake pipe diameter
|
76mm
|
|
|
Outlet diameter
|
51mm
|
|
|
Gear pump
|
|
|
|
Double gear pump
|
CBF-F63/25
|
|
|
Pre-flow pressure
|
63L/min 20Mpa
|
|
|
Post-flow pressure
|
25L/min 20Mpa
|
|
|
Rig power
|
|
|
|
Diesel engine
|
CloudYN27/power 42kw / 2400rpm
|
|
|
Motor
|
Y180L-4/22kW/1470rpm
|
|
|
Weight size
|
|
|
|
Rig weight
|
3600KG
|
|
|
Dimensions
|
2900×2560×3300mm
|
|
FAQ
1, What’s your MOQ?
Minimum order is 1 pc only, dealership is warmest welcome.
2, What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2. 100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the trucks?
Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.
4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
Minimum order is 1 pc only, dealership is warmest welcome.
2, What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2. 100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the trucks?
Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.
4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
