Quick Details
-
Weight:
-
0.5kg
-
Size:
-
350*35*35cm, 717, 732, 409, 415
-
Weight (KG):
-
0.5 kg
-
Product name:
-
Filter Bag
-
Protection class:
-
IP55
-
Diameter (inch/mm):
-
7/180, 4/100
-
Length (inch/mm):
-
16/410, 32/810, 9/230, 14/360
-
Flow (m3/h):
-
20, 40, 6, 12
-
Ring Construction:
-
Seam, Melting
-
Micron Rate:
-
1μm, 3μm, 5μm, 10μm,...300μm
-
Bottom Shape:
-
Square, Round
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HatChee
-
Material:
-
Carton, PP, PE, Nylon, PTFE
-
Weight:
-
0.5kg
-
Size:
-
350*35*35cm, 717, 732, 409, 415
-
Weight (KG):
-
0.5 kg
-
Product name:
-
Filter Bag
-
Protection class:
-
IP55
-
Diameter (inch/mm):
-
7/180, 4/100
-
Length (inch/mm):
-
16/410, 32/810, 9/230, 14/360
-
Flow (m3/h):
-
20, 40, 6, 12
-
Ring Construction:
-
Seam, Melting
-
Micron Rate:
-
1μm, 3μm, 5μm, 10μm,...300μm
-
Bottom Shape:
-
Square, Round

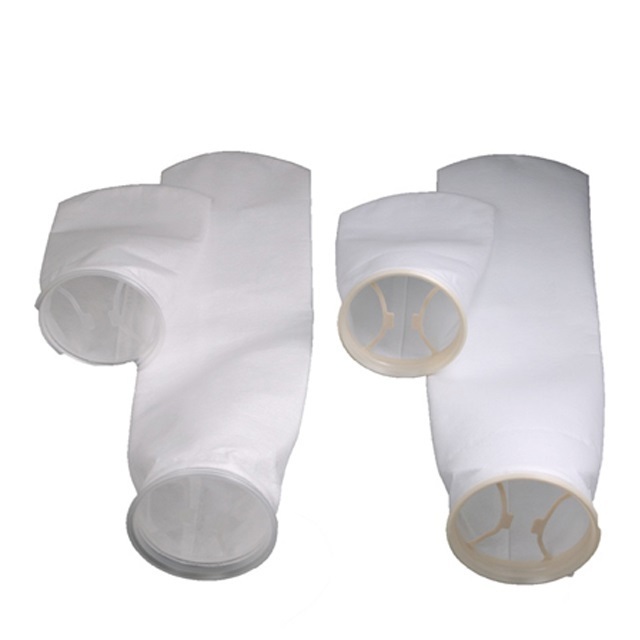

Filter Bag
The Filter Bag is made of Polypropylene, Polyester, Nylon Mono-filament etc., following Germany technology. Highly controlled manufacturing procedures ensure consistent quality and no contamination. The unique bag designs provide strength and avoid risk of bypass. It fits all industry standard bag filters.
Applications
• Paints, Inks, Coatings
• Resins
• Adhesives
• Water
• Food Oil
• Any liquid needed filtrated
Variety
• (PE/PP) Welded Filter Bag
• Line Stitches Thorn Felt (PE/PP) Filter Bag
• Nylon Mono-filament (NMO) Filter Bag
Ordering
|
Material |
Size |
Micron Rate |
Ring Material |
Ring Construction |
Bag Construction |
Bottom Shape |
|
PE PP Nylon Teflon |
717 732 409 415 |
1: 1μm 3: 3μm 5: 5μm 10: 10μm ...... ...... 300: 300μm |
PE- Polyethylene PP- Ploypropylene SS- Stainless Steel BE- Belt |
S- Seam M- Melting |
S- Seam M- Melting |
S- Square R- Round |
Our company adopts the unique fiber ratio of the production of liquid filter material, it can be Polypropylene, Polyester ,Nylon, PPS Or PTFE.
The material good at filter aperture uniform, high filtering accuracy, good filtering effect, long using life.
In addition, this bag is applicable to the filtration of medium or low viscosity liquid. It provides a stable and high filtration flow rate to effectively capture a variety of soft or hard impurities.
Liquid Filter Bag Material
(CHOOSE THE SUITABLE MATERIAL AS YOUR NEED !)
|
|
|
|
|
Polypropylene Liquid filter bag |
Polyester Liquid filter bag |
Nylon Liquid filter bag |
|
Material |
Temperature(℃) |
Resistance to Hydrolysis |
Resistance to Acids |
Resistance to Alkalis |
|
Polypropylene(PP) |
90-110℃ |
+++++ |
+++++ |
+++++ |
|
Polyester(PE) |
130-150℃ |
+ |
+++ |
+ |
|
Nylon (NM)) |
150-170℃ |
+++ |
+ |
+++ |
|
PTFE |
250-300℃ |
+++++ |
+++++ |
+++++ |
Products Size
|
Product Size |
Diameter (inch/mm) |
Length (inch/mm) |
Flow (m3/h) |
Filtration Area (mm2) |
Volume (L) |
|
#1 |
7/180 |
16/410 |
20 |
0.19 |
7.9 |
|
#2 |
7/180 |
32/810 |
40 |
0.41 |
17.3 |
|
#3 |
4/100 |
9/230 |
6 |
0.05 |
1.4 |
|
#4 |
4/100 |
14/360 |
12 |
0.09 |
2.5 |
|
#5 |
6/152 |
22/560 |
12 |
0.22 |
8.1 |
Product Details
Bag Body
Sewing:
1. Five lines of sewing is more fastness
2. Suitable for different material of rings
3.More cost saving
Hot Melting:
1. Well sealed can avoid missing
2. Assure high filtration accuracy
3. More pleasant to look at
Bag Button
Round, V Shape, Flat
Product Show
