Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
D&T
-
Model Number:
-
ES8k, ES8k
-
Max.capacity(g):
-
8kg
-
Readability(g):
-
0.1g
-
Repeatability(g):
-
±0.1
-
Linearity Error(g):
-
±0.2
-
Operational Temperature Range(℃):
-
13-25
-
Operational Moisture Range(RH):
-
10%-70%
-
External Dimension(L*W*H mm):
-
385*335*135
-
Response Time(Average value)(s):
-
2.5
-
Pan Diameter(mm):
-
390*310
Quick Details
-
Power Supply:
-
220V AC/50HZ;110V AC/50HZ
-
Display Type:
-
LCD
-
Warranty:
-
18 months
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
D&T
-
Model Number:
-
ES8k, ES8k
-
Max.capacity(g):
-
8kg
-
Readability(g):
-
0.1g
-
Repeatability(g):
-
±0.1
-
Linearity Error(g):
-
±0.2
-
Operational Temperature Range(℃):
-
13-25
-
Operational Moisture Range(RH):
-
10%-70%
-
External Dimension(L*W*H mm):
-
385*335*135
-
Response Time(Average value)(s):
-
2.5
-
Pan Diameter(mm):
-
390*310

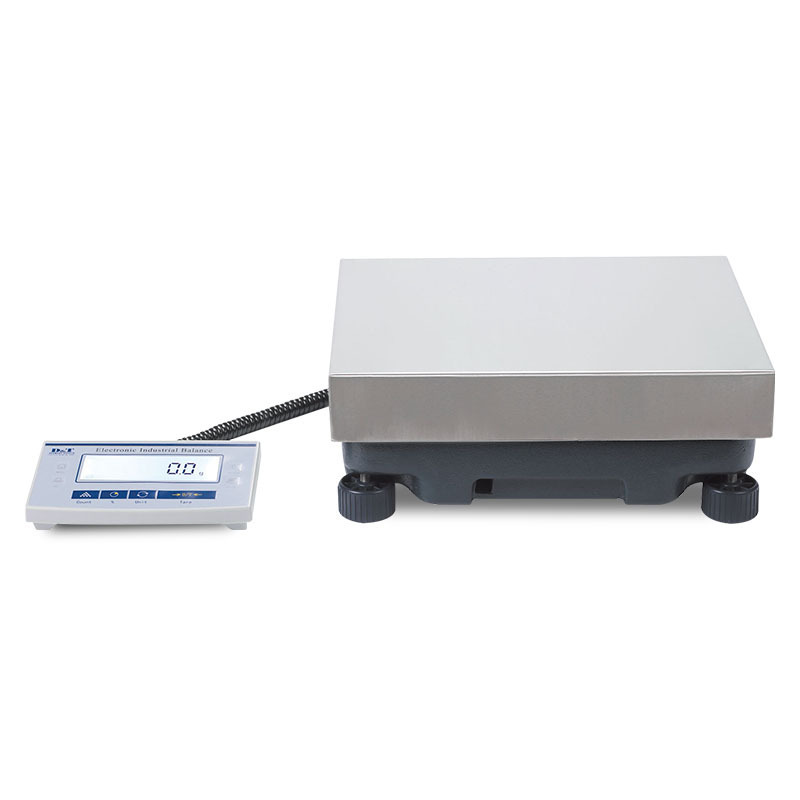

Industrial Electronic Balance
PRODUCT DESCRIPTION
D &T Industrial Scale is a high-precision industrial electronic scale for weighing. High precision, high range, equipped with a stainless steel scale pan, the balance adopts a gold-plated ceramic variable capacitance sensor. It has fast weighing speed, high accuracy, good stability, high-quality and cost-performance , simple operation, easy use and maintenance, and can be connected with external devices such as computers and printers to improve work efficiency. It is the best choice for professionals.
MAIN FEATURES
Super monolithic electromagnetic force sensor(ES35K/ES40K)
u The total machine parts are reduced by 70%, the response speed is increased by 30%, and the failure rate is reduced, making the weighing results more accurate and reliable.
Gold-plated ceramic variable capacitance sensors ensure excellent accuracy, stability and fast response speed
u Gold-plate ceramic variable capacitance sensor technology achieves the perfect unity of accuracy, stability, response speed, and ultra large range.
u Distinctive temperature compensation solution solves the problem of reliability of balance weighing result due to temperature effect, ensuring the reliability of the result.
Optimized product structure design
u The entire machine adopts a streamlined design , with enhanced design strength, anti-leakage, anti-static, anti-corrosion characteristics , suitable for many applications.
u LCD liquid crystal display
LCD display screen is clear and bright, with a reasonable layout, making it convenient for users to read the weighing results
u Various weighing modes
Basic weighing, percentage weighing, counting weighing, check weighing.
u Stainless steel weighing pan
Make the sample stable, non tilting, and have corrosion resistance.
u Toggle between different units
Units such as grams (g), carats (Ct), ounces (oz) and pennyweight (dwt) can be freely switched.
u Built-in RS232 two-way communication interface
Can realize the connection between the balance and the computer and micro-printer. The weighing results can also be transferred to other open applications in a PC.
SPECIFICATIONS
|
Model |
ES8K |
ES12K |
ES16K |
ES20K |
ES30K |
ES50K-1 |
ES50K |
ES60K-1 |
ES60K |
|||
|
Max capacity |
8kg |
12kg |
16kg |
20kg |
30kg |
50kg |
50kg |
60kg |
60kg |
|||
|
Model |
ES35K |
ES40K |
ES35K,ES40K |
|
||||||||
|
Max capacity |
35kg |
40kg |
Monolithic |
|
||||||||
|
Readability (d) |
0.1 g |
1 g |
0.5 g |
1 g |
0.5 g |
|||||||
|
Repeatability (≤) |
± 0.2 g |
± 2 g |
± 1 g |
± 2 g |
± 1 g |
|||||||
|
Linearity deviation (≤) |
± 0.2 g |
± 2 g |
± 1 g |
± 2 g |
± 1 g |
|||||||
|
Operation temperature |
13℃~25℃ |
|||||||||||
|
Relative humidity |
10% RH ~70% RH |
|||||||||||
|
Stabilization time ( average ) |
≤ 2.5 s |
|||||||||||
|
Screen size |
185mm×100mm |
|||||||||||
|
Weighing pan |
370mm×310mm |
|||||||||||
|
Dimensions |
370 mm × 310mm × 140 mm |
|||||||||||
|
Warm-up time |
30-60 minutes |
|||||||||||
|
Power supply |
Input: 220V AC/50HZ; Output: 7.5V DC/600mA |
|||||||||||
|
Accuracy class |
Ⅱ |
|||||||||||
COMPANY SHOW
TIANJIN D&T TRANSDUCER TECHNOLOTY CO., LTD.
Is a professional company engaging in precision electronic balance with the combination of development, design, manufacture and sales. D&T company has a complete set of means of production, technology, quality checking and R&D. We provide precision electronic balances for laboratory work and industrial production, and the related technical support solution.
D&T series precision electronic balances adopt the technology of gold-plated ceramic capacitance sensor. All of our products have simple & compact configuration, long service life, easy maintenance, fast response, large weighing, high accuracy & stability and multiple functions. Electronic Analytical Balance, Economic Electronic Analytical Balance, Micro Balance, Rapid Moisture Analyzer, Jewelry Electronic Balance etc. products adopt advanced technology of electromagnetic sensor, with the features of high performance, economic applicable and environmental protection. So the international and domestic customers can have the balances with high quality and more competitive price from our company.
The products of our company are broadly used in laboratory, food, medicine, chemical, metalwork, coal detecting, military project, aerospace, bank, colleges and universities, paint mixing, moisture detection and other related industries. In addition, they are also suitable for storage of electronics, management system of material control and identification of iron casting calibration weights.
D&T company is based on the operation principle of CREDIBILITY FIRST, CONSTANT CREATIVITY and we follow the policy of technology & service-oriented, customers first with the core of new management system. All staff of D&T are always ready to make our clients satisfied with the optimal products we provided.
