Quick Details
-
Power (kW):
-
3.4
-
Weight (KG):
-
320
-
Product name:
-

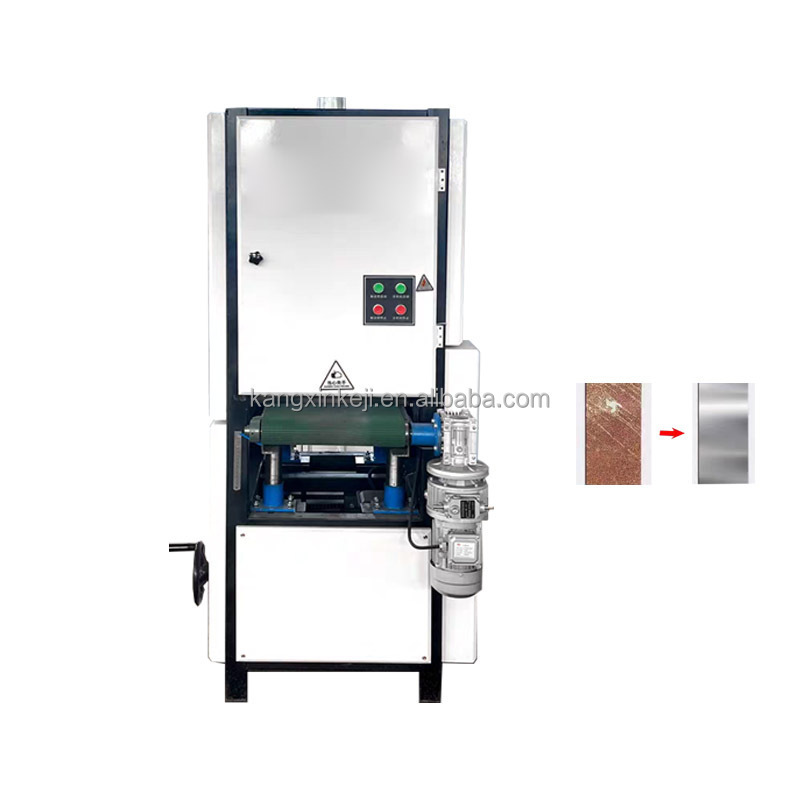

metal deburring edge rounding machine
-
Polishing wheel motor power:
-
3KW
-
Wheel motor power:
-
0.4KW
-
Spindle diameter:
-
32MM
-
Wheel diameter:
-
230MM
-
The largest wheel diameter:
-
300MM
-
Maximum thickness of the wheel:
-
160MM
-
Pipe diameter range:
-
1-80MM
-
Maximum processing length:
-
6000MM
-
After-sales Service Provided:
-
Online support
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
KX
-
Marketing Type:
-
hot product 2021
-
Power (kW):
-
3.4
-
Weight (KG):
-
320
-
Product name:
-
metal deburring edge rounding machine
-
Polishing wheel motor power:
-
3KW
-
Wheel motor power:
-
0.4KW
-
Spindle diameter:
-
32MM
-
Wheel diameter:
-
230MM
-
The largest wheel diameter:
-
300MM
-
Maximum thickness of the wheel:
-
160MM
-
Pipe diameter range:
-
1-80MM
-
Maximum processing length:
-
6000MM
-
After-sales Service Provided:
-
Online support
| Hot selling sanding belt brushes metal polishing machine |
Product Description
The use of flat polishing machines is very extensive, and they can be applied to different industries and materials for flat polishing. The main purpose is to finely polish the surface of various materials of workpieces to achieve a certain flatness, parallelism, smoothness, and more beautiful appearance. Suitable for grinding, polishing, and surface treatment before electroplating of metal surfaces (and non-metallic materials). Can be equipped with grinding wheels, hemp wheels, cloth wheels, wind wheels, nylon wheels, fiber wheels, thousand leaf wheels, and sand belt wheels for polishing.
Application: Iron plate deburring / descaling, laser cutting deburring, flat wire drawing, metal wire drawing, stainless steel
plate polishing and wire drawing, Applicable materials: iron plate, stainless steel plate, copper plate, aluminum plate and wood.
| Model | KX-400 | KX-800 | KX-1000 | KX-1200 |
| Belt width | 400MM | 800MM | 1000MM | 1200MM |
| Width of workpieces | 1-380MM | 1-780MM | 1-980MM | 1-1180MM |
| Length of workpieces | no limit | no limit | no limit | no limit |
| Thickest of workpieces | 1-110MM | 1-110MM | 3-100MM | 3-100MM |
| Thickest of workpieces | 5.5KW*2 | 5.5KW*2 | 5.5KW*2 | 7.5KW*2 |
| Conveyor motor | 0.55KW | 0.55KW | 0.55KW | 0.75KW |
| Lifting motor | 0.55kw | 0.55kw | 0.55kw | 0.75KW |
| Voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
| Machine size | 600*1200*1700MM | 1300*1000*1700MM | 1300*1200*1700MM | 1500*1200*1700MM |
| Machine size | 520KG | 700KG | 800KG | 900KG |
