- Product Details
- {{item.text}}
Quick Details
-
Center Height (mm):
-
1800 mm
-
Max.Transformer Capacity(kVA):
-
500000 kVA
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
zhenhuan
-
Motor Power (kw):
-
5.5
-
Weight (KG):
-
10000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Spindle driving method:
-
inverter control
-
Winding speed:
-
continuous adjustable
-
Suitable transformer coil width:
-
400~2000mm
-
Suitable transformer coil weight:
-
1000~15000kg
-
Diameter of disc clicker:
-
250-1400mm
-
Max torque of clicker:
-
600-20000N.m
-
Power Supply:
-
380V, 3 phase, 50Hz
-
Guarantee:
-
One year since the date of B/L
-
After Warranty Service:
-
Spare parts
Quick Details
-
Max. Load (KG):
-
15000 KG
-
Coil Type:
-
low &hight voltage coil
-
Length of Axis (mm):
-
1500 mm
-
Center Height (mm):
-
1800 mm
-
Max.Transformer Capacity(kVA):
-
500000 kVA
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
zhenhuan
-
Motor Power (kw):
-
5.5
-
Weight (KG):
-
10000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Spindle driving method:
-
inverter control
-
Winding speed:
-
continuous adjustable
-
Suitable transformer coil width:
-
400~2000mm
-
Suitable transformer coil weight:
-
1000~15000kg
-
Diameter of disc clicker:
-
250-1400mm
-
Max torque of clicker:
-
600-20000N.m
-
Power Supply:
-
380V, 3 phase, 50Hz
-
Guarantee:
-
One year since the date of B/L
-
After Warranty Service:
-
Spare parts

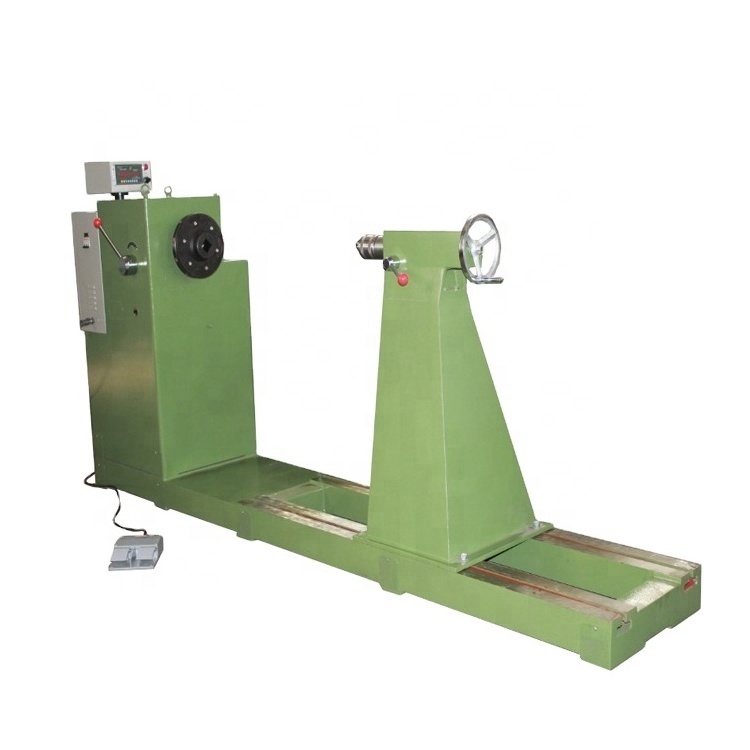

MACHINE DESCRIPTION
This machine is for winding LV coils used in transformers, motors and reactors.
MAIN FEATURES
- Simple structure: Comprised of main machine and tail supporter. Tail supporter is movable for different size of coils.
- Special counter:
1) Intelligent: add when naturally rotating, reduce when reversing
2) Number of turns can be preset. When reaches the preset turns, machine stop automatically
3) Memorizing function: no matter how long power stops, when energize, the original turns will be displayed
4) Separate counting function can be set.
5) Speed is continuously adjusted by inverter; ZHR-1, ZHR-2 and ZHR-3 also have mechanical gears for speed changing.
6) Inverter is of world famous brand, such as Siemens, Mitsubishi, etc.
- Special counter:
1) Intelligent: add when naturally rotating, reduce when reversing
2) Number of turns can be preset. When reaches the preset turns, machine stop automatically
3) Memorizing function: no matter how long power stops, when energize, the original turns will be displayed
4) Separate counting function can be set.
5) Speed is continuously adjusted by inverter; ZHR-1, ZHR-2 and ZHR-3 also have mechanical gears for speed changing.
6) Inverter is of world famous brand, such as Siemens, Mitsubishi, etc.
PRODUCT SPECIFICATIONS
|
Specification / Model
|
ZHR-1
|
ZHR-2
|
ZHR-3
|
ZHR-4
|
ZHR-5A
|
ZHR-5B
|
ZHR-6
|
||||||
|
Suitable transformer capacity (max., kVA)
|
800
|
3150
|
8000
|
25000
|
90000
|
90000
|
500000
|
||||||
|
Height of clicker center (mm)
|
900
|
1000
|
1100
|
1200
|
1400
|
1400
|
1800
|
||||||
|
Diameter of disc clicker (mm)
|
250
|
250
|
400
|
600
|
1000
|
1000
|
1400
|
||||||
|
Rotating speed of clicker (rpm)
|
0-200
|
0-100
|
0-80
|
0-30
|
0-30
|
0-10
|
|
||||||
|
Max. Torque of clicker (N·m)
|
600
|
1000
|
2500
|
4000
|
8000
|
15000
|
20000
|
||||||
|
Max. bearing weight (kg)
|
1000
|
1000
|
2000
|
3000
|
5000
|
10000
|
15000
|
||||||
|
Motor power (kW)
|
3
|
3
|
5.5
|
7.5
|
11
|
15
|
18.5
|
||||||
|
Power supply
|
380V, 3 phase, 50Hz or as required
|
|
|
|
|
|
|
||||||
