Quick Details
-
Brand Name:
-
ODI/HSGQ
-
Use:
-
FTTX Network solution
-
Warranty Time:
-
1 year
-
Product name:
-
Gpon Olt C+++
-
Data Rate:
-
2.5G/1.25G
-
Distance:
-
20km
-
Certification:
-
CE RoHS FCC
-
Wavelength:
-
Tx1490nm/Rx1310nm
-
Storage Temperature:
-
-40~+85 ℃
-
Operating Temperature:
-
0 ~+70 ℃
-
Power Supply Current:
-
400 mA
-
Supply Voltage:
-
-0.5~ +3.6 V
-
MOQ:
-
1 Pcs
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
HSGQ-C++
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ODI/HSGQ
-
Use:
-
FTTX Network solution
-
Warranty Time:
-
1 year
-
Product name:
-
Gpon Olt C+++
-
Data Rate:
-
2.5G/1.25G
-
Distance:
-
20km
-
Certification:
-
CE RoHS FCC
-
Wavelength:
-
Tx1490nm/Rx1310nm
-
Storage Temperature:
-
-40~+85 ℃
-
Operating Temperature:
-
0 ~+70 ℃
-
Power Supply Current:
-
400 mA
-
Supply Voltage:
-
-0.5~ +3.6 V
-
MOQ:
-
1 Pcs
Product Description

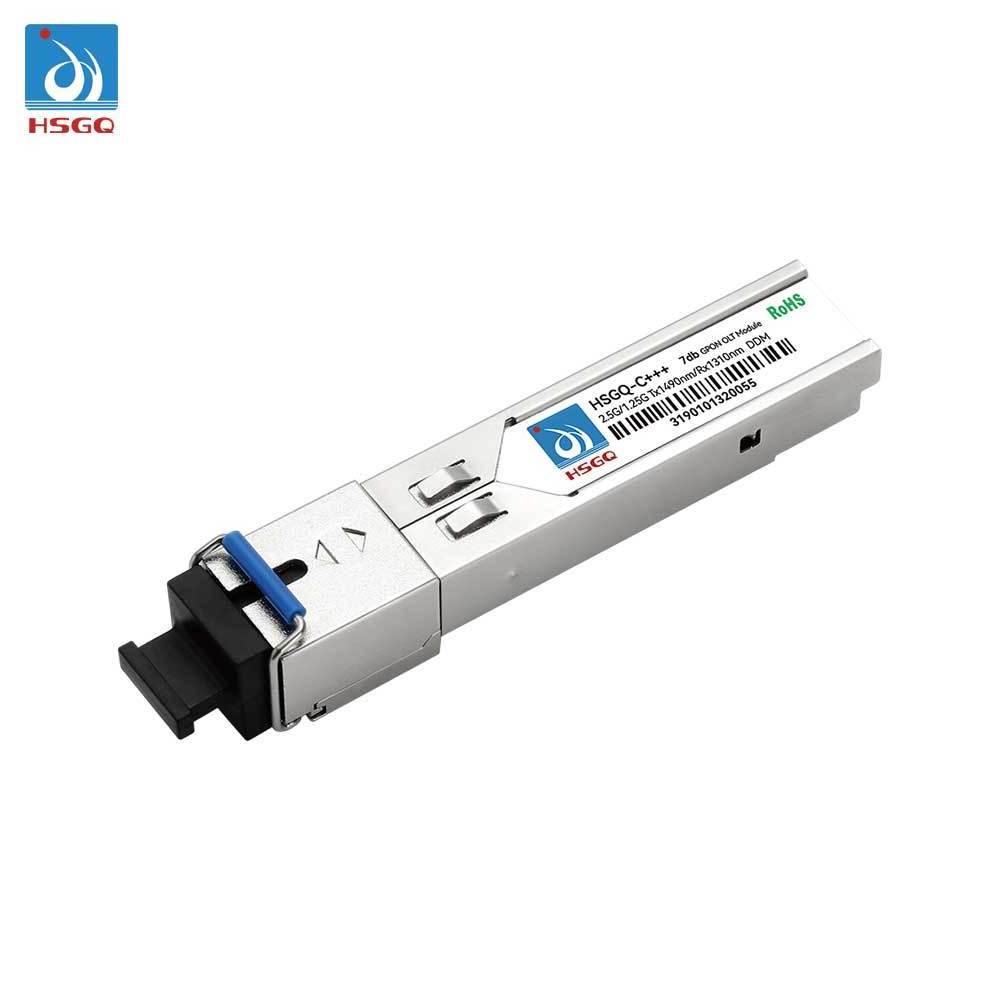

HSGQ-C+++ 20km FTTX networks Gpon olt onu 9DB sfp transceiver xgpon sfp module price
Features
1. Single Power Supply 3.3V
2. Small Form-factor Pluggable (SFP)
3. Digital diagnostic monitor compatible with SFF-8472
4. Compliant with ITU-T G.984.2
5. Integrated WDM filter for dual wavelength Operate at 1490 Tx/ 1310nm Rx
6. 1490nm DFB continuos-mode transmitter
7. 1310nm burst-mode APD-TIA receiver
8. LVTTL transmitter disable input and transmitter fault output
9. Hot pluggable capability
10. LVPECL compatible data input/output interface
11. SC Receptacle optical connector
12. compliant with ROHS standard
1. Single Power Supply 3.3V
2. Small Form-factor Pluggable (SFP)
3. Digital diagnostic monitor compatible with SFF-8472
4. Compliant with ITU-T G.984.2
5. Integrated WDM filter for dual wavelength Operate at 1490 Tx/ 1310nm Rx
6. 1490nm DFB continuos-mode transmitter
7. 1310nm burst-mode APD-TIA receiver
8. LVTTL transmitter disable input and transmitter fault output
9. Hot pluggable capability
10. LVPECL compatible data input/output interface
11. SC Receptacle optical connector
12. compliant with ROHS standard
Applications
Gigabit Ethernet Passive Optical Networks (GPON CLASS C+) –OLT side
Gigabit Ethernet Passive Optical Networks (GPON CLASS C+) –OLT side
Specification
Absolute maximum ratings
|
Parameter
|
Symbol
|
Min.
|
Max.
|
Unit
|
|
Storage Temperature
|
T
s
|
-40
|
+85
|
℃
|
|
Operating Temperature
|
T
op
|
0
|
+70
|
℃
|
|
Supply Voltage
|
V
cc
|
-0.5
|
+3.6
|
V
|
|
Power Supply Current
|
I
cc
|
-
|
400
|
mA
|
|
Voltage at any Input Pin
|
V
IN
|
0
|
V
CC
|
V
|
Recommended Operating Conditions
|
Parameter
|
Symbol
|
Min.
|
Typ
|
Max.
|
Unit
|
|
Operating Temperature
|
T
op
|
0
|
-
|
+70
|
℃
|
|
Supply Voltage
|
V
cc
|
3.1
|
3.3
|
3.5
|
V
|
|
Tx Data Rate
|
-
|
-
|
2488
|
-
|
Mb/s
|
|
Rx Data Rate
|
-
|
-
|
1244
|
-
|
Mb/s
|
