Quick Details
-
Model Number:
-
MTS-203
-
Max. Current:
-
6A
-
Mechanical Life:
-
500000 CYCLES
-
Product Name:
-
Toggle Switch
-
Mounting Hole:
-
M6
-
Function:
-
ON-OFF-ON
-
Position:
-
3
-
Switch Type:
-
DPDT
-
Housing Color:
-
Red/Brown/Black
-
Terminal:
-
PC terminal
-
Number of Contact Terminals:
-
6
-
Material:
-
Metal, Plastic
-
Product Type:
-
Spring Return Toggle Switch
-
Certification:
-
CE/ROHS/ISO9001
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
MTS-203
-
Max. Current:
-
6A
-
Mechanical Life:
-
500000 CYCLES
-
Product Name:
-
Toggle Switch
-
Mounting Hole:
-
M6
-
Function:
-
ON-OFF-ON
-
Position:
-
3
-
Switch Type:
-
DPDT
-
Housing Color:
-
Red/Brown/Black
-
Terminal:
-
PC terminal
-
Number of Contact Terminals:
-
6
-
Material:
-
Metal, Plastic
-
Product Type:
-
Spring Return Toggle Switch
-
Certification:
-
CE/ROHS/ISO9001
Details Images
Products Description

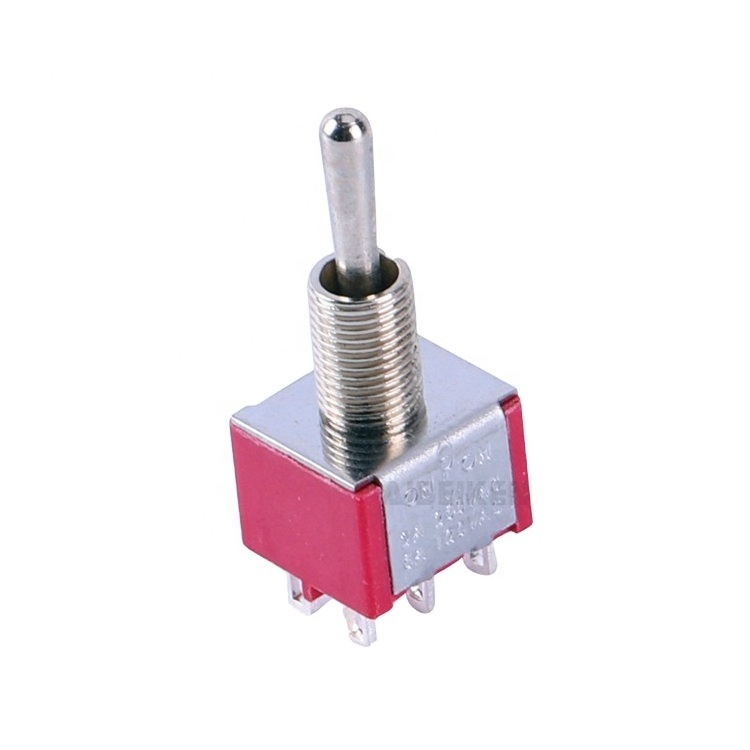

Mts-203 Dpdt Toggle Switch MTS-203 6 Pin DPDT On Off On Mini Toggle Switch
·
Connector type: DPDT, 6 Pin terminal on/off/on.
· Terminal type: PC terminal
· Material: plastic and metal. Solid connection switch with waterproof rubber cap, more convenient to
· Terminal type: PC terminal
· Material: plastic and metal. Solid connection switch with waterproof rubber cap, more convenient to
operate. Delicate appearance with strong Construction. Look chic and high-end on your equipment
· Easy to install: Mounting hole diameter: 6mm. Each of the terminals has a machine screw for quick
· Easy to install: Mounting hole diameter: 6mm. Each of the terminals has a machine screw for quick
connections, but also easy to be soldered
· Package include: 20Pcs toggle switch
· Package include: 20Pcs toggle switch
Specification:
Switch Type: on/off/on 6Pins
Power: 6A 250VAC / 3A 125VAC.
Material (External): Metal and Plastic.
Switch Type: on/off/on 6Pins
Power: 6A 250VAC / 3A 125VAC.
Material (External): Metal and Plastic.
|
Product Name
|
|
Toggle Switch
|
|
|
|||
|
Items
|
|
MTS-203
|
|
|
|||
|
Mounting Hole
|
|
M6
|
|
|
|||
|
Operation Type
|
|
ON OFF ON
|
|
|
|||
|
Rating
|
|
6A 125VAC; 3A 250VAC
|
|
|
|||
|
Dielectric strength
|
|
1000 V RMS (min)
|
|
|
|||
|
Mechanical life
|
|
More than 50.000 cycles
|
|
|
|||
|
Operating Temperature
|
|
-25°C ~+80°C
|
|
|
|||
|
Accessory hardware
|
|
Metal washer, Nameplate, Mounting nut
|
|
|
|||
|
What You Get
|
|
20 Pcs Toggle switch
6 Pin terminal, ON OFF ON Latching, 3 Position
|
|
|
|||
