Quick Details
-
Product Dimension:
-
72mm x74mm x20mm
-
Material:
-
ABS Plastic House
-
Color:
-
Black,White & Custom Colors
-
Weight:
-
102g
-
Power supply:
-
5V/2A Micro USB & PoE Interface For Power Supply
-
Input Power:
-
5V2A
-
OTA Update:
-
YES
-
Antenna:
-
External Antenna
-
Protocol:
-
iBeacon & Eddystone
Quick Details
-
Chipset:
-
ESP32, nRF52832
-
Application:
-
Capture & Manage Beacons' Advertising
-
Product name:
-
Hot Sale BLE To WiFi Gateway Bluetooth WiFi Beacon Gateway
-
Product Dimension:
-
72mm x74mm x20mm
-
Material:
-
ABS Plastic House
-
Color:
-
Black,White & Custom Colors
-
Weight:
-
102g
-
Power supply:
-
5V/2A Micro USB & PoE Interface For Power Supply
-
Input Power:
-
5V2A
-
OTA Update:
-
YES
-
Antenna:
-
External Antenna
-
Protocol:
-
iBeacon & Eddystone

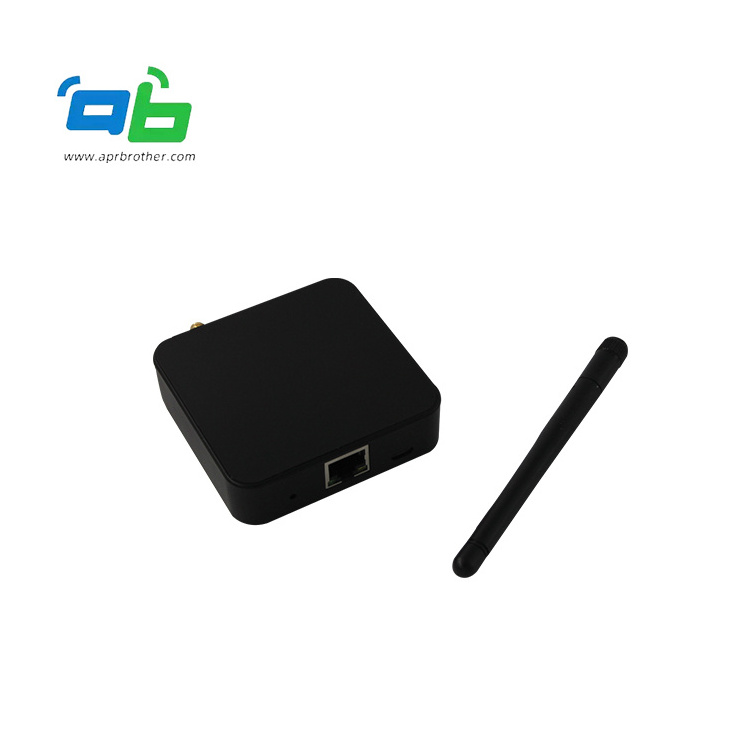

HHot Sale BLE To WiFi Gateway Bluetooth WiFi Beacon Gateway
As an essential device of IoT serial products, the AB BLE Gateway V4 is used to capture the advertising signal of the BLE Bluetooth devices, it can track any BLE devices, scan and forward real-time advertisement data from April beacons or 3rd Party Bluetooth devices. Report real-time proximity of any iBeacon, Eddystone beacons, and April beacons, and transmit beacons data to the local TCP server or Internet HTTP/MOTT server. The AB BLE Gateway V4 itself does not have the function of data parsing. It can only capture the advertised data of the BLE Bluetooth device and then upload the data to the server.
The Bluetooth gateway V4 can capture data include MAC address, UUID, Major, Minor, RSSI. Users can configure the transmit period and server information through a simple HTTP API.
| Construction | Features | ||
| Model | AB BLE Gateway V4 | Programable | √ |
| Material | ABS Plastic Housing | Beacon Data Upload | √ |
| Color | Black,White & Custom Colors | Multiple Wireless Protocols | √ |
| Form Factor | BLE & WiFi Gateway | 3rd Party Beacons Supported | √ |
| Dimensions | 72mm x 74mm x 20mm | Cloud Integration Available | √ |
| Weight | 102g | External Antenna for BLE | √ |
| Power Source | 5V/2A Micro USB & PoE Interface | 3rd Party Application Supported | √ |
| Flash | 4 MB | Including Wifi and Ethernet Port | √ |
| Recommended Operating Temperature | -20°C to +60°C | OTA Firmware Updates | √ |
| Bluetooth Specs | Ready to Customise | √ | |
| Controller Chip | nRF52832 | ||
| Working Voltage | 1.8-3.6 V | WiFi Specs | |
| Working Frequency | 2.402GHz - 2.480GHz | Controller Chip | ESP32 |
| Receiver Sensitivity | - 96 dBm | WiFi Protocol | 802.11b/g/n/e/i (802.11n, Up to 150 Mbps) |
| Transmit Rate | 1 Mbps | Frequency | 2.4 GHz |
| Antenna | External Antenna | Transmit Power |
@802.11dB + 20 dBm
@802.11n + 14 dBm |
| Capture Range | 50 M | Transmit Rate | Up to 150 Mbps |
| Ethernet Port | Antenna | PCB Antenna | |
| Work pattern |
Full-Duplex 10-BASE-T(10 Mbps),
100BASE-TX Transceiver(100 Mbps) |
Capture Range | 100M |
| PoE | 15W IEEE 802.3 af | Upload Maximum | 150 advertising data per second with WiFi connection |
| Upload Maximum | 210 advertising data per second with Ethernet wire | ||
| Programable |
Custom Your Own Gateway
|
|||
|
Multiple Wireless Protocols (WebSocket,MQTT,HTTP) |
Multiple Wireless Protocols
|
|||
| Bluetooth 4.0 Low Energy |
Bluetooth 4.0 Low Energy
|
|||
| External Antenna for BLE |
Powerful Coverage With External Antenna
|
|||
| USB and PoE Power Supply |
Multi-Access To Supply Power.
|
|||
|
Product Compliance |
To Meet Your Market Requirements
FCC ID: 2ACAL-ABBG0004;
|
|||
