Automatic PCB glue dispensing machine /Silicone Adhesive Glue Dispenser Machine/Ab Polyurethane Glue Dispensinge

Automatic PCB glue dispensing machine /Silicone Adhesive Glue Dispenser Machine/Ab Polyurethane Glue Dispensinge

FOB Reference Price: Get Latest Price

≥1 Sets

US $2000

≥3 Sets

US $1900

≥10 Sets

US $1800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Machine name:: glue dispensing machine

Model:: JL-D331

After-sales Service Provided:: Video Technical Support

Maximum load:: X/Y/Z 5kg/5kg/2kg

Top speed:: 500mm/sec

Control System:: Hand-held three-axis control system

Number of controlled axes:: Three-axis

File storage space 4:: 400 sets of processing files, up to 9999 points in a single file.

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: JULI

Weight (KG):: 71

Machine name:: glue dispensing machine

Model:: JL-D331

After-sales Service Provided:: Video Technical Support

Maximum load:: X/Y/Z 5kg/5kg/2kg

Top speed:: 500mm/sec

Control System:: Hand-held three-axis control system

Number of controlled axes:: Three-axis

File storage space 4:: 400 sets of processing files, up to 9999 points in a single file.

Products Description

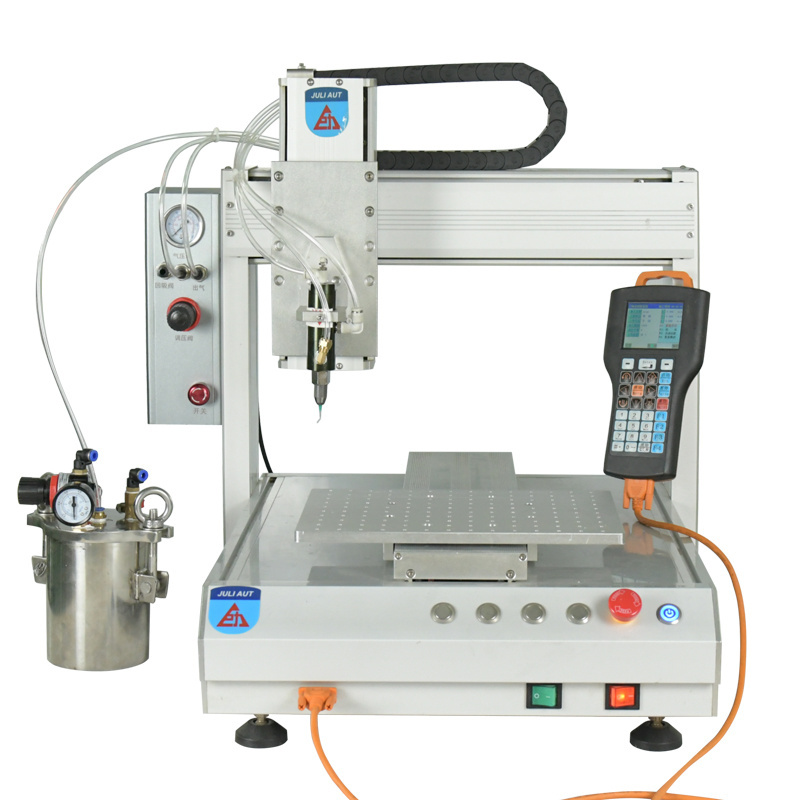

_{Automatic glue dispensing machine}

The double-head glue dispenser machine is actually the same principle as the single-head glue dispenser machine, but with some improvements based on the original single-head glue dispenser machine. The single head dispenser controls one dispensing needle per controller, while the double head glue dispenser machine is improved to control two or more glue dispensing valves with one controller.

Remote controller

we use this to program the machine.

It has the painting point, straight line, multi line segment, three-dimensional arc (spatial arc), round, rectangular,
runway,coating, automatic corner rounding, irregular 3D spline curve and other graphical elements; rich handmade teaching function
and graphical preview function.

Glue dispensing valve

Pressure tank,we have 3L 5L 10L

product fixture

it need to be customized according to customer's product

Model	JL-D331
Number of controlled axes	Three-axis
Effective travel	X axis	Y1 axis	Z axis
Effective travel		300mm	300mm	100mm
Transmission mode	Double-track timing belt
Power source	Stepper motor
Top speed	500mm/sec
Repeat accuracy	±0.05mm
Maximum load	X/Y/Z 5kg/5kg/2kg
Control System	Hand-held three-axis control system
File storage space	400 sets of processing files, up to 9999 points in a single file.
Power	AC110-250V 50-60HZ 350W
Size	L	W	H
Size		520mm	585mm	596.5mm
Weight	44kg
