Nowadays, new snow mobiles with continuous tracks on four-stroke engines, Private jet boats and all-terrain cars all use small valves. BV60S can process the valve seats accurately. You can have good surface finish with no chatter mark and perfect concentricity with BV60S.
- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Z) (mm):
-
170 mm
-
Travel (W-axis) (mm):
-
170 mm
-
Core Components:
-
other
-
Range of Spindle Speed(r.p.m):
-
2800 r.p.m
-
Spindle Motor Power(kW):
-
0.4
-
Place of Origin:
-
China
-
Brand Name:
-
Richon
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
1350*930*1800
-
Weight (T):
-
0.98 T
-
Type of Drive System:
-
Air / Electric
-
Max. Width of Cylinder Head:
-
420 mm
-
Max. Height of Cylinder Head:
-
170 mm
-
Max. Boring Dia.:
-
16-45 mm
-
Power of Spindle:
-
0.4 kW Servo Motor
-
N.W. / G.W.:
-
850 Kg / 980 Kg
-
Spindle Speed:
-
20-1000 rpm stepless
-
Power of Tools Grinder:
-
0.37 kW
-
Tools Grinder Rotation Speed:
-
2800 rpm
Quick Details
-
Table Size (mm):
-
Other
-
Table Travel (X) (mm):
-
1000 mm
-
Table Travel (Y) (mm):
-
420 mm
-
Table Travel (Z) (mm):
-
170 mm
-
Travel (W-axis) (mm):
-
170 mm
-
Core Components:
-
other
-
Range of Spindle Speed(r.p.m):
-
2800 r.p.m
-
Spindle Motor Power(kW):
-
0.4
-
Place of Origin:
-
China
-
Brand Name:
-
Richon
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
1350*930*1800
-
Weight (T):
-
0.98 T
-
Type of Drive System:
-
Air / Electric
-
Max. Width of Cylinder Head:
-
420 mm
-
Max. Height of Cylinder Head:
-
170 mm
-
Max. Boring Dia.:
-
16-45 mm
-
Power of Spindle:
-
0.4 kW Servo Motor
-
N.W. / G.W.:
-
850 Kg / 980 Kg
-
Spindle Speed:
-
20-1000 rpm stepless
-
Power of Tools Grinder:
-
0.37 kW
-
Tools Grinder Rotation Speed:
-
2800 rpm
Products Description

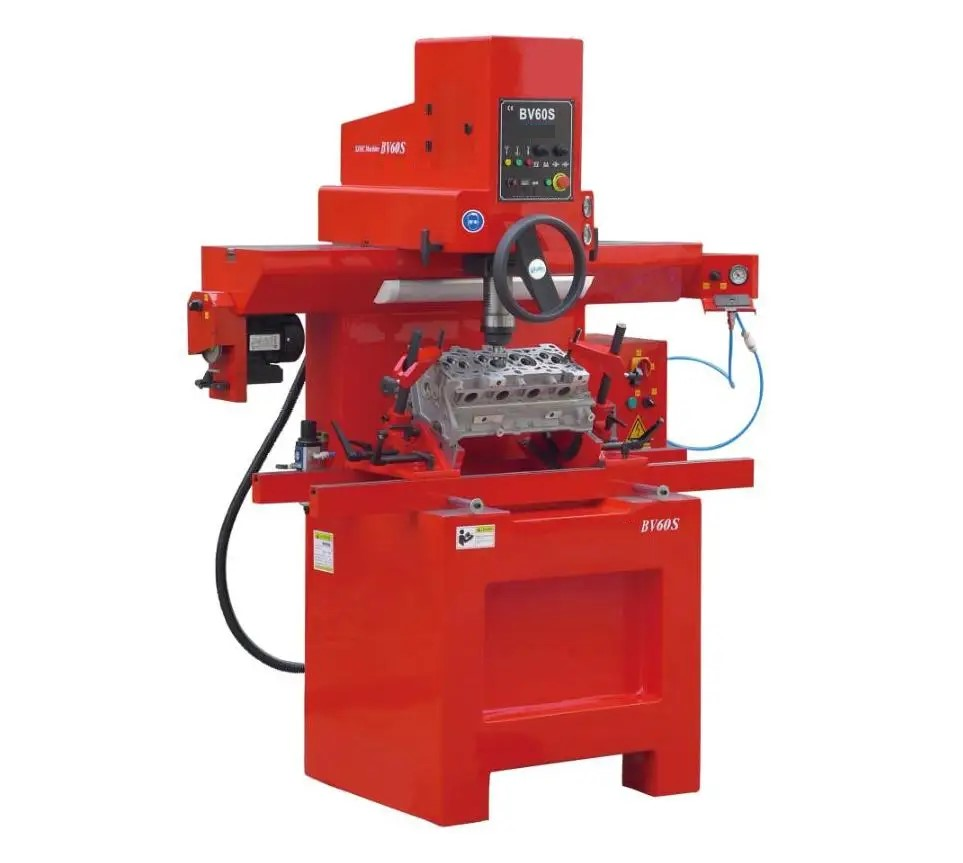

Valve Seat Boring Machine Model: BV60S
Machine uses a compact design and offers a competitive price with its feature and accuracy. It can easily process six-cylinder heads and light truck heads on vehicles, however, it works best for processing cylinder head of motorcycles and middle size, small size yachts.
|
Model
|
BV60S
|
|
Type of Drive System
|
Air / Electric
|
|
Max. Length of Cylinder Head of Standard 360°Rollover Fixture
|
1000 mm
|
|
Max. Width of Cylinder Head
|
420 mm
|
|
Max. Height of Cylinder Head
|
170 mm
|
|
Max. Boring Dia.
|
16 – 45 mm
|
|
Work Head Longitudinal Floating Travel
|
870 mm
|
|
Work Head Cross Floating Travel
|
30 mm
|
|
Sphere – Cylinder Travel
|
10 mm
|
|
Floating inclination angle of Spindle
|
±3°
|
|
Vertical Travel of Spindle
|
170 mm
|
|
Roughness of Finishing
|
Ra 0.6
|
|
Power of Spindle
|
0.4 kW Servo Motor
|
|
Spindle Speed
|
20 – 1000 rpm stepless
|
|
Power of Tools Grinder
|
0.37 kW
|
|
Tools Grinder Rotation Speed
|
2800 rpm
|
|
Clamper Rotary Angle
|
360°
|
|
Required Rated Air Pressure
|
5 Bar / 73 PSI
|
|
Required Max. Air Flow
|
300 L / Min
|
|
Required Continuous Air Flow
|
60 L / Min
|
|
Overall Dimension of Machine ( L×W×H )
|
1350×930×1800 mm
|
|
Package Size ( L×D×H )
|
1900×1330×2100 mm
|
|
N.W. / G.W.
|
850 Kg / 980 Kg
|
Company information
Customer Review
FAQ
Q1: How long guarantee period you offer?/ how is warranty?
A1:
12 month
guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2:
Free replacing parts
available in the warranty period.
Cost-value replacing parts
available beyond the warranty period.
Quick action
and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes,
free training
in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide
different kinds processing solutions
for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to
visit our factory at any time
. The more you know us, the more you trust us! So you can rest assured on our
quality products
and our
best services
.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
