Quick Details
-
Range of Spindle Speed(r.p.m):
-
80 - 1600 r.p.m
-
Max. Turned Length (mm):
-
815 mm
-
Spindle Motor Power(kW):
-
0.75
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BETA
-
Model Number:
-
JY280F
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1550*695*780m
-
Weight (KG):
-
210 KG
-
Marketing Type:
-
New products
-
Name:
-
JY280F Universal desktop small metal lathes for sale
-
Control:
-
universal small lathe
-
Max.swing over bed:
-
280 mm
-
Max.length of work pieces:
-
815 mm
-
Spindle bore:
-
26 mm
-
Turret:
-
4-station electric turret
-
Chuck size:
-
manual 3-jaw chuck
-
Function:
-
mini hobby bench lathe home use
-
Motor:
-
Brushless Motor 0.75kw
-
Usage:
-
home use, education, hobby lathe
-
Certification:
-
CE, ISO9001
Quick Details
-
Max. Length of Workpiece (mm):
-
815
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
26
-
Range of Spindle Speed(r.p.m):
-
80 - 1600 r.p.m
-
Max. Turned Length (mm):
-
815 mm
-
Spindle Motor Power(kW):
-
0.75
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BETA
-
Model Number:
-
JY280F
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1550*695*780m
-
Weight (KG):
-
210 KG
-
Marketing Type:
-
New products
-
Name:
-
JY280F Universal desktop small metal lathes for sale
-
Control:
-
universal small lathe
-
Max.swing over bed:
-
280 mm
-
Max.length of work pieces:
-
815 mm
-
Spindle bore:
-
26 mm
-
Turret:
-
4-station electric turret
-
Chuck size:
-
manual 3-jaw chuck
-
Function:
-
mini hobby bench lathe home use
-
Motor:
-
Brushless Motor 0.75kw
-
Usage:
-
home use, education, hobby lathe
-
Certification:
-
CE, ISO9001
Products Description

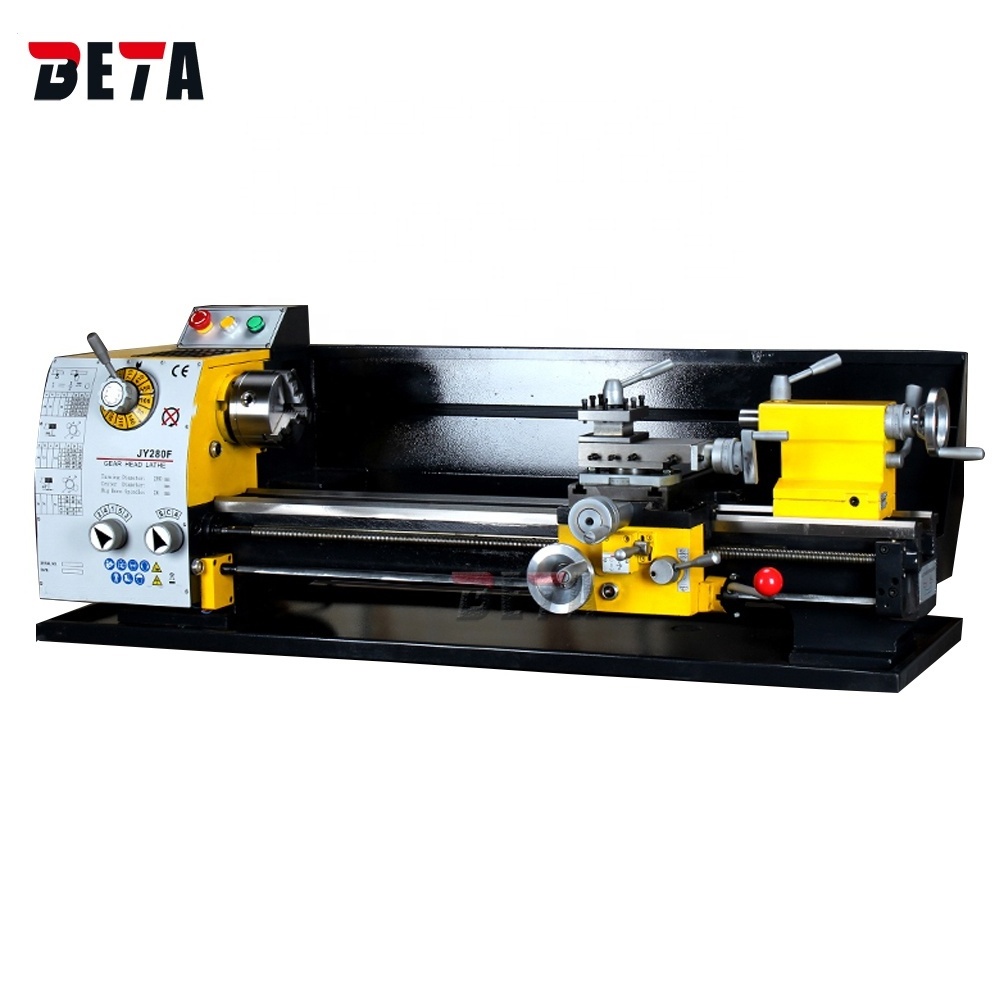

JY280F Universal desktop small metal lathes for sale
Product Parameters
|
Model
|
JY280F
|
|
Distance between centers
|
815mm
|
|
Swing over bed
|
280mm
|
|
Swing over cross slide
|
160mm
|
|
Spindle bore
|
26mm
|
|
Number of spindle speeds
|
12 steps
|
|
Range of spindle speeds
|
80-1600rpm
|
|
Range of inch threads
|
12-96 I/n” 10 kinds
|
|
Range of metric threads
|
0.25-2.5mm 15 kinds
|
|
Top slide travel
|
65mm
|
|
Cross slide travel
|
130mm
|
|
Tailstock quill travel
|
85mm
|
|
Taper of tailstock quill
|
MT2
|
|
Motor
|
750W Brushless Motor
|
|
Packing size
|
1550*695*780
|
|
Net /Gross weight
|
210/255 kg
|
Details Images
Household micro small bench lathe, used for teaching demonstration in schools and teaching and research units, suitable for household DIY, aircraft model parts, watch parts processing. Suitable for processing titanium, stainless steel, 45# steel, iron, aluminum, copper and other non-ferrous metals, and various soft materials such as wood and nylon.
All-steel gear, double the torque in low-speed gear.
