Quick Details
-
Application:
-
Gate
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
aoersi
-
Model Number:
-
F350
-
Product Name:
-
arm style swing gate motor
-
Power supply:
-
220V
-
Max. Gate Weight:
-
350KG
-
Working temperature:
-
-25 to 55 degree
-
Door Material:
-
Stanless Steel
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Gate
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
aoersi
-
Model Number:
-
F350
-
Product Name:
-
arm style swing gate motor
-
Power supply:
-
220V
-
Max. Gate Weight:
-
350KG
-
Working temperature:
-
-25 to 55 degree
-
Door Material:
-
Stanless Steel
|
– WELCOME TO ANDEA CUSTOM DOOR – Hello, we are door and door opener factory in Guangdong, China. Our products include hospital operation room door, clean room door, x-ray proof door/window, steel fire proof door, fire proof roller shutter door/window, automatic/manual roller shutter door (aluminum/steel/pvc), sectional garage door (steel/aluminum+glass), and entrance guard systems (opener, motor, etc). Welcome to contact us if any need. |
Product Pictures
S wing G ate M otor

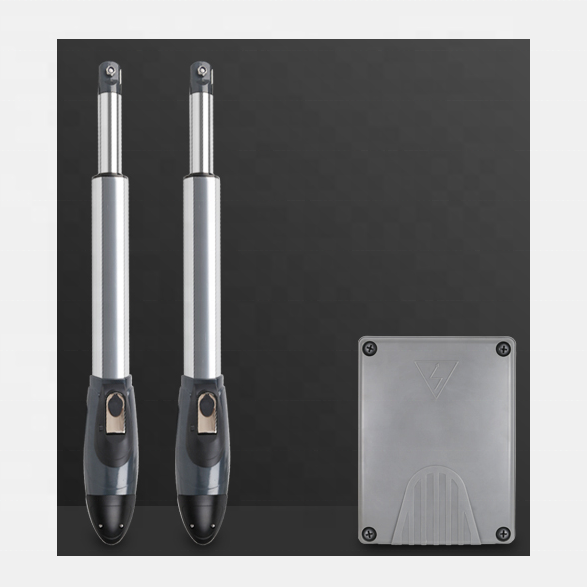

Arm style swing gate motor (Max loading=350KG)
Accessories: Loop detector, Remote controls, Keypad & switch , GSM phone control system
This motor need floor be flat.
|
Item |
Specification |
|
Working power (Vac) |
220 ~ 240Vac @ 50/60 Hz |
|
Motor voltage (Vdc) |
24 |
|
Input power (W) |
100 |
|
Ambient temperature range ( ℃ ) |
-25 ~ +50 |
|
Max weight for single gate leaf (kg) |
350 |
|
Max width for single gate leaf (m) |
1.8 2.5 (with electric lock) |
|
Max open angle ( ° ) |
120 |
|
Protection level (IP) |
X4 |
|
Max travel distance (mm) |
320 |
|
Working period |
Max 50 continuous working cycles for frequent operation |
|
Weight for per gear motor (kg) |
6 |
We also have
Swing gate motor - wheel style gate motor
Wheel style swing gate motor (loading =600KG & 800KG)
Max opening angle: 180 degree.
Working temperature: -25℃ to 55℃
This motor need floor be flat.
∗ Please kindly note that this product is customized, and the price is only for your reference. If need exact price, please contact us before starting order. After confirming the size and your requirements, we will offer the exact quotation.
