Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XPROMISE
-
Model Number:
-
XP-304B
-
Warranty:
-
5 Years
-
Rim clamping:
-
12" - 30"
-
Max. wheel diameter:
-
1000 mm (39")
-
Max. wheel width:
-
450 mm (17")
-
Bead-breaker cylinder force at 10 bar:
-
3000 kg
-
Operating pressure:
-
10 bar (140 psi)
-
Power supply:
-
220V/380V
-
Motor power:
-
0.8kw/1.1kw
-
Max. spindle torque:
-
1200Nm
-
Max. inflating pressure:
-
3,5 bar (50 psi)
-
Packing dimension:
-
1160L x 960W x 1050H
Quick Details
-
Motor Power:
-
0.8KW/1.1KW
-
Operating Pressure:
-
10Bar
-
Power Supply:
-
220V/380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XPROMISE
-
Model Number:
-
XP-304B
-
Warranty:
-
5 Years
-
Rim clamping:
-
12" - 30"
-
Max. wheel diameter:
-
1000 mm (39")
-
Max. wheel width:
-
450 mm (17")
-
Bead-breaker cylinder force at 10 bar:
-
3000 kg
-
Operating pressure:
-
10 bar (140 psi)
-
Power supply:
-
220V/380V
-
Motor power:
-
0.8kw/1.1kw
-
Max. spindle torque:
-
1200Nm
-
Max. inflating pressure:
-
3,5 bar (50 psi)
-
Packing dimension:
-
1160L x 960W x 1050H

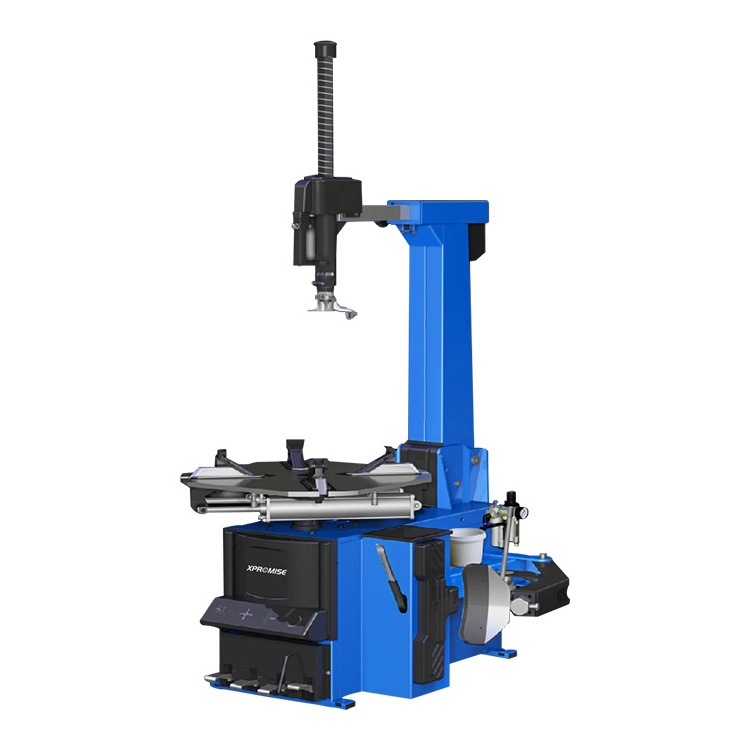

12''-30'' Car Service Station Equipment Automatic Tire Changer Machine to Change Tire for Tyre Changing Repair Garage
|
SPECIFICATION |
XP-304B |
|
Rim clamping |
12" - 30" |
|
Max. wheel diameter |
1200 mm (47") |
|
Max. wheel width |
450 mm (17") |
|
Bead-breaker cylinder force at 10 bar |
3000 kg |
|
Operating pressure |
10 bar (140 psi) |
|
Power supply |
220V/380V |
|
Motor power |
0.8kw/1.1kw |
|
Max. spindle torque |
1200Nm |
|
Max. inflating pressure |
3,5 bar (50 psi) |
|
Packing dimension |
1160L x 960W x 1050H |
|
Gross weight |
310 kg |
FEATURES
1. Tilting vertical arm with pedal control
2. Pneumatic system for lifting/lowering and locking the operating arm
3. 24" turntable
4. Bead-breaker with double effect pneumatic cylinder
5. Oversize body
6. Extractable pedal unit
7. Double turntable speed for 3PH
