Quick Details
-
Hardness:
-
Mid Hard
-
Place of Origin:
-
Vietnam
-
Grade:
-
DX51D, SGCC, G550, S550, S350, ECTS
Quick Details
-
Type:
-
Steel Coil
-
Thickness:
-
0.12-3mm
-
Coating:
-
Z121-Z180
-
Hardness:
-
Mid Hard
-
Place of Origin:
-
Vietnam
-
Grade:
-
DX51D, SGCC, G550, S550, S350, ECTS
|
Technical Standard
|
EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653
|
|
Steel Grade |
DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ,SECC,SECE, BLCE+Z, BLDE+Z, BUSDE+Z
or Customer’s Requirement
|
|
Base Steel
|
Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel
|
|
Thickness
|
0.12-6.0mm
|
|
Width
|
600-1500mm
|
|
Surface Color
|
RAL,wood grain pattern, camouflage pattern , stone pattern, matte pattern , high gloss pattern , flower pattern, etc
|
|
Quality
|
Approved by SGS,ISO
|
|
Coil Weight
|
3-20metric ton per coil
|
|
Package
|
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
|
|
Export market
|
Europe,Africa,Central Asia,Southeast Asia,Middle East,South America,North America, etc
|
Product Introduction

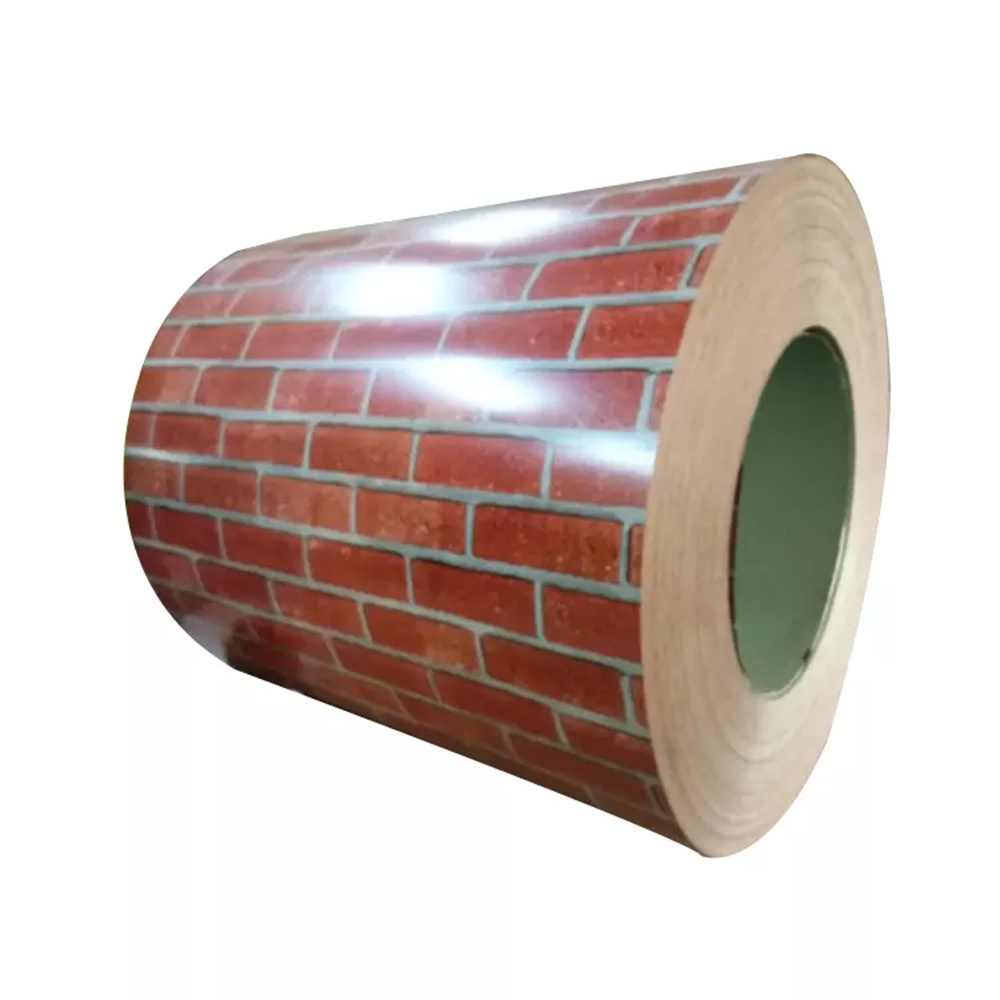

PPGI & PPGL (prepainted galvanized steel & prepainted galvalume steel) also known as pre-coated steel or color coated steel coil,It is a product made of hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, electro galvanized steel sheet,etc.After surface pretreatment, one or several layers of organic coating are applied on the surface, and then baked and solidified.The color coated steel coil is light in weight, beautiful in appearance, and has good anti-corrosion performance, and can bedirectly processed. The color is generally divided into gray, sea blue, brick red, etc. It is mainly used in advertising,construction,decoration, home appliances, electrical appliances, Furniture industry and transportation industry. The coatings used for color coated steel coils are based on the environment in which the resin is selected, such as polyester silicon modified polyester,polyvinyl chloride plastisol, polyvinylidene chloride, and the like.
Product Details
Substrate Type
1.Hot-dip galvanized color coated steel sheet(prepainted galvanized steel sheet)
1.Hot-dip galvanized color coated steel sheet(prepainted galvanized steel sheet)
The product obtained by coating an organic coating on a hot-dip galvanized steel sheet is a hot-dip galvanized color-coated plate. In addition to the protective effect of zinc, the hot-dip galvanized color-coated sheet also protects against rust and has a longer service life than hot-dip galvanized sheet;
2.Hot-dip aluminum-zinc color coated sheet(prepainted galvalume steel sheet)
Hot-dip aluminum-zinc steel sheets can also be used as color-coated substrates (55% AI-Zn and 5% AI-Zn);
3.Electroplated zinc color coated sheet
The electro-galvanized sheet is used as the substrate, and the product obtained by baking with the organic coating is
an electrogalvanized color-coated plate. It has a beautiful appearance and excellent processing properties, and
therefore can be mainly used for home appliances, audio, steel furniture, interior decoration, and the like.
Coating Type
Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.
Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability
and chalking resistance, gloss retention, general flexibility, and medium cost.
High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and anti-pulverization, good paint film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking
resistance,excellent solvent resistance, good moldability, stain resistance, limited color, and high cost.
Product Advantages
1.Good durability and long life compared with galvanized steel.
2.Good heat resistance, less discoloration at high temperature than galvanized steel.
3.Good thermal reflectivity.
4.Processability and spraying performance similar to galvanized steel.
5.Good welding performance.
6.Good performance-price ratio, durable performance and extremely competitive price.
2.Hot-dip aluminum-zinc color coated sheet(prepainted galvalume steel sheet)
Hot-dip aluminum-zinc steel sheets can also be used as color-coated substrates (55% AI-Zn and 5% AI-Zn);
3.Electroplated zinc color coated sheet
The electro-galvanized sheet is used as the substrate, and the product obtained by baking with the organic coating is
an electrogalvanized color-coated plate. It has a beautiful appearance and excellent processing properties, and
therefore can be mainly used for home appliances, audio, steel furniture, interior decoration, and the like.
Coating Type
Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.
Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability
and chalking resistance, gloss retention, general flexibility, and medium cost.
High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and anti-pulverization, good paint film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking
resistance,excellent solvent resistance, good moldability, stain resistance, limited color, and high cost.
Product Advantages
1.Good durability and long life compared with galvanized steel.
2.Good heat resistance, less discoloration at high temperature than galvanized steel.
3.Good thermal reflectivity.
4.Processability and spraying performance similar to galvanized steel.
5.Good welding performance.
6.Good performance-price ratio, durable performance and extremely competitive price.
Production Process
Product Category
Product Application
FAQ
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need
to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to
purchase.
Q:What are the shipping ports?
A:You can choose other ports shipping to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 7-45 days, and may be delayed if the demand is extremely large
qor special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q:What is your working time?
A:In general, our online service time is: 9:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to
purchase.
Q:What are the shipping ports?
A:You can choose other ports shipping to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 7-45 days, and may be delayed if the demand is extremely large
qor special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q:What is your working time?
A:In general, our online service time is: 9:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
