Quick Details
-
Model Number:
-
RV-16-1C25-H
-
Max. Current:
-
16A
-
Operating Temperature:
-
-25~+85℃ , 85%RH max
-
Protection Level:
-
IP40
-
Cover Color:
-
Red & Black
-
Contact Gap:
-
1mm
-
Contact form:
-
SPDT
-
Contact material:
-
Silver contact micro switch
-
Certification:
-
CE, CCC, ROHS
-
Terminal type:
-
0.187'' Quick Connect
-
Electric life:
-
100,000 operations min.
-
Mechanical life::
-
10,000,000 operations min.
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RENEW
-
Model Number:
-
RV-16-1C25-H
-
Max. Current:
-
16A
-
Operating Temperature:
-
-25~+85℃ , 85%RH max
-
Protection Level:
-
IP40
-
Cover Color:
-
Red & Black
-
Contact Gap:
-
1mm
-
Contact form:
-
SPDT
-
Contact material:
-
Silver contact micro switch
-
Certification:
-
CE, CCC, ROHS
-
Terminal type:
-
0.187'' Quick Connect
-
Electric life:
-
100,000 operations min.
-
Mechanical life::
-
10,000,000 operations min.
Product Description

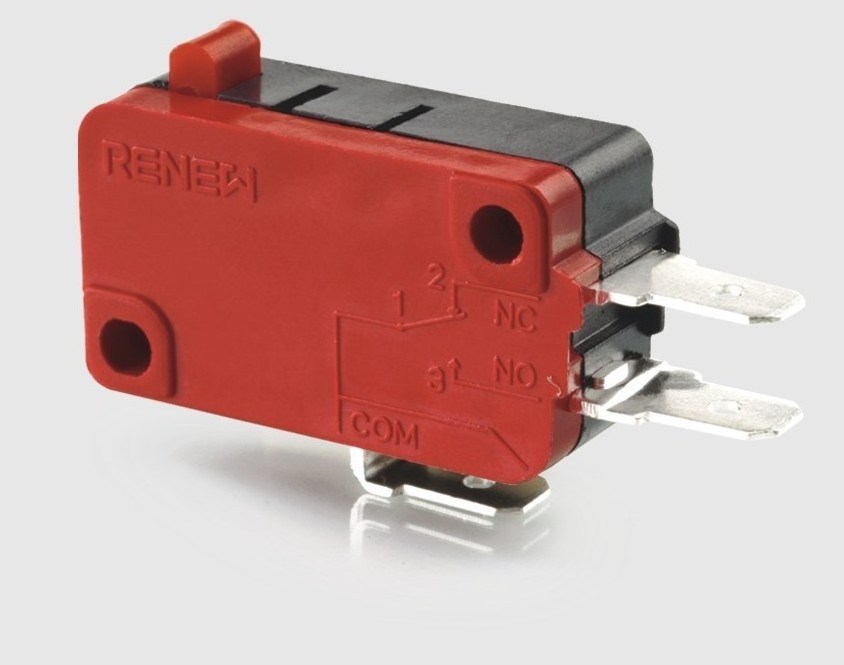

Pin plunger type snap action micro switch.
Model No.: RV-16-1C25-H High temperature
16A, 250VAC, CCC, CE, Approval.
Operating force: 200gf max.
Application:
Home appliance: micro oven, electric cooker, washing machine, electric heater, warmer, water fountain and so on.
Commercial appliance: Vending machine, electric toy, electric tools, duplicating machine and so on.
Machinery: Transport machinery, printing machinery, textile machinery and so on.
|
Rating :
|
21A 16A 11A 6A 250VAC
|
|
|
|
|||
|
Contact form :
|
SPDT/SPST-NC/SPST-NO |
|
|
|
|||
|
Terminals:
|
#187/#250 England made/ Screw fixed terminal/Solder terminal
|
|
|
|
|||
|
Maximum Operating Force
|
50gf-400gf
|
50gf-400gf
|
50gf-400gf
|
50gf-400gf
|
|||
Detailed Images
Packing & Delivery
Packing details:
100pcs/ box
1000pcs/carton carton size: 51*30*22cm
G.W./carton: 10kgs
Or 2000pcs/carton carton size: 51*30*35cm
G.W./ Carton: 20kgs
Delivery:
We always keep enough inventory for this model, ship within one working day after received your payment.
We suggest ship it by express, DHL, TNT, FEDEX, UPS in small qty, or ship by air/sea in large qty.
Related Products
Certifications
Our Company
Our company was founded in 1996. with more than ten years' experience. We are specialized in developing and producing micro switch, limit switch, travel switch, toggle switch, others instrument switch and industry & control switch, connectors, and terminals.
We always concentrate on quality, after-sales service and new products customise.
Our Service
Thank you for visiting our site! We can customise the product according to your requirements, like current rating, operating force, terminal type, color and so on.
If any questions or inquiry,please feel free to cntact us!
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
