Quick Details
-
Brand Name:
-
IGERCN
-
Model Number:
-
TS-GM1
-
Product name:
-
Digital Multifunctional Timer
-
Name:
-
Timer Switch
-
Material:
-
PC Body Copper Spare Parts
-
Function:
-
Countup
-
Warranty:
-
2 Years
-
Logo:
-
Customized Logo
Quick Details
-
Theory:
-
mechanical
-
Usage:
-
Multifunctional
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
IGERCN
-
Model Number:
-
TS-GM1
-
Product name:
-
Digital Multifunctional Timer
-
Name:
-
Timer Switch
-
Material:
-
PC Body Copper Spare Parts
-
Function:
-
Countup
-
Warranty:
-
2 Years
-
Logo:
-
Customized Logo

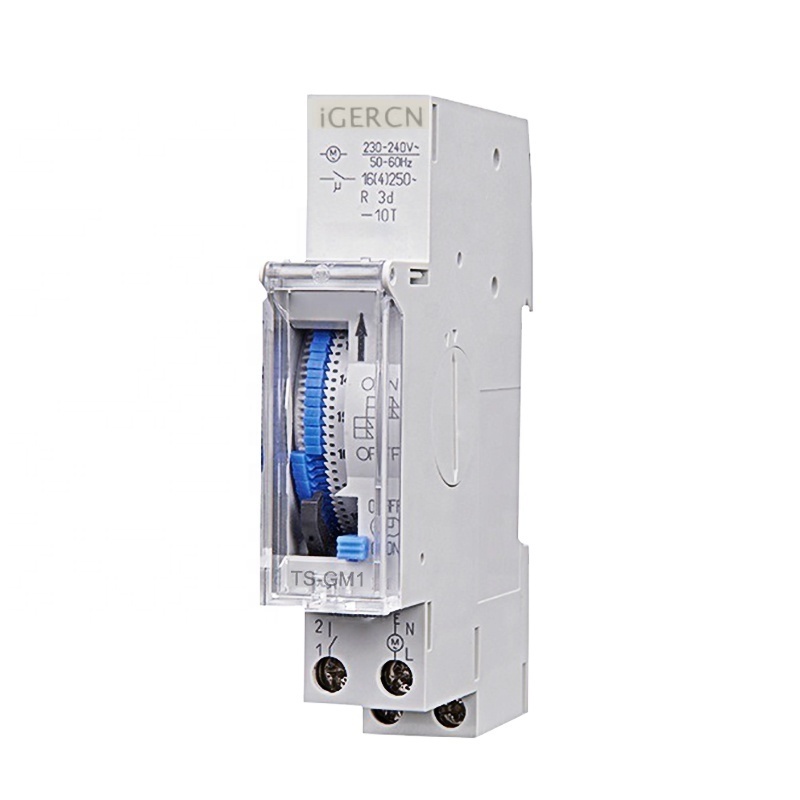

The TS-GM1 type, 15minutes mechanical timer switch, is a simple and low cost alternative for applying that do not require more than 16Amp. It is designed for 24-hour control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system.
Description
- Analogue
mechanical timer switch
- 1 channel, small design
- Daily program
- Quartz controlled
- Shortest switching time: 15 minutes
- 96 switching segments
- Screw terminals
- Manual switch with 2 positions: Permanent ON/AUTO
- There is a backup in the event of a power outage, which is automatically reset when power is restored
Applications
- Billboard or Showcase lighting
- Air-condition
- Pumps/Motor/Geyser/Fan Control
- Boilers / Heater Control
- General Electrical Circuits
- Hydroponic Systems
- Wastewater Treatment Systems
- Generator Exercising
Technical Data
| Type | M echanical timer switch TS-GM1 |
| Operating voltage | 220-240 VAC |
| Frequency | 50-60 Hz |
| Number of channels | 1 |
| Width | 1 module |
| Installation type | DIN-rail |
| Type of connection | Screw terminals |
| Drive | Quartz-controlled stepper motor |
| Program | Daily program |
| Power reserve | 100 hours |
| Max. switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Max. switching capacity at 250 V AC, cos φ = 0.6 | 4 A |
| Incandescent/halogen lamp load | 1000W |
| Energy saving lamps | 150W |
| LED lamp < 2 W | 30W |
| LED lamp 2-8 W | 90W |
| LED lamp > 8 W | 100W |
| Shortest switching time | 15 min |
| Programmable every | 15 min |
| Number of switching segments | 96 |
| Time accuracy at 25 °C | ≤ ± 2 s/day(Quartz) |
| Type of contact | NO contact |
| Switching output | Potential-free and phase-independent |
| Power consumption | 1 VA |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II in accordance with EN 60730-1 |
| Ambient temperature | –10 °C … +50 °C |
Q: Why choose IGERCN ? Any advantages?
A: Yes. Here’s what we have:
(1) Mutual benefit : We are Trade with factory also have more than 8 years experience in manufacturing and developing of the Sockets for Floor and Desktop and S mart home system and outdoor service , and intelligent time switch and photo electric sensor for control lighting . our Price will be compitive with top quality!
(2) Customize : We have strong R&D team in dometic markets i n wenzhou , hangzhou and shenzhen&jiangxi and overseas in Germany and Israel and SA and south America can be custom ized production as your special request.
(3) Free OEM service : (a) Laser –printing your Logo(≥1PC); (b) Molded pressing your Logo(≥ 2 000PCS);(c) Design your color box(≥ 2 000PCS).
(4) Mix order : We accept mix order, different model and small quantity order.
(5) After service: (a) 2 Year Guarantee. (b) within warranty period , If you found any inferior-quality products from us, we will send new relative parts to replace free in your new order shippment
Q: Can I order one piece for sample or trial order less than MOQ to test the quality?
A: Yes, you can be buy the sample to checking our quality before place bulk order. We accept trial order less than MOQ with a little higher price leve l
Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: Yes, you can email to us for getting the E- catalogue and price list in MOQ quantity. Also, you can visit our Website: www. igercn.com for get more details.
