1. Sexteen years of professional experience.
2. The company sets up a r&d team.
3. The product adopts the latest technology and the computer is fully controlled.
4. After-sales installation to support engineers.
5. The company has a team of professional consultants and service personnel to meet the needs of customers for a series of
project-related services.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINHE
-
Application:
-
Planting Vegetables
-
Color:
-
Clear
-
Features:
-
Modern Appearance
-
Structure:
-
Air Ventilation
-
Ventilation:
-
Roof Ventilation
-
Optional system:
-
Cooling System.irrigation System.ventilation.etc
Quick Details
-
Size:
-
Large
-
Type:
-
Multi-Span Agricultural Greenhouses
-
Model Number:
-
xinhe 216
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINHE
-
Application:
-
Planting Vegetables
-
Color:
-
Clear
-
Features:
-
Modern Appearance
-
Structure:
-
Air Ventilation
-
Ventilation:
-
Roof Ventilation
-
Optional system:
-
Cooling System.irrigation System.ventilation.etc
Greenhouse Details

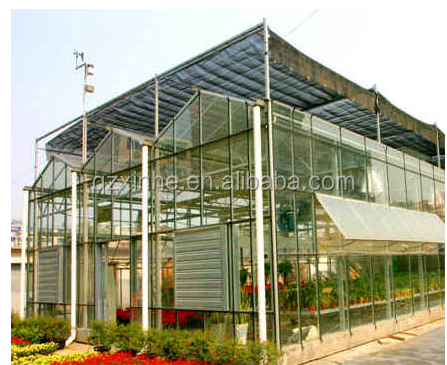

Glass greenhouse is a type of greenhouse that is covered by glass . The glass greenhouse has the longest life, which is suitable for use in a variety of areas, and all kinds of climate conditions.
•Greenhouse Cover: float or tempered glasses, fitted by special aluminum profile together with sealed band
•Ventilation: Single or double roof vents, controlled by the rack and pinion system
•Ventilation: Single or double roof vents, controlled by the rack and pinion system
The specifications
|
Cover
|
Folat Glass / Tempered Glass / Hollow Glass
|
|
Span
|
9.6m / 10.8m / 12m
|
|
Gutter Height
|
3m-6m
|
|
Roof Height
|
3.7m-6.7m
|
|
Ventation
|
side and roof
|
|
Wind load(KN/sqm)
|
0.45
|
|
Snow losd(KN/sqm)
|
0.35
|
|
Max width
|
Customber design
|
|
Length
|
Customber design
|
|
Warranty
|
Usually 4 year's quality guarantee which depends or the mode's you ordered
|
|
Certification
|
ISO 9001:2008
|
In the greenhouse industry, according to the size of the span and width, it is divided into many construction types, and it is
divided into: vegetables glass greenhouse, flowers glass greenhouse, seedling greenhouse glass, glass ecological greenhouse,research glass greenhouse, three-dimensional glass greenhouse, special-shaped glass greenhouse, sightseeing glass greenhouse,intelligent glass greenhouse and so on.
divided into: vegetables glass greenhouse, flowers glass greenhouse, seedling greenhouse glass, glass ecological greenhouse,research glass greenhouse, three-dimensional glass greenhouse, special-shaped glass greenhouse, sightseeing glass greenhouse,intelligent glass greenhouse and so on.
Optional Systems
Cover Metarial
All around and top covered
Folat Glass /
Tempered Glass /
Hollow Glass
Hot Dip Galvanized Steel Structure
The steel structure is made of high quality steel with double side hot galvanized layer which will be not less than 200um. The warranty period of standard skeleton is 15 years, but the actual service life will be more than 20 years.
Outside Shadow System
Material: Black round-wire sunshade net
Advantage: Button control switch , reduce the internal temperature and avoid damages to plants caused by intense sunlight.
Inner shadow System
Material: Aluminum sunshade net.
Advantage: Button control switch, reduce the internal temperature by cutting off excess solar radiation
Advantage: Button control switch, reduce the internal temperature by cutting off excess solar radiation
Ventilation System
Top ventilation: All the middle spans have two electric roll up motors and both of side spans have one electric roll up motor
Side ventilation: Both side have two electric roll up motors.
Cooling System
Introduction: The pads and fans are used together to realize the functions of cooling and ventilation.It's usually about 15℃
Fan size: 1380*1380*400 mm.
Cooling pad high 1.5m, 15cm thickness.
Fan size: 1380*1380*400 mm.
Cooling pad high 1.5m, 15cm thickness.
Our factory
Xinhe greenhouse horticultural Co.,Ltd
XinHe Greenhouse,our company is a professional company which sets greenhouse and supporting facility design, manufacture and research&development in one. The major products include flower market greenhouses, planting greenhouses, aquaculture greenhouses,ecological restaurant greenhouses, glasshouses, spherical greenhouses, sunlight-plate greenhouses,film greenhouses and corresponding accessories.
The main product line covers greenhouse with framework span of 8m, 16m and so on. Additionally, the high-ridge, long-span and wide interspace greenhouses specially designed for ecological dinner are also available. The elegant and exquisite ecological dinner ranges from 9.6~16 meters deep, 6~10 meters high and 6~8 meters wide so that the inside view is pretty spacious and bright.
Meanwhile, Xinhe greenhouse can tailor modern automatic control greenhouse together with accessories that are required according to clients,different requirements.
If you need greenhouse or greenhouse accessories,greenhouse system such like cooling system,warm system,ventlation system,stc.Plz contract me any time.
The main product line covers greenhouse with framework span of 8m, 16m and so on. Additionally, the high-ridge, long-span and wide interspace greenhouses specially designed for ecological dinner are also available. The elegant and exquisite ecological dinner ranges from 9.6~16 meters deep, 6~10 meters high and 6~8 meters wide so that the inside view is pretty spacious and bright.
Meanwhile, Xinhe greenhouse can tailor modern automatic control greenhouse together with accessories that are required according to clients,different requirements.
If you need greenhouse or greenhouse accessories,greenhouse system such like cooling system,warm system,ventlation system,stc.Plz contract me any time.
We have our own factory
Xinhe greenhouse Other products
a. Glass greenhouse
b. multi span tunnel film greenhouse
c. Single span film greenhouse
d.Sunlight greenhouse
eDouble arch double membrane single film greenhouse
f.single arch greenhouse spherical greenhouse
g.Greenhouse system
a. Glass greenhouse
b. multi span tunnel film greenhouse
c. Single span film greenhouse
d.Sunlight greenhouse
eDouble arch double membrane single film greenhouse
f.single arch greenhouse spherical greenhouse
g.Greenhouse system
FAQ
•How long is the delivery time?
-According to your greenhouse size and system, the delivery time is usually 10-60days.
• Can your company supply greenhouse design?
-Our company can give greenhouse design according to your land and plan after deposit. And we can give simple drawing before signing contract.
•How to install greenhouse
-We prepare the material and export.
-You want to save money, we only arrange engineers, and you match local workers. If you think it is hard to do, we also can send engineers and workers to install for you.
•When installing, what cost should we pay?
-our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication
•What is the payment terms?
-usually the deposit is 30%-50% of total value. Before loading, all the balance shoulde be paid off. Or you can give your own
payment terms, then we can negotiate it.
-According to your greenhouse size and system, the delivery time is usually 10-60days.
• Can your company supply greenhouse design?
-Our company can give greenhouse design according to your land and plan after deposit. And we can give simple drawing before signing contract.
•How to install greenhouse
-We prepare the material and export.
-You want to save money, we only arrange engineers, and you match local workers. If you think it is hard to do, we also can send engineers and workers to install for you.
•When installing, what cost should we pay?
-our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication
•What is the payment terms?
-usually the deposit is 30%-50% of total value. Before loading, all the balance shoulde be paid off. Or you can give your own
payment terms, then we can negotiate it.
