Quick Details
-
Brand Name:
-
TAVAS
-
Model Number:
-
DP15H
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
6hp
-
Outlet Size:
-
1.5inch
-
Product name:
-
Diesel high pressure water pump DP15H
-
Engine type:
-
Air-cooled Diesel Engine
-
Engine model:
-
178F
-
Self-primming time(s/4m):
-
30s/4m
-
Max suction head:
-
8m
-
Fuel tank Capacity:
-
3.5L
-
Displacement:
-
296cc
-
Dimensions:
-
56.5*46.5*69cm
-
Net Weight:
-
42kgs
-
options:
-
wheels and handle,high frame
Quick Details
-
Application:
-
Other, Irrigation and Agriculture, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Warranty:
-
1year
-
Brand Name:
-
TAVAS
-
Model Number:
-
DP15H
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
6hp
-
Outlet Size:
-
1.5inch
-
Product name:
-
Diesel high pressure water pump DP15H
-
Engine type:
-
Air-cooled Diesel Engine
-
Engine model:
-
178F
-
Self-primming time(s/4m):
-
30s/4m
-
Max suction head:
-
8m
-
Fuel tank Capacity:
-
3.5L
-
Displacement:
-
296cc
-
Dimensions:
-
56.5*46.5*69cm
-
Net Weight:
-
42kgs
-
options:
-
wheels and handle,high frame

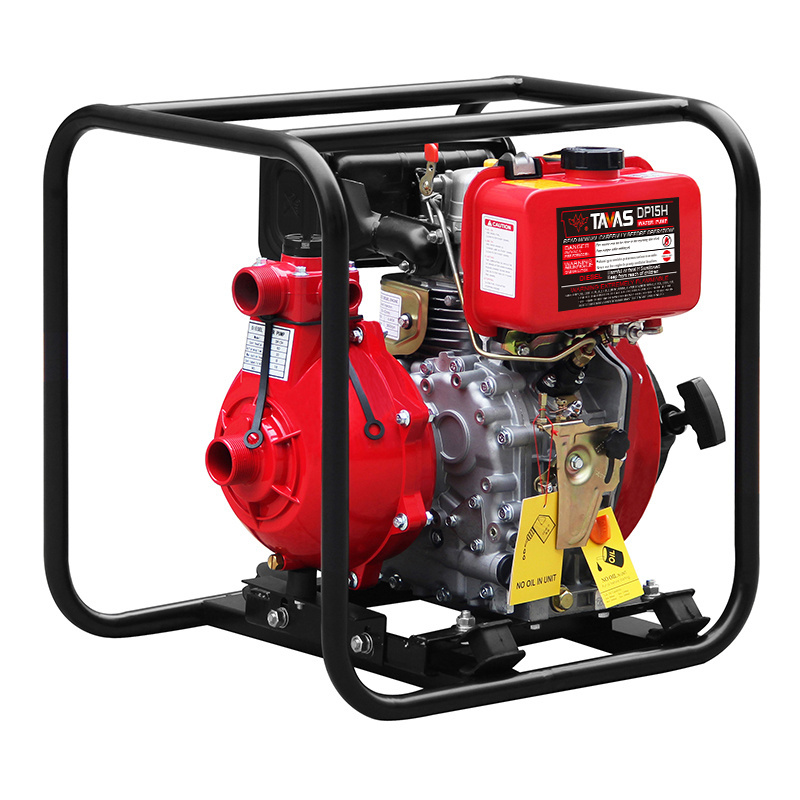

TAVAS DP15HE 178F recoil start high pressure water pump agreculter diesel water pumps
Specification
|
Model
|
|
DP15H
|
|
|
WATER PUMP
|
Suction,discharge port diameter[mm(in)]
|
40(1.5'),
40(1.5')
|
|
|
|
Cont.head(m)
|
60
|
|
|
|
Self-priming time(s/4m)
|
30
|
|
|
|
Max.suction head(m)
|
7
|
|
|
|
Cont.capacity(m3/hr)
|
18
|
|
|
ENGINE
|
Engine moder
|
178F
|
|
|
|
Speed(rpm)
|
3600
|
|
|
|
Type
|
Single-cylinder,vertical,4-stroke air-cooled diesel engine
|
|
|
|
Displacement(cc)
|
296
|
|
|
|
Bore*stroke(mm)
|
78*62
|
|
|
|
Starting system
|
Recoil or Electric
|
|
|
|
Fuel tank capacity(L)
|
3.5
|
|
|
STANDARD FEATURES
|
Connector of infall,Connector of outfall
|
yes
|
|
|
|
Filter
|
yes
|
|
|
|
Seal ring
|
yes
|
|
|
|
Hoop
|
yes
|
|
|
DIMENSIONS
|
Dimension(L*W*H)(mm)
|
570*470*580
|
|
|
|
Gross weight(kg)
|
45
|
|
|
|
20FT
|
192
|
|
