Quick Details
-
Voltage:
-
220V
-
Current:
-
Dependable
-
Rated Capacity:
-
standard
-
Rated Duty Cycle:
-
standard
-
Dimensions:
-
110*72*62CM
-
Use:
-
rework and weld BGA and CSP components
-
Name:
-
BGA repair station
-
Total power:
-
2000W
-
PCB size:
-
Max400*300mm,Min30*10mm
-
Picking components size:
-
Max50*50mm,Min3.5*3.5mm
-
weight:
-
50Kgs
-
Type:
-
Other
-
Certification:
-
CE ISO
Quick Details
-
Applicable Industries:
-
BGA repair
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
TORCH
-
Voltage:
-
220V
-
Current:
-
Dependable
-
Rated Capacity:
-
standard
-
Rated Duty Cycle:
-
standard
-
Dimensions:
-
110*72*62CM
-
Use:
-
rework and weld BGA and CSP components
-
Name:
-
BGA repair station
-
Total power:
-
2000W
-
PCB size:
-
Max400*300mm,Min30*10mm
-
Picking components size:
-
Max50*50mm,Min3.5*3.5mm
-
weight:
-
50Kgs
-
Type:
-
Other
-
Certification:
-
CE ISO

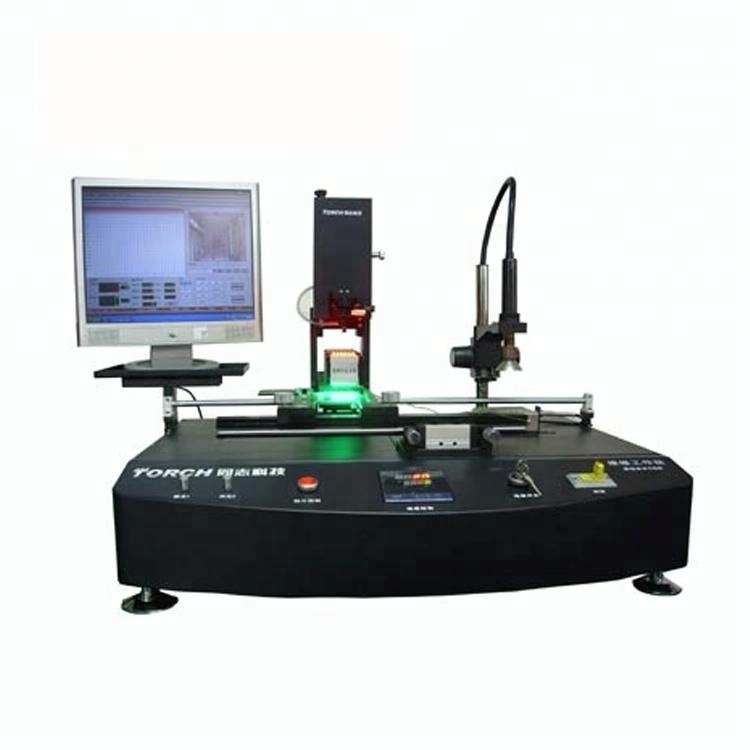

prototype hot air rework station /BGA repair equipment BGA3100
|
dimension |
1100mm*720mm*620mm |
|
Total power |
2000W |
|
Top heating power |
800W |
|
Bottom pre-heating power |
1200W |
|
top hot air heating |
800W |
|
bottom infrared pre-heating |
1200W |
|
voltage |
220V50Hz |
|
Controlling mode |
manual |
|
Picking accuracy |
±0.02mm |
|
Position system |
Double prismatic technology |
|
PCB size |
Max400*300mm,Min30*10mm |
|
PCB thickness |
0.5-3mm |
|
Software controlling system |
Base on windows software |
|
Picking components size |
Max50*50mm,Min3.5*3.5mm |
|
Picking strength |
2.0N |
|
Temperature controlling system |
Intelligent temperature controlling system, closed loop control |
|
PCB transmission |
Move by hand |
|
PCB drive |
Precision orbit |
|
profile |
40 segment temperature |
|
weight |
About 50kgs |
|
monitor standard configuration 14 1 set nozzlestandard configuration 3 pcs BGA reball steel net standard configuration
Tips: The following equipments are necessary for a full set: BGA rework table, planting ball table, BGA moulding board, booster flux pen, different BGA solder ball, booster flux, scraper, brand iron, goot wick.
|
|
