Quick Details
-
Model Number:
-
ACM1281S-C7
-
Place of Origin:
-
Guangdong, China
-
Dimensions:
-
106.6 mm (L) x 67.0 mm (W) x 16.0 mm (H)
-
Operating Distance:
-
Up to 50 mm (depends on the tag type)
-
Supply Voltage:
-
Regulated 5V DC
-
Operating Frequency:
-
13.56 MHz
-
Compliance/Certifications:
-
RoHS Compliant
-
CLK Frequency:
-
3.58 MHz
-
Operating Temperature:
-
0-50°C
-
Operating System Support:
-
NT, 2000, Server 2003, XP, Vista, Server 2008,
-
Supply Current:
-
Approx. 40 mA for standby mode
Quick Details
-
Type:
-
Other Type
-
Interface:
-
RS232
-
Brand Name:
-
HCCTG
-
Model Number:
-
ACM1281S-C7
-
Place of Origin:
-
Guangdong, China
-
Dimensions:
-
106.6 mm (L) x 67.0 mm (W) x 16.0 mm (H)
-
Operating Distance:
-
Up to 50 mm (depends on the tag type)
-
Supply Voltage:
-
Regulated 5V DC
-
Operating Frequency:
-
13.56 MHz
-
Compliance/Certifications:
-
RoHS Compliant
-
CLK Frequency:
-
3.58 MHz
-
Operating Temperature:
-
0-50°C
-
Operating System Support:
-
NT, 2000, Server 2003, XP, Vista, Server 2008,
-
Supply Current:
-
Approx. 40 mA for standby mode
Product Description

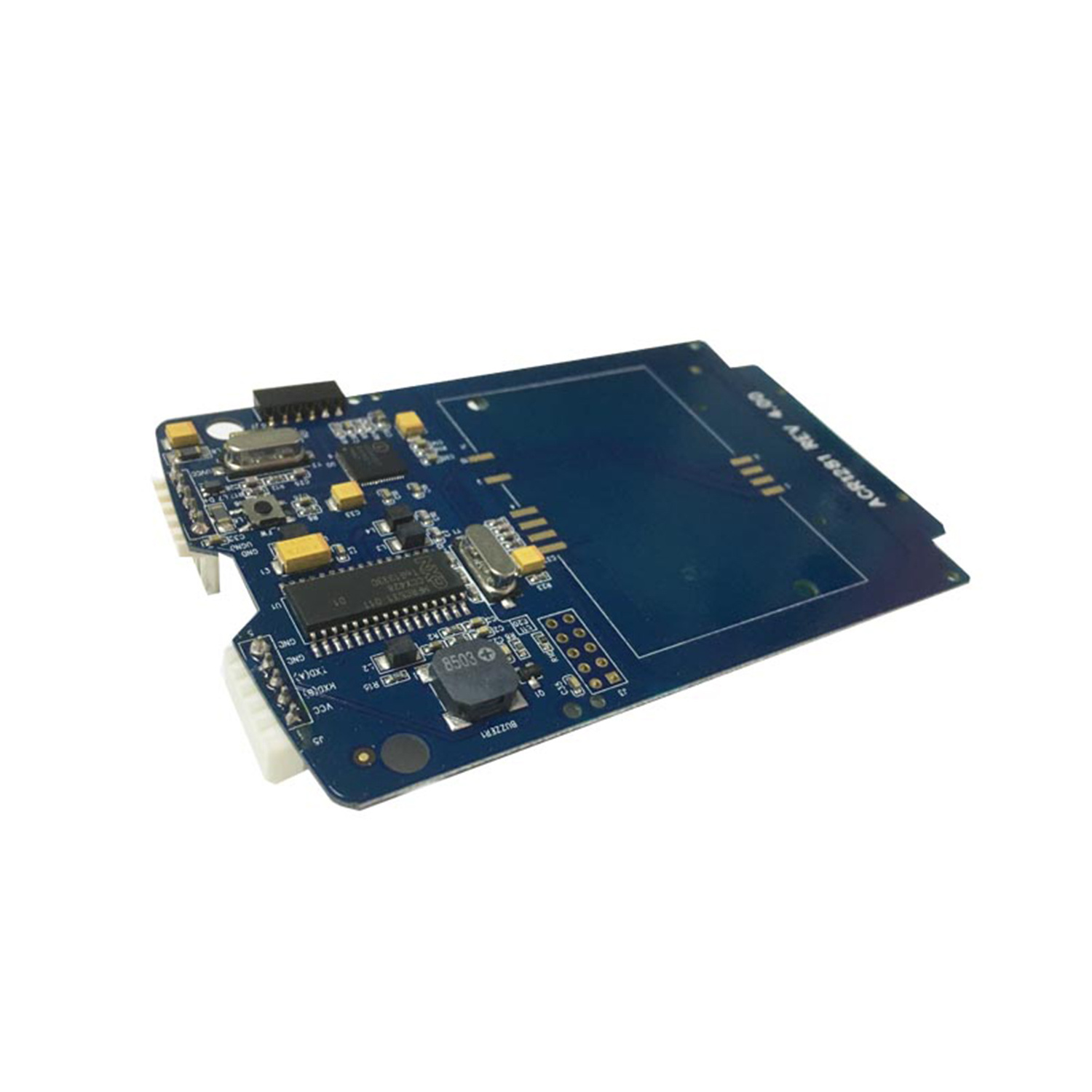

The ACM1281S-C7 Serial Contactless Reader Module with
SAM Slot
was designed based on
13.56 MHz
technology for fast and easy integration into embedded systems. It is a plug-and-play device that does not require any driver installation.
ACM1281S-C7 supports ISO 14443 Parts 1-4 Type A and B cards, and MIFARE Classic series. It has a card reading distance of up to 50mm (depending on tag type). Moreover, it has an ISO 7816‒compliant built-in SAM (Secure Access Module) slot, which can be used with a SAM card for high-level security in contactless transactions.
ACM1281S-C7 supports ISO 14443 Parts 1-4 Type A and B cards, and MIFARE Classic series. It has a card reading distance of up to 50mm (depending on tag type). Moreover, it has an ISO 7816‒compliant built-in SAM (Secure Access Module) slot, which can be used with a SAM card for high-level security in contactless transactions.
Product Paramenters
Feature
1.
Serial RS232 Interface
2.
USB interface for power supply
3.
CCID-like frame format (binary format)
4.
USB Firmware Upgradeability
5.
Smart Card Reader:
Supports ISO 14443 Part 4 Type A and B cards and MIFARE Classic series Built-in anti-collision feature (only 1 tag is accessed at any time)
Supports extended APDU (max. 64 KBYTES) 6. Contactless Interface:
Supports extended APDU (max. 64 KBYTES) 6. Contactless Interface:
Read/write speed up to 848 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
7.
SAM Interface:
ISO 7816‒compliant SAM slot, Class A (5V)
8.
Peripherals:
User-controllable bi-color LED
User-controllable buzzer
User-controllable bi-color LED
User-controllable buzzer
|
Dimensions
|
106.6 mm (L) x 67.0 mm (W) x 16.0 mm (H)
|
|
Weight
|
20.8 g
|
|
Interface
|
RS232 for data communication
USB for power transmission |
|
Operating Distance
|
Up to 50 mm (depends on the tag type)
|
|
Supply Voltage
|
Regulated 5V DC
|
|
Supply Current
|
Max. 200mA
|
|
Operating Temperature
|
0-50°C
|
|
Operating Frequency
|
13.56 MHz
|
|
Smart Card Interface Support
|
ISO 14443 Type A & B
MIFARE |
|
Compliance / Certifications
|
ISO 14443, ISO 7816, CE, FCC, ROHS 2, REACH
|
|
Operating
System Support |
Win 2000, Win XP, Win Vista, Win 7, Win 8, Win 8.1, Win Server 2003, Win Server 2008 ,Win XP x64, Win Vista x64, Win 7 x64, Win 8 x64, Win 8.1 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64, Win Server 2012 x64, Win Server 2012 R2 x64Linux
|
