Model Number:
-
Hantek2D72
-
NAME:
-

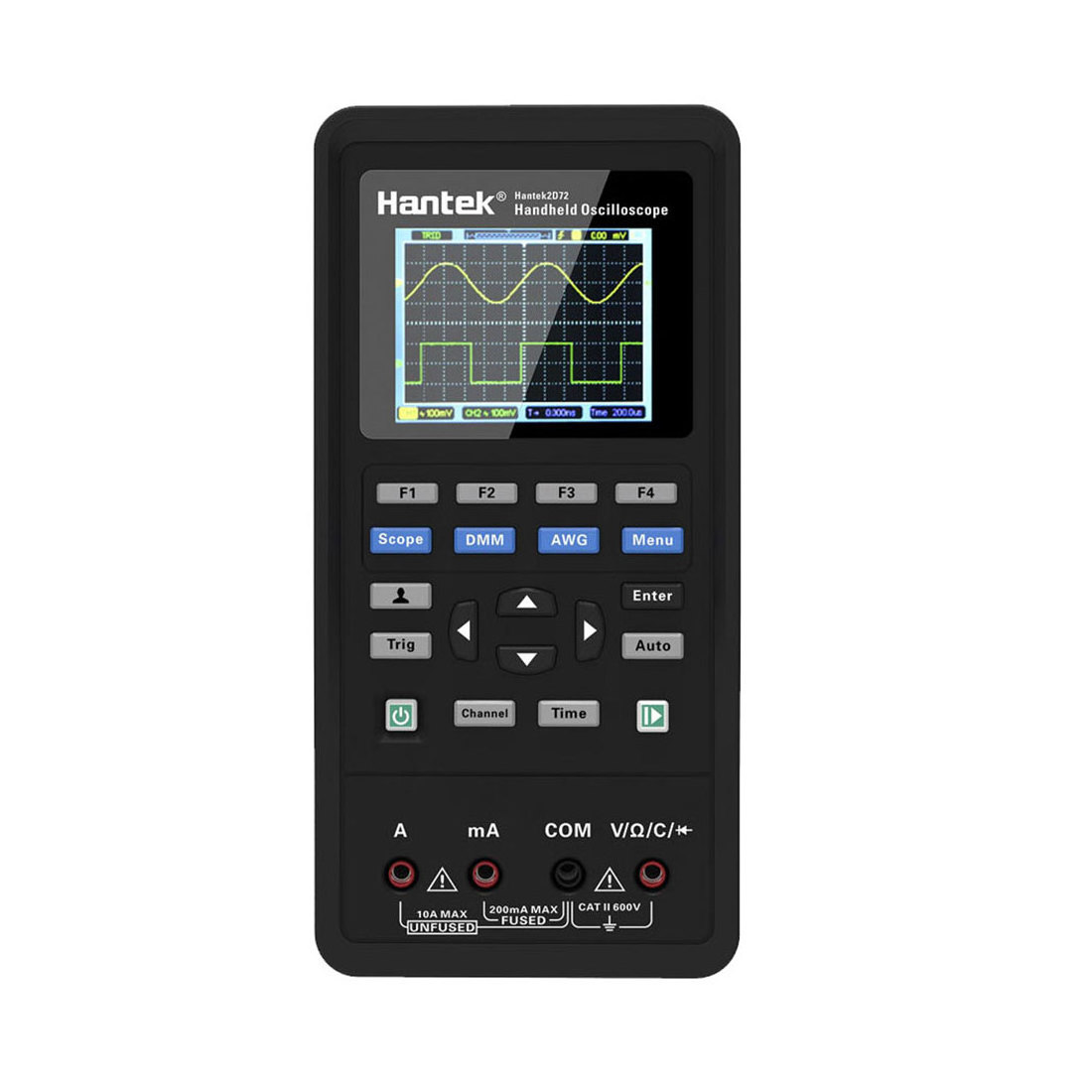

Hantek2D72 70MHz 2CH+DMM+AWG 250MSa/s handheld oscilloscope
-
Bandwidth:
-
70MHz
-
Channel:
-
2CH+DMM+AWG
-
Sample Rate Range:
-
250MSa/s(Dual-channel)
-
Waveform Interpolation:
-
(sin x)/x
-
Record Length:
-
3K samples per dual-channel
-
SEC/DIV Range:
-
5ns/div~500s/div 1, 2, 5 sequence
-
A/D Converter:
-
8-bit resolution,each channel sampled simultaneously
-
VOLTS/DIV Range:
-
10mV/div~10V/divat input BNC
-
Bandwidth Limit, typical:
-
20MHz
Quick Details
-
Type:
-
DIGITAL ONLY
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hantek
-
Model Number:
-
Hantek2D72
-
NAME:
-
Hantek2D72 70MHz 2CH+DMM+AWG 250MSa/s handheld oscilloscope
-
Bandwidth:
-
70MHz
-
Channel:
-
2CH+DMM+AWG
-
Sample Rate Range:
-
250MSa/s(Dual-channel)
-
Waveform Interpolation:
-
(sin x)/x
-
Record Length:
-
3K samples per dual-channel
-
SEC/DIV Range:
-
5ns/div~500s/div 1, 2, 5 sequence
-
A/D Converter:
-
8-bit resolution,each channel sampled simultaneously
-
VOLTS/DIV Range:
-
10mV/div~10V/divat input BNC
-
Bandwidth Limit, typical:
-
20MHz
Features
Hantek2D72 70MHz 2CH+DMM+AWG 250MSa/s handheld oscilloscope
*
Oscilloscope + Waveform Generator + Multimeter
: This multi-purpose station own three universal test instrument functions. It is outgoing right-hand product for engineers.
* Intelligent charging control : Its lithium batteries can be recharged byeither high current-5V/2A or ordinary computer USB interface. Allow while charging, while using, very convenient and handy;
* Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months;
* Large-capacity lithium battery power supply : 18650 replaceable lithium battery power system, free from replace battery; * 5V/2A charger + Type C charging cable: Type C power + data transfer interface, can share the charger and data cable with your mobile phone;
* AUTO one-key test : Magic tool and essential function for test newbie;
* Volume small, one hand holding : The 45 degree suspension bracket design provide you a work station anywhere anytime;
* One key page out , quick compare two groups of reference waveforms + 6 groups of waveforms storage, simple and effective;
* Digital voltmeter function : automatic frequency and amplitude measurement, convenient and worry-free;
* Its cursor measurement functionsupports time and voltage manual measurement, and measure the required waveforms accurately;
* One-click switching its Chinese and English language menu;
* Color LCD screen : exquisite and smooth lines make the waveforms clear and undistorted when magnify;
* Minimalist keyboard design simplify operation, convenient to use;
* Unibody casing : fine touch feeling, favorable impact resistance, outstanding heat resistance, easy to disassemble;
* Self-calibration function : free from level drift after long time unused;
* Universal multimeter function : voltage, current, resistance, diode, capacitor, on-off test;
* Waveform generator output function : output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;
* Function of video help ：scan code on back of machine to get help of video course;
* The PC software supports windows7/8/10 32-bit and 64-bit.
* Intelligent charging control : Its lithium batteries can be recharged byeither high current-5V/2A or ordinary computer USB interface. Allow while charging, while using, very convenient and handy;
* Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months;
* Large-capacity lithium battery power supply : 18650 replaceable lithium battery power system, free from replace battery; * 5V/2A charger + Type C charging cable: Type C power + data transfer interface, can share the charger and data cable with your mobile phone;
* AUTO one-key test : Magic tool and essential function for test newbie;
* Volume small, one hand holding : The 45 degree suspension bracket design provide you a work station anywhere anytime;
* One key page out , quick compare two groups of reference waveforms + 6 groups of waveforms storage, simple and effective;
* Digital voltmeter function : automatic frequency and amplitude measurement, convenient and worry-free;
* Its cursor measurement functionsupports time and voltage manual measurement, and measure the required waveforms accurately;
* One-click switching its Chinese and English language menu;
* Color LCD screen : exquisite and smooth lines make the waveforms clear and undistorted when magnify;
* Minimalist keyboard design simplify operation, convenient to use;
* Unibody casing : fine touch feeling, favorable impact resistance, outstanding heat resistance, easy to disassemble;
* Self-calibration function : free from level drift after long time unused;
* Universal multimeter function : voltage, current, resistance, diode, capacitor, on-off test;
* Waveform generator output function : output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;
* Function of video help ：scan code on back of machine to get help of video course;
* The PC software supports windows7/8/10 32-bit and 64-bit.
Details Images
Great function with small size!
Minimalist keyboard design simplify operation, easy to use.
Minimalist keyboard design simplify operation, easy to use.
Oscilloscope + Waveform Generator + Multimeter:
Multi-purpose station own three universal test instrument functions. Outgoing right-hand product for engineers.
Multi-purpose station own three universal test instrument functions. Outgoing right-hand product for engineers.
Waveform Generator Function
A multipurpose instrument that helps complete your tasks more quickly, improves work
efficiency, and meets all your current and future test needs.
A multipurpose instrument that helps complete your tasks more quickly, improves work
efficiency, and meets all your current and future test needs.
Multifunction Digital Multimeter Function
High sensitivity and accuracy, showing clear, stronganti-overload capability, easy to carry.
High sensitivity and accuracy, showing clear, stronganti-overload capability, easy to carry.
Intelligent Charging Control
Be able to recharged by 5V/2A large current or ordinary computer USB port, measurement can be done even while charging,
convenience and user-friendly.
Be able to recharged by 5V/2A large current or ordinary computer USB port, measurement can be done even while charging,
convenience and user-friendly.
Large-capacity Lithium Battery + Ultra Low Power + Type C Data Transfer/Charging Interface
18650 replaceable lithium battery power system, free from replace battery;
Be able to recharged by 5V/2A large current or ordinary computer USB port,allow while charging,
while using, very convenient and handy;
Type C charging interface, after every recharge of 2 hours, the device can be used continuously for
a full day or standby more than two months;
Type C power + data transfer interface, can share the charger and data cable with your mobile phone;
18650 replaceable lithium battery power system, free from replace battery;
Be able to recharged by 5V/2A large current or ordinary computer USB port,allow while charging,
while using, very convenient and handy;
Type C charging interface, after every recharge of 2 hours, the device can be used continuously for
a full day or standby more than two months;
Type C power + data transfer interface, can share the charger and data cable with your mobile phone;
Suspended Support, Multiangular Adjusting, Let you Enjoy Convenience
Function Review
Connectors Review
Interface Review
Powerful PC software
Oscilloscope powerful functions: 20 kinds of automatic measurement, cursor measurement,
waveform printing and saving functions, REF and Math functions, Pass / Fail functions.
Oscilloscope powerful functions: 20 kinds of automatic measurement, cursor measurement,
waveform printing and saving functions, REF and Math functions, Pass / Fail functions.
The waveform generator is able to draw and output arbitrary waveforms on its PC software
Its multimeter with recorder function, which support the measurement resultsto nerate the curves and analyze them
Accessories
Product Paramenters
|
Model
|
Hantek2D72
|
Hantek2D42
|
Hantek2C72
|
Hantek2C42
|
||||
|
Oscilloscope Mode
|
|
|
|
|
||||
|
Bandwidth
|
70MHz
|
40MHz
|
70MHz
|
40MHz
|
||||
|
Channel
|
2CH+DMM+AWG
|
2CH+DMM+AWG
|
2CH+DMM
|
2CH+DMM
|
||||
|
|
|
|
|
|
||||
|
Horizontal
|
|
|
|
|
||||
|
Sample Rate Range
|
250MSa/s(Single-channel), 125MSa/s(Dual-channel)
|
|
|
|
||||
|
Waveform Interpolation
|
(sin x)/x
|
|
|
|
||||
|
Record Length
|
Max. 6K for single-channel; 3K samples per dual-channel
|
|
|
|
||||
|
SEC/DIV Range
|
5ns/div~500s/div 1, 2, 5 sequence
|
|
|
|
||||
|
Vertical
|
|
|
|
|
||||
|
A/D Converter
|
8-bit resolution,each channel sampled simultaneously
|
|
|
|
||||
|
VOLTS/DIV Range
|
10mV/div~10V/divat input BNC
|
|
|
|
||||
|
Bandwidth Limit, typical
|
20MHz
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Low Frequency Response (-3db)
|
≤10Hz at BNC
|
|
|
|
||||
|
Rise Time at BNC, typical
|
≤5ns
|
|
|
|
||||
|
DC Gain Accuracy
|
±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
|
|
|
|
||||
|
Note: Bandwidth reduced to 6MHz when using a 1X probe.
|
|
|
|
|
||||
|
Acquisition
|
|
|
|
|
||||
|
Acquisition Modes
|
Normal
|
|
|
|
||||
|
Trigger
|
|
|
|
|
||||
|
Type
|
Edge
|
|
|
|
||||
|
Mode
|
Auto, Normal, single
|
|
|
|
||||
|
Level
|
±4 divisions from center of screen
|
|
|
|
||||
|
Trigger Level Accuracy
|
0.2div × volts/div within ±4 divisions from center of screen
|
|
|
|
||||
|
Slope
|
Rising, Falling, Rising & Falling
|
|
|
|
||||
|
Source
|
CH1/CH2
|
|
|
|
||||
|
Input
|
|
|
|
|
||||
|
Coupling
|
DC, AC or GND
|
|
|
|
||||
|
Input Impedance,
|
25pF±3 pF, 1MΩ±2%
|
|
|
|
||||
|
DC coupled
|
|
|
|
|
||||
|
Probe Attenuation
|
1X, 10X
|
|
|
|
||||
|
Supported Probe Attenuation Factors
|
1X, 10X, 100X, 1000X
|
|
|
|
||||
|
Maximum Input Voltage
|
150VRMS
|
|
|
|
||||
|
Measurement
|
|
|
|
|
||||
|
Cursor
|
Voltage difference between cursors: △V
|
|
|
|
||||
|
|
Time difference between cursors: △T
|
|
|
|
||||
|
Automatic Measurements
|
Frequency, Amplitude
|
|
|
|
||||
|
Arbitrary Waveform Generator Mode
|
|
|
|
|
||||
|
Waveform Frequency
|
Sine: 1Hz~25MHz
|
|
-
|
-
|
||||
|
|
Square: 1Hz~10MHz
|
|
-
|
-
|
||||
|
|
Ramp: 1Hz~1MHz
|
|
-
|
-
|
||||
|
|
EXP: 1Hz~5MHz
|
|
-
|
-
|
||||
|
Sampling
|
250MSa/s
|
|
-
|
-
|
||||
|
Amplitude
|
2.5Vpp(50Ω)
|
|
-
|
-
|
||||
|
|
5Vpp(High impedance)
|
|
-
|
-
|
||||
|
Frequency Resolution
|
0.10%
|
|
-
|
-
|
||||
|
Channel
|
1CH waveform output
|
|
-
|
-
|
||||
|
Waveform Depth
|
512Sa
|
|
-
|
-
|
||||
|
Vertical Resolution
|
12 bit
|
|
-
|
-
|
||||
|
Output Impedance
|
50 Ω
|
|
-
|
-
|
||||
|
DMM
|
|
|
|
|
||||
|
Maximum Resolution
|
4000 Counts
|
|
|
|
||||
|
DMM Testing Modes
|
Voltage,Current,Resistance,Capacitance,Diode &On-Off
|
|
|
|
||||
|
Maximum Input Voltage
|
AC:600V, DC: 600V
|
|
|
|
||||
|
Maximum Input Current
|
AC: 10A, DC:10A
|
|
|
|
||||
|
Input Impedance
|
10MΩ
|
|
|
|
||||
|
Measurement Term
|
Range
|
Accuracy
|
Resolution
|
|
||||
|
DC Voltage
|
400.00mV
|
± (0.8% + 5)
|
100uV
|
|
||||
|
|
4.000V
|
|
1mV
|
|
||||
|
|
40.00V
|
|
10mV
|
|
||||
|
|
400.0V
|
|
100mV
|
|
||||
|
|
600.0V
|
± (1% + 2)
|
1V
|
|
||||
|
|
Overload protection: 400mV: 250V, other: 600Vrms.
|
|
|
|
||||
|
AC Voltage
|
4.000V
|
± (1.2% + 5)
|
1mV
|
|
||||
|
|
40.00V
|
|
10mV
|
|
||||
|
|
400.0V
|
|
100mV
|
|
||||
|
|
600.0V
|
±(1.5% + 5)
|
1V
|
|
||||
|
|
Frequency: 40Hz~400Hz;
|
|
|
|
||||
|
|
Frequency of 400V and 600V: 40Hz~100Hz
|
|
|
|
||||
|
DC Current
|
40.00mA
|
± (1% + 2)
|
10uA
|
|
||||
|
|
200.0mA
|
± (1.5% + 2)
|
100uA
|
|
||||
|
|
4.000A
|
± (1.8% + 2)
|
1mA
|
|
||||
|
|
10.00A
|
± (3% + 2)
|
10mA
|
|
||||
|
|
Overload protection:
|
|
|
|
||||
|
|
self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
|
|
|
|
||||
|
AC Current
|
40.00mA
|
± (1.3% + 2)
|
10uA
|
|
||||
|
|
400.0mA
|
± (1.8% + 2)
|
100uA
|
|
||||
|
|
4.000A
|
± (2% + 3)
|
1mA
|
|
||||
|
|
10.00A
|
± (3% + 5)
|
10mA
|
|
||||
|
|
Frequency: 40Hz~400Hz;
|
|
|
|
||||
|
|
self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
|
|
|
|
||||
|
Resistance
|
400.0Ω
|
±(1% + 3)
|
0.1Ω
|
|
||||
|
|
4.000KΩ
|
±(1.2% + 5)
|
1Ω
|
|
||||
|
|
60.00KΩ
|
|
10Ω
|
|
||||
|
|
400.0KΩ
|
|
100Ω
|
|
||||
|
|
4.000MΩ
|
|
1KΩ
|
|
||||
|
|
40.00MΩ
|
± (1.5%±3)
|
10KΩ
|
|
||||
|
|
Overload protection: 220Vrms
|
|
|
|
||||
|
Capacitance
|
40.00nF
|
±(3% + 5)
|
10pF
|
|
||||
|
|
400.0nF
|
|
100pF
|
|
||||
|
|
4.000uF
|
|
1nF
|
|
||||
|
|
40.00uF
|
|
10nF
|
|
||||
|
|
100.0uF
|
|
100nF
|
|
||||
|
|
Overload protection: 220Vrms
|
|
|
|
||||
|
Diode
|
0V~1.0V
|
|
|
|
||||
|
On-Off
|
<50Ω
|
|
|
|
||||
|
General Specifications
|
|
|
|
|
||||
|
Display
|
|
|
|
|
||||
|
Display Type
|
2.8 inch64K color TFT
|
|
|
|
||||
|
Display Resolution
|
320 horizontal by 240 vertical pixels
|
|
|
|
||||
|
Display Contrast
|
Adjustable
|
|
|
|
||||
|
Power Supply
|
|
|
|
|
||||
|
Supply Voltage
|
100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A
|
|
|
|
||||
|
Power Consumption
|
<2.5W
|
|
|
|
||||
|
Fuse
|
T, 3A
|
|
|
|
||||
|
Battery
|
2600mA*2
|
|
|
|
||||
|
Environmental
|
|
|
|
|
||||
|
Operating Temperature
|
0~50 °C (32~122 °F)
|
|
|
|
||||
|
Storage Temperature
|
-40~+71 °C (-40~159.8 °F)
|
|
|
|
||||
|
Humidity
|
≤+104℉(≤+40°C): ≤90% relative humidity
|
|
|
|
||||
|
|
106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
|
|
|
|
||||
|
Cooling Method
|
Convection
|
|
|
|
||||
|
Altitude
|
Operating and
|
3,000m (10,000 feet)
|
|
|
||||
|
|
Nonoperating
|
|
|
|
||||
|
Mechanical Shock
|
Random Vibration
|
0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis
|
|
|
||||
|
|
Nonoperating
|
2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis
|
|
|
||||
|
|
Operating
|
50g, 11ms, half sine
|
|
|
||||
|
Mechanical
|
|
|
|
|
||||
|
Dimension
|
199 x 98x 40mm (L x W x H)
|
|
|
|
||||
|
Weight
|
624g
|
|
|
|
||||
|
Standard Accessories
|
Probe*1,Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1
|
Probe*1,Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1
|
Probe*1,Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1
|
Probe*1,Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1
|
||||
