Quick Details
-
Resolution:
-
4k*2k@60hz
-
Connector:
-
HDMI
-
Accessories:
-
5V1A Power/ Manual
-
color:
-
black
-
Material:
-
Aluminum
-
Warranty:
-
1 Year
-
Package:
-
Color Box
-
Certifications:
-
CE FCC ROHS
-
HDMI version:
-
HDMI 2.0
Quick Details
-
Model Number:
-
JL-4K0102D
-
Brand Name:
-
JustLink
-
Place of Origin:
-
Guangdong, China
-
Resolution:
-
4k*2k@60hz
-
Connector:
-
HDMI
-
Accessories:
-
5V1A Power/ Manual
-
color:
-
black
-
Material:
-
Aluminum
-
Warranty:
-
1 Year
-
Package:
-
Color Box
-
Certifications:
-
CE FCC ROHS
-
HDMI version:
-
HDMI 2.0
Products Description

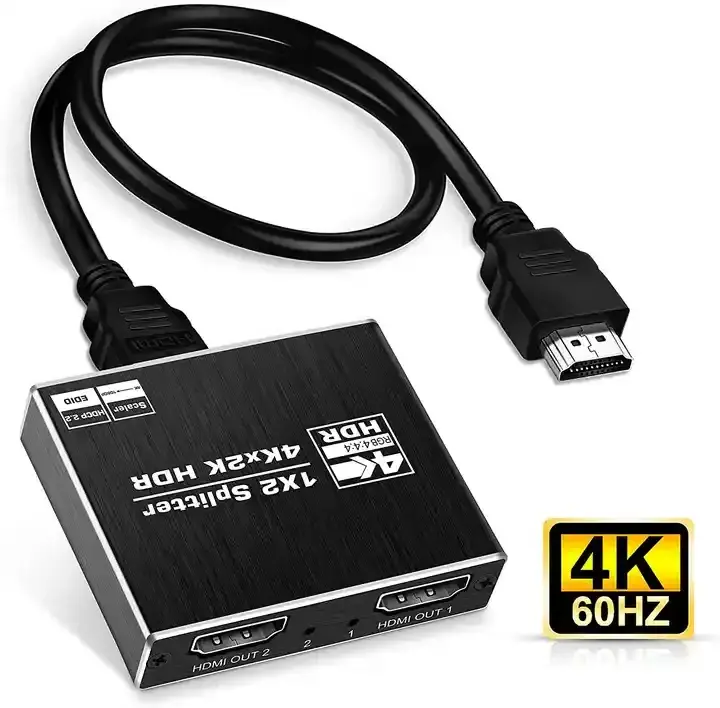

1x2 HDMI 2.0 Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to
2 HDMI compatible monitors or projectors. In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI
signal. The resolution of this hdmi splitter can be up to 3840x2160@60Hz.
2 HDMI compatible monitors or projectors. In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI
signal. The resolution of this hdmi splitter can be up to 3840x2160@60Hz.
Specification
|
product name
|
HDMI2.0b splitter 1X2 4K/60HZ(RGB) with HDCP decoding
|
|
Color
|
Black
|
|
Material
|
Metal
|
|
HDMI Version
|
HDMI 2.0b, HDCP 2.2
|
|
HDMI Resolution
|
24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
|
|
Video color format
|
24bit/deep color 30bit, 36bit, 48bit
|
|
Audio format
|
600MHz
|
|
Max baud rate
|
18.5Gbps
|
|
Input/Output TMDS signal
|
0.5~1.5Volts p-p(TTL)
|
|
Input/Output DDC signal
|
5Volts p-p (TTL)
|
|
Input cable distance
|
≤17ft AWG28 HDMI standard cable
|
|
Output cable distance
|
≤17ft AWG28 HDMI standard cable
|
|
Max working current
|
1200mA
|
|
Power adapter format Input
|
AC100V-240V (50/60Hz) ; Output: DC 5V/2A
|
|
Operating Temperature range
|
(-15 to +55℃)
|
|
Operating Humidity range
|
5 to 90%RH (No Condensation)
|
Features
* Fully HDMI2.0 Specification compliant. It is applicable to source device and high definition display terminaldevice such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces.
* On-chip HDMI Receiver and Transmitter core which are compliant with DVI 1.0,HDMI1.4 and HDMI 2.0specification ON-chip HDCP RX/TX ciphers which are compliant withHDCP 2.2specification.
* Wide Frequency Range: 25MHz-600MHz.
* Supports high resolutions up to 3840×2160 @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
* Supports jitter Clean capability for more cascadable stages.
* Supports 12-bit Deep Full HD, Full 3D and 4K@ 60Hz video.
* Supports standard Audio,DSD Audio and HD(HBR)Audio.
* Supports 1 DVI/HDMI input port and 2 DVI/HDMI output ports.
* Supports conversion of HDMI signal to DVI/HDMI signal.
* SupportsHDMI 2.0b and HDCP 2.2& HDR10for 4K@60Hz.
* SupportsRGB 8:8:8(support Dolby atmos), YCbCr 4:4:4, YCbCr 4:2:2,YCbCr 4:2:0.
* Support Auto mode:automatically matched to the format of hdmi input source.
* Support Copy mode:copy the EDID of TV with lowest resolution.
* Support Mixed mode:fixed 1080P of the HDMI out 2.The HDMI out one will output HDR 10 4K@60Hz signal,the HDMI out two will output full HD 1080P@60Hz signal.
* Supports on-chip 512 byte E-DDC EDID RAM for input port.
* Supports hot plug-play.
* Support Mode：LED indicates signal and power mode
* Support Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
* Support AWG26/AWG28 HDMI 2.0 cable length: Up to 17 ft
* Cascadable to make more than 2 output ports.
* Provide companion HDCP 2.2 Controller(EPF025R)with integrated HDCP keys.
* Power supply(please refer to technical parameter).
* On-chip HDMI Receiver and Transmitter core which are compliant with DVI 1.0,HDMI1.4 and HDMI 2.0specification ON-chip HDCP RX/TX ciphers which are compliant withHDCP 2.2specification.
* Wide Frequency Range: 25MHz-600MHz.
* Supports high resolutions up to 3840×2160 @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
* Supports jitter Clean capability for more cascadable stages.
* Supports 12-bit Deep Full HD, Full 3D and 4K@ 60Hz video.
* Supports standard Audio,DSD Audio and HD(HBR)Audio.
* Supports 1 DVI/HDMI input port and 2 DVI/HDMI output ports.
* Supports conversion of HDMI signal to DVI/HDMI signal.
* SupportsHDMI 2.0b and HDCP 2.2& HDR10for 4K@60Hz.
* SupportsRGB 8:8:8(support Dolby atmos), YCbCr 4:4:4, YCbCr 4:2:2,YCbCr 4:2:0.
* Support Auto mode:automatically matched to the format of hdmi input source.
* Support Copy mode:copy the EDID of TV with lowest resolution.
* Support Mixed mode:fixed 1080P of the HDMI out 2.The HDMI out one will output HDR 10 4K@60Hz signal,the HDMI out two will output full HD 1080P@60Hz signal.
* Supports on-chip 512 byte E-DDC EDID RAM for input port.
* Supports hot plug-play.
* Support Mode：LED indicates signal and power mode
* Support Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
* Support AWG26/AWG28 HDMI 2.0 cable length: Up to 17 ft
* Cascadable to make more than 2 output ports.
* Provide companion HDCP 2.2 Controller(EPF025R)with integrated HDCP keys.
* Power supply(please refer to technical parameter).
Note
For optimum performance, we recommend using high quality, certified HDMI cables (24K Golden HDMI Connector,28AWG or 26AWG) in lengths up to 5m / 17ft for all connections.
High-speed HDMI cables are required for 4K and 1080p resolutions.
High-speed HDMI cables are required for 4K and 1080p resolutions.
