200mm SN8 HDPE Double Wall corrugated culvert pipe

200mm SN8 HDPE Double Wall corrugated culvert pipe

FOB Reference Price: Get Latest Price

≥600 Meters

US $4.35

≥1440 Meters

US $3.92

≥2880 Meters

US $3.62

≥5760 Meters

US $3.45

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 200mm

Specification:: 200mm

Length:: 6M/12M or based on your request

Thickness:: 200mm SN8

Standard:: GB/T19472.1

Color:: Black

Application:: sewage/drainage/culvert

Connection:: socket by seal ring

Raw material:: HDPE

Ring-stiffness:: 8KN SN8

Product name:: HDPE Double Wall corrugated culvert pipe

Working temperature:: -60℃ to +45℃

Certification:: ISO9001

Shape:: Corrugated outer side and smooth inner

long life:: -60℃ to +45℃

Quick Details

Processing Service:: extrusion molding

Place of Origin:: Hebei, China

Brand Name:: TP

Model Number:: 200mm

Specification:: 200mm

Length:: 6M/12M or based on your request

Thickness:: 200mm SN8

Standard:: GB/T19472.1

Color:: Black

Application:: sewage/drainage/culvert

Connection:: socket by seal ring

Raw material:: HDPE

Ring-stiffness:: 8KN SN8

Product name:: HDPE Double Wall corrugated culvert pipe

Working temperature:: -60℃ to +45℃

Certification:: ISO9001

Shape:: Corrugated outer side and smooth inner

long life:: -60℃ to +45℃

Product Description

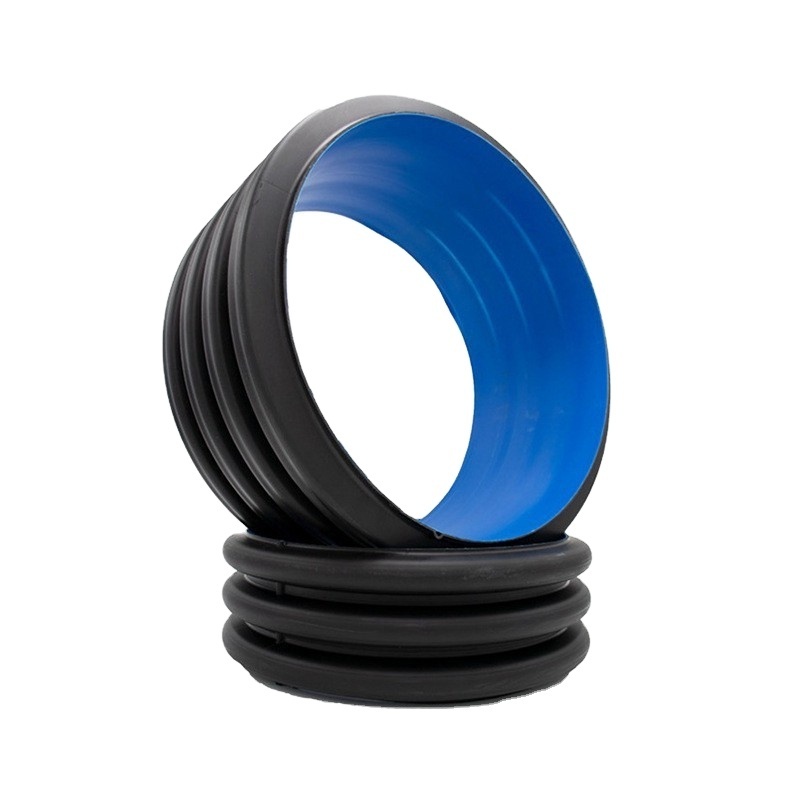

HDPE Double Wall Corrugated Pipe

Material: HDPE

Color : Black , Black-blue,Black-yellow , and based on your request

SIze :200mm,300mm,400mm.500mm,800mm and based on your request

Application: Sewage & Drainage water system

Working Temperature : -60℃ to +45℃

HDPE Double Wall Corrugated Pipe advantages:
1. High density, good compression resistance and good impact resistance;
2. Good resistance of asymmetrical bedding, available being buried in the mollisol and quicksand;
3. Rubber ring connection, easy but no leakage in the joit;
4. Smooth interior wall and low friction, high flow capacity;
5. Good corrosion resistance and no environment pollution;
6. Light weight, easily transport and install, low construction cost;
7. Application: municipal sewage; rainwater discharge; floodwaters drainage; irrigation; ventilation for mine and buildings;
industrial waste discharge.

Specification

Item			Resquest
Ring Stiffness (KN/㎡)	Sn2	≥2(KN/㎡)
		SN4	≥4(KN/㎡)
		SN8	≥8(KN/㎡)
Drying Test Chamber			No air bubble,no delamination,no dehicence
Impact Strength			TIR≤10%
Ring Flexibility			Smooth and evasive,no recervation,no rupture no withdraw in two walls
