Quick Details
-
Production Capacity:
-
30-40 bags/minute
-
Weight (KG):
-
550
-
Voltage:
-
220V,50HZ
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gondor
-
Dimension(L*W*H):
-
1750*740*1950mm
-
Measuring Scope:
-
3 - 10 g( 1.6 ~ 26 ml )
-
Inner bag size:
-
( L ) :50 - 70 mm ; ( W ) :45 - 80 mm
-
Outer bag size:
-
( L ):80 - 120mm; ( W ) :75 - 95 mm
-
Gas source:
-
≥0.4m³/min
-
Mesuring:
-
Volumetric cups
-
Sealing type:
-
Heat sealing
-
Pneumatci components:
-
Air TAC
-
Approval:
-
CE
-
Control:
-
Famous Brand PLC+Touch Screen
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing, Metering
-
Packaging Type:
-
Bags, Film, Pouch, Inner Bag and outer bag
-
Packaging Material:
-
Plastic, Paper, Filter film
-
Production Capacity:
-
30-40 bags/minute
-
Weight (KG):
-
550
-
Voltage:
-
220V,50HZ
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gondor
-
Dimension(L*W*H):
-
1750*740*1950mm
-
Measuring Scope:
-
3 - 10 g( 1.6 ~ 26 ml )
-
Inner bag size:
-
( L ) :50 - 70 mm ; ( W ) :45 - 80 mm
-
Outer bag size:
-
( L ):80 - 120mm; ( W ) :75 - 95 mm
-
Gas source:
-
≥0.4m³/min
-
Mesuring:
-
Volumetric cups
-
Sealing type:
-
Heat sealing
-
Pneumatci components:
-
Air TAC
-
Approval:
-
CE
-
Control:
-
Famous Brand PLC+Touch Screen
Introduction

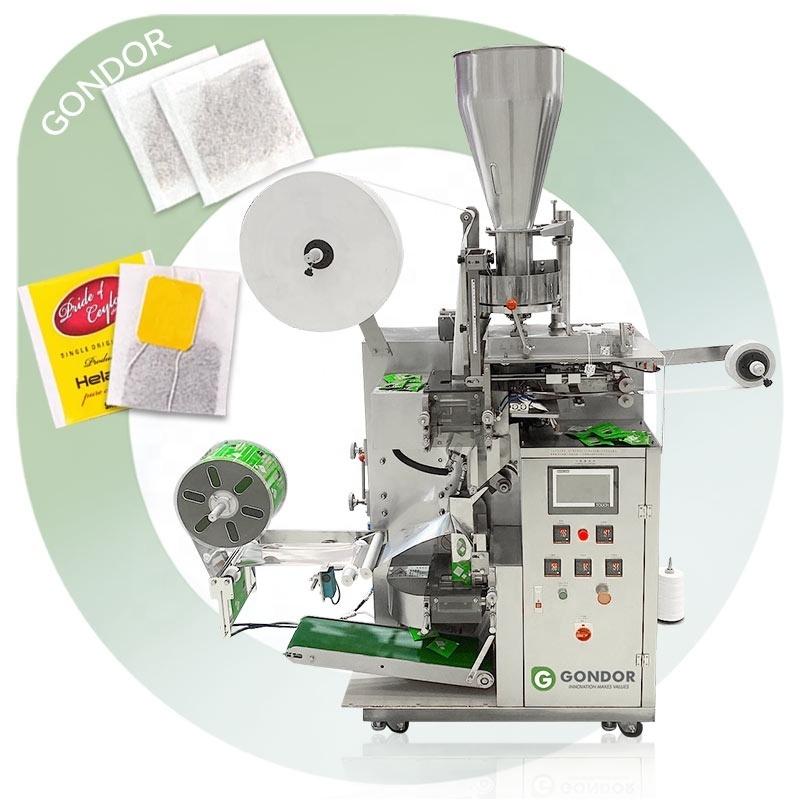

This inner and outer tea bag packing machine is a kind of automatic tea bag machine for the packing of tea and similar herbs. It makes dual teabags with drawing line and tag. the envelope is sealed and packed with paper/polyethylene film which is fresh keeping and damp-proofing. The main characteristic of this equipment is that the size of inner bag and outer bag can be adjusted.
Features
1 . Inner and outer bag's film drawing is controlled by the stepper motor, stable bag length and accurate positioning.
2 . The temperature controller is adjusted by PID to make the temperature control more accurate.
3 . Overall machine movement is controlled by PLC, with human-machine interface display, ensure health of products.
4 . Packing material:filter paper, thread, composite membrane and labels.
Paramater
| Model | GD-TBMM-1 | GD-TBMM-2 |
| Measuring scope | 3 - 10 g( 1.6 ~ 26 ml ) | 1 - 10 g |
| Inner bag size |
( L ) :50 - 70 mm; ( W ) :45 - 80 mm |
( L ) :45 - 90 mm; ( W ) :40 - 90 mm |
| Outer bag size |
( L ) :80 - 120mm ; ( W ) :75 - 95 mm |
/ |
| Packing speed | 30-40 bags / min | 70-100 bags / min |
| Dimension ( L*W*H ) | 1750*740*1950mm | 1350*1150*2260mm |
| Weight | 550 kg | 260-410 kg |
| Total power | AC220V/ 50Hz /3.7kw | AC220V/ 50-60Hz /2.0kw |
| Gas source | ≥0.4m³/min | ≥0.6Mpa |
Q1. Which packing machine is suitable for us ?
Dear, before quoting, please kindly consult us and providing:
1).What kind of product do you need to packing?
2).How many grams in one bag?
3).What's your bag type?
For there is over 100 kinds of packing machine,different on bag size.
In order to recommend u the best,we need know that information.
If u just start this business,no bag size,we can help u to find similar weight bag for your reference.
Q2. Is that packing machine ok for our product? How to operate it?
If you don’t mind,you can send u sample. We will use existing packing machine to test for u.
During that time,we will take video and clearer picture for you. If chance,we can take video online and show u.
Q3. Do you have English Manual for each machinery?
Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
Q4. Is that pack many bag size in the same packing machine?
That is the common question from our customer. Every packing machine has its range for bag length and bag width.can u send us full details,i will calculate for u and give u exact reply.
Q5. Can you customize the machine for me?
Yes, we can customize according to customer's requirements.
Installing waterproof membrane to reduce dust and water pollution
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
Delivery Time
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
