Quick Details
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Width of bed (mm):
-
1100
-
Max. Turned Length (mm):
-
5000 mm
-
Spindle Motor Power(kW):
-
4/5.5
-
Year:
-
2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tengzhou City Dongyi Risheng Machine Tool Co., Ltd
-
Model Number:
-
C6140
-
Voltage:
-
380V, 380v/220v
-
Dimension(L*W*H):
-
11000x2300x2300mm
-
Weight (KG):
-
4800 KG
-
Product name:
-
Horizontal lathe
-
Width of bed:
-
400mm
-
Section of turning tool:
-
25x25mm
-
Hole through spindle:
-
52mm / 80mm / 105mm
-
Spindle taper:
-
MT6
-
Main motor:
-
7.5KW
Quick Details
-
Max. Length of Workpiece (mm):
-
5000
-
Machining Capacity:
-
Heavy Duty
-
Spindle Bore(mm):
-
105 mm
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Width of bed (mm):
-
1100
-
Max. Turned Length (mm):
-
5000 mm
-
Spindle Motor Power(kW):
-
4/5.5
-
Year:
-
2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tengzhou City Dongyi Risheng Machine Tool Co., Ltd
-
Model Number:
-
C6140
-
Voltage:
-
380V, 380v/220v
-
Dimension(L*W*H):
-
11000x2300x2300mm
-
Weight (KG):
-
4800 KG
-
Product name:
-
Horizontal lathe
-
Width of bed:
-
400mm
-
Section of turning tool:
-
25x25mm
-
Hole through spindle:
-
52mm / 80mm / 105mm
-
Spindle taper:
-
MT6
-
Main motor:
-
7.5KW

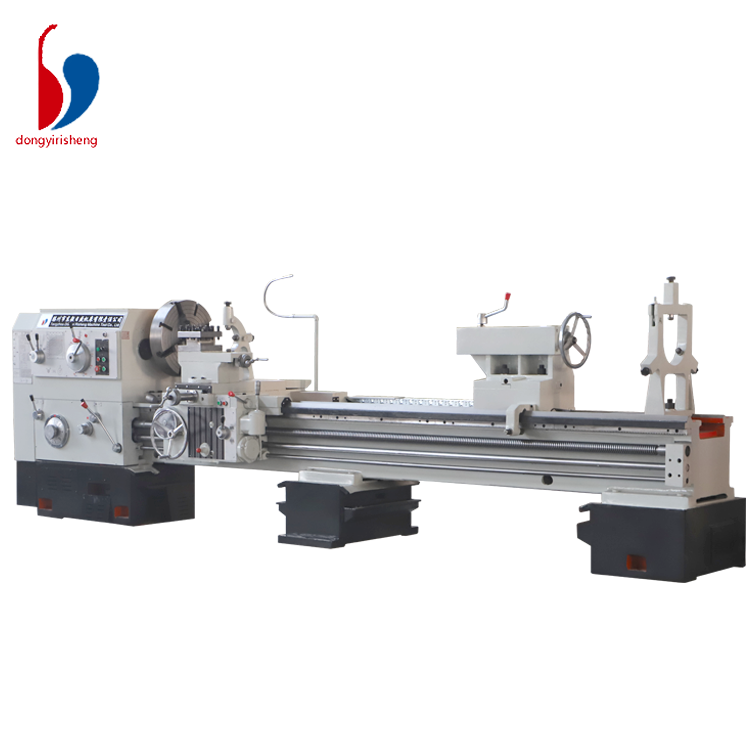

Industrial grade multi-functional automatic metal processing horizontal lathe CA6140/6150
Products Description
Product Paramenters
|
Machine Model
|
Unit
|
CA6150
|
|
Maximum swing diameter on the bed
|
mm
|
500
|
|
Maximum cutting length
|
mm
|
850/1500
|
|
Maximum cutting diameter
|
mm
|
500
|
|
Maximum swing diameter on skateboard
|
mm
|
290
|
|
Width of guide surface
|
mm
|
400
|
|
Spindle end type and code
|
|
A11
|
|
Spindle hole diameter
|
mm
|
82/105/130
|
|
Maximum diameter of passing bar stock
|
mm
|
91/116
|
|
Spindle rotation speed range
|
r/min
|
1800
|
|
Maximum spindle output torque
|
Nm
|
125-350
|
|
Main motor power
|
kW
|
7.5
|
|
Chuck diameter
|
mm
|
250 Manually
|
|
X-axis fast moving speed
|
m/min
|
8
|
|
Z-axis fast moving speed
|
m/min
|
10
|
|
X axis stroke
|
mm
|
300
|
|
Z axis stroke
|
mm
|
1000/1600
|
|
Tailstock sleeve diameter/stroke
|
mm
|
75/200
|
|
Taper of tailstock spindle taper hole
|
MOSHI
|
5#
|
|
Total weight of machine
|
kg
|
2850
|
|
Machine shape L×W×H
|
mm
|
2750/3330X1700X1820
|
|
X-axis positioning accuracy
|
mm
|
0.01
|
|
Z-axis positioning accuracy
|
mm
|
0.015
|
Details Images
Metal three-jaw chuck
Three-jaw/four-jaw chucks can be assembled according to customer require-ments for lathe models.lt is conducive to clamping different objects, processing and rapid production.
High precision screw
It
has good wear resistance and accuracy retention,ensuring that the machine can be used for a long time and has a long life.
Quenched tailstock
The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.
Four-station tool holder,fast-moving mechanism,can be operated with one hand, and tool holder pro-tection is optional.
