Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
10000*6000*4000mm
-
Power (kW):
-
200
-
Weight:
-
10000
-
Screw Speed (rpm):
-
10 - 150 rpm
-
Material:
-
PP/PE
-
Keywords:
-
plastic pallets making machine
-
Application:
-
pelletizing Plastic Waste
-
Name:
-
plastic melter densifier
-
Raw material:
-
HDPE Bottles scrap
-
Machine Type:
-
Single/double Stage Pelletizing
-
Function:
-
Make Recycle Plastic Granules
-
Processing Type:
-
Waste PE PP Plastic Granulating
-
Color:
-
Customer Choice
-
Power:
-
50HZ
Quick Details
-
Output (kg/h):
-
200 - 1000 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOXIN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
10000*6000*4000mm
-
Power (kW):
-
200
-
Weight:
-
10000
-
Screw Speed (rpm):
-
10 - 150 rpm
-
Material:
-
PP/PE
-
Keywords:
-
plastic pallets making machine
-
Application:
-
pelletizing Plastic Waste
-
Name:
-
plastic melter densifier
-
Raw material:
-
HDPE Bottles scrap
-
Machine Type:
-
Single/double Stage Pelletizing
-
Function:
-
Make Recycle Plastic Granules
-
Processing Type:
-
Waste PE PP Plastic Granulating
-
Color:
-
Customer Choice
-
Power:
-
50HZ

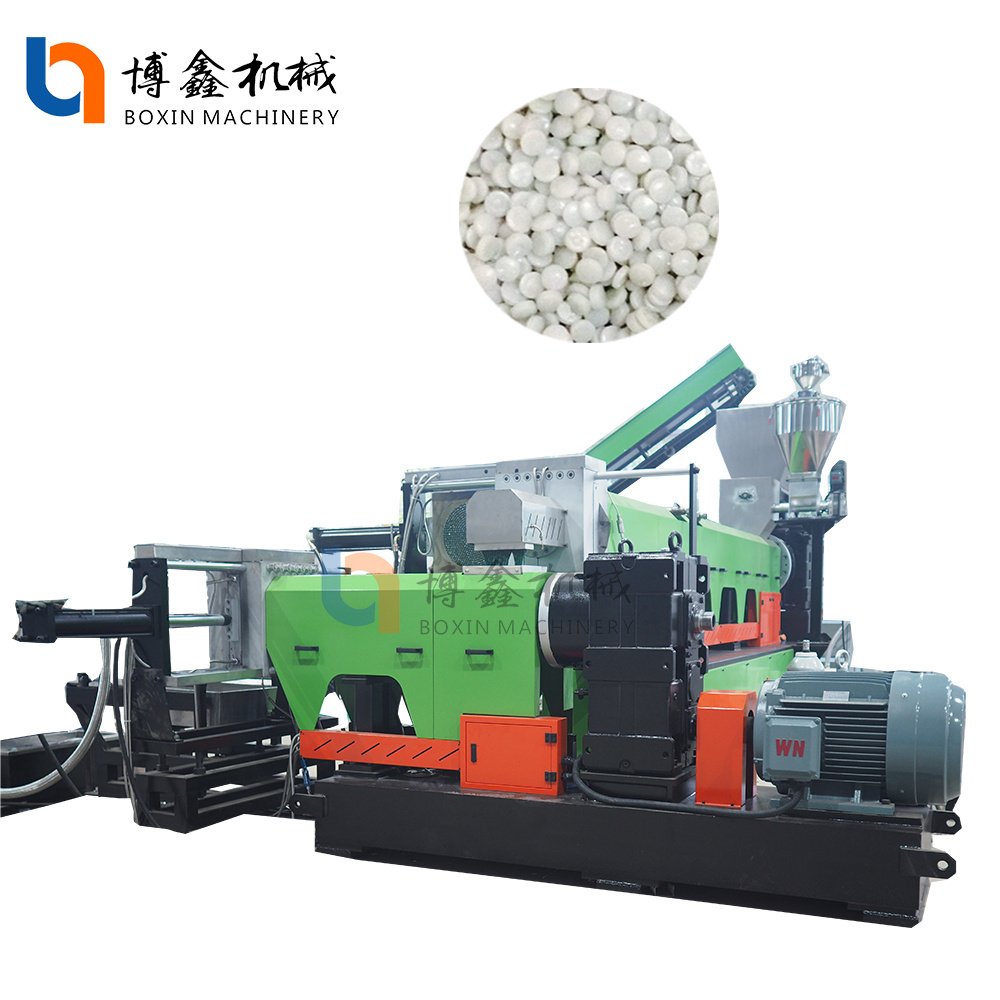

BOXIN manufacturing PP PE jumbo bag/woven bags/films waste plastic recycling machine price
This HDPE
double stage plastic recycling machine
mainly do HDPE hard bottles ,PP PE hard flakes, or film, bags after agglomerating, Adopting special screw design and different technical ,it also can produce etc. various plastic recycling and color mixing pelletizing.
Product Description
Boxin have two types of
PP woven bag recycling machine
: one stage and two stags.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and
contamination; And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
SJ100 extruder pelletizing line
is especially good for the raw material which contain high moisture, high impurities.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and
contamination; And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
Raw Material
Details Images
|
1
|
Stainless Steel Feeder
|
|
Usage
|
single screw feeder, feeding smoothly and evenly
|
|
|
Stainless Steel Material Body
|
|
|
With Spiral Charger
|
|
Brand
|
Boxin Machinery
|
|
2
|
Single screw Extruder
|
|
Usage
|
Heating and melting raw materials
|
|
|
Exhausting gas
|
|
Barrel, screw material
|
38CrMoALA, After nitriding treatment
|
|
Brand
|
Boxin Machinery
|
|
3
|
2nd Stages Single Screw extruder
|
|
Usage
|
To make the material more stable
|
|
Barrel, screw material
|
38CrMoALA, After nitriding treatment
|
|
L/D
|
10:1
|
|
Brand
|
Boxin Machinery
|
|
4
|
Hydraulic screen changing device
|
|
Plate type
|
Hydraulic screen changer for No stopping, no leaking
|
|
Motor Power
|
2.2kw
|
|
|
Changing screen time≤2 sec
|
|
Brand
|
Boxin Machinery
|
|
5
|
Water-Ring cutting system
|
|
Usage
|
Vertical/Horizonal Water-ring die face hot cutting system
|
|
|
Speed controlling by frequency conversion
|
|
Containing
|
hot cutting die head、diffluence strick, water-ring cover, knife rest
|
|
Brand
|
Boxin Machinery
|
|
6
|
Water Tank
|
|
Usage
|
cooling pellets
|
|
Length
|
The length will be made with situation.
|
|
|
Material of the part in contact with the material Stainless steel
|
|
Brand
|
Boxin Machinery
|
|
7
|
Vibration Sieve Machine
|
|
Usage
|
Remove bad pellet and keep good pellet
|
|
Motor power
|
0.25kw*2
|
|
|
Material of the part in contact with the material Stainless steel
|
|
Brand
|
Boxin Machinery
|
|
8
|
Storage silo
|
|
Usage
|
Storage the final pellets to with a bag
|
|
Effective capacity
|
700L
|
|
|
Material of the part in contact with the material Stainless steel
|
|
Brand
|
Boxin Machinery
|
Product Paramenters
One Stage
PP PE
Plastic pellet making machine
|
Model
|
STSJ90
|
STSJ100
|
STSJ120
|
STSJ130
|
STSJ160
|
STSJ180
|
|
90Screw Dia.
|
90
|
100
|
120
|
130
|
160
|
180
|
|
L/D Ratio
|
33:1
|
33:1
|
33:1
|
33:1
|
33:1
|
33:1
|
|
Capacity(kg/h)
|
150-200
|
200-250
|
250-350
|
450-550
|
650-800
|
800-1000
|
|
Extruder Main Motor(kw)
|
55
|
75
|
90
|
132
|
160
|
250
|
|
Total Electric Power(kw)
|
110
|
135
|
160
|
215
|
263
|
375
|
Two Stage PP PE
Plastic pellet making machine
|
Model
|
STSJ90/90
|
STSJ100/100
|
STSJ120/120
|
STSJ130/130
|
STSJ160/160
|
SJ180/200
|
|
Screw Dia.
|
90
|
100
|
120
|
130
|
160
|
180
|
|
L/D Ratio
|
28:1/10:1
|
28:1/10:1
|
28:1/10:1
|
28:1/10:1
|
28:1/10:1
|
28:1/10:1
|
|
Capacity(kg/h)
|
150-200
|
200-250
|
250-350
|
450-550
|
650-800
|
800-1000
|
|
First Stage Motor (kw)
|
55
|
75
|
90
|
132
|
160
|
250
|
|
Second Stage Motor (kw)
|
22
|
30
|
37
|
45
|
55
|
75
|
|
Total Electric Power(kw)
|
150
|
185
|
220
|
285
|
350
|
490
|
