Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HM
-
Model Number:
-
HM-KAN-L501
-
Operation type:
-
Momentary
-
operating life:
-
6000cycles
-
Rating:
-
10A 250VAC 15A 125VAC
-
Certification:
-
ROHS
-
Temperature:
-
T120°
-
Insulation resistance:
-
min 100MΩ at DC 500V
-
Max. Working Voltage:
-
500V
-
Materials:
-
housing actuator PA66
-
operating force:
-
7N+-1N
Quick Details
-
Protection Level:
-
IP40, IP40
-
Max. Current:
-
15A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HM
-
Model Number:
-
HM-KAN-L501
-
Operation type:
-
Momentary
-
operating life:
-
6000cycles
-
Rating:
-
10A 250VAC 15A 125VAC
-
Certification:
-
ROHS
-
Temperature:
-
T120°
-
Insulation resistance:
-
min 100MΩ at DC 500V
-
Max. Working Voltage:
-
500V
-
Materials:
-
housing actuator PA66
-
operating force:
-
7N+-1N

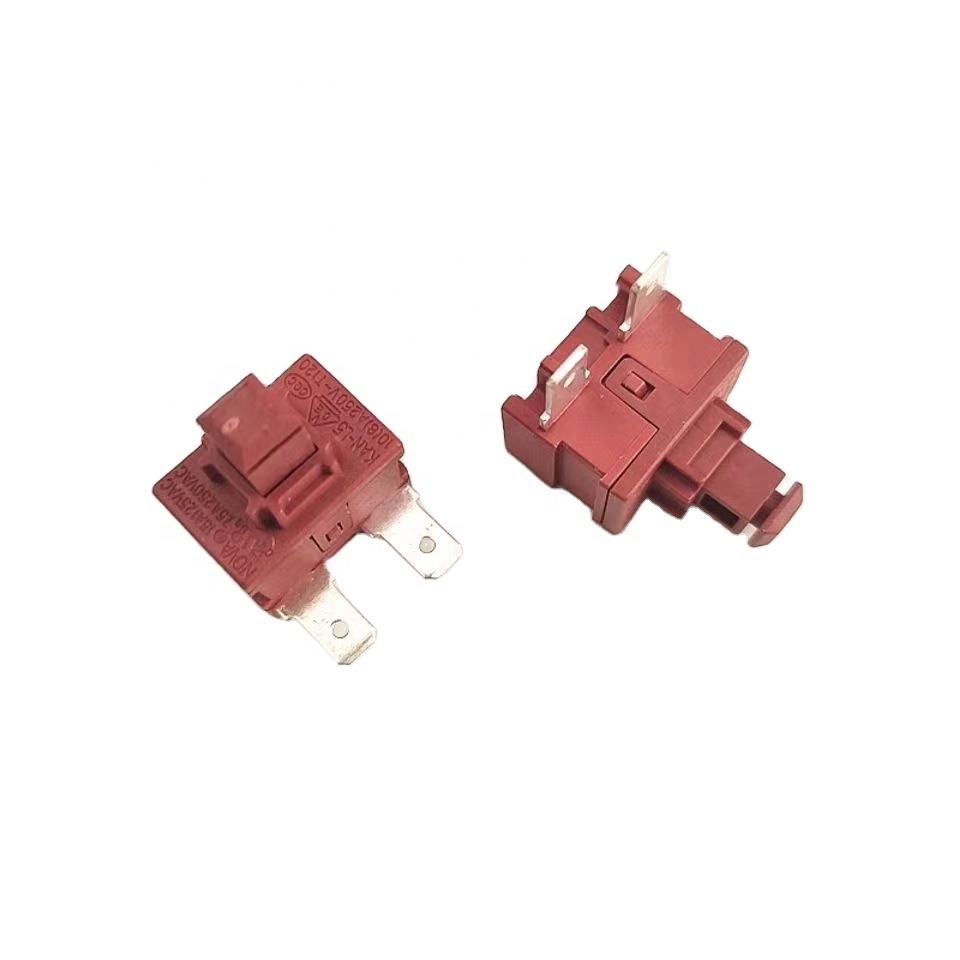

15A 250VAC single pole latched push button switch with 2 soldering pin and thermal resistant T120
|
Type |
Latched momentary,single pole push button switch |
|
Terminal |
SMD/SMT |
|
Rating |
10A 250VAC ,15 A 250VAC |
|
Travel |
0.25±0.1mm |
|
Contact Resistance |
≤ 0.03 mΩ |
|
Temperature rating |
T120°C |
|
Electrical Life |
100,00 Cycles Min |
|
Operating Force |
1.8N-2.8N |
|
Dielectric Strength |
AC250V(50/60Hz for 1minute) |
|
Enviroment humidity |
-25-+70° C |
|
Insulation Resistance |
≥ 100mΩ |
|
Voltage withstand |
AC250V 50Hz/min |
|
Push knorb |
square |
|
Welding Conditions |
Hand Soldering 350℃ Max 3s Max Condition for Reflow 260℃Max 5s Max |
|
Welding time(seconds) |
3S |
|
material |
C opper iron plastic |
|
W ay/pins |
2/4 pin |
|
contacts |
Copper with compound silver |
|
Terminals & Mid pins |
Copper with silver plated |
