Quick Details
-
Model Number:
-
CN101A, THC-101A (Programmable Timer)
-
Max. Current:
-
16A
-
Display:
-
LCD Display Weekly Timer
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
220-240V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Elsine
-
Model Number:
-
CN101A, THC-101A (Programmable Timer)
-
Max. Current:
-
16A
-
Display:
-
LCD Display Weekly Timer
-
Certification:
-
CE

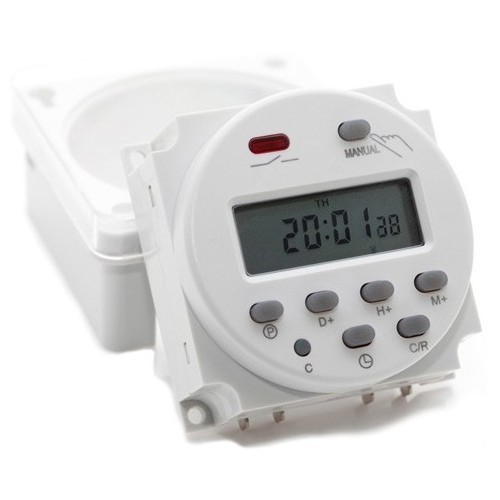

CN101A THC-101A Small microcomputer control switch Power Timer
Weekly Programmable Electronic Timer Switch, Timer Switch 12V 24V 110V 220V
Energy Saving Timer, digital timer switch, programmable digital timer.
Application:
Panel mounted, advanced pre-setting one week before, digital electronic timer switch with daily programs, repeat programs with 17 On/off setting and manual over-ride, auto timer error correction +- 30 sec, weekly.
The program timer can automatically switch on and switch off various kinds of electric equipment according to fixed time.
Widely Used in the field of control the lamp, water heater, sprayer, bottler, preheater, agriculture facilities, broadcasting equipment, home appliance, etc
Specifications:
- Operating Voltage: 220-240V AC 50-60 Hz
- Custom-made voltage: 12V, 24V, 36V, 48V, 110V, 380V/50 to 60Hz DC
- Control output: 16A (Direct), also can use capacity control
- Set times: 17 times switch (day/week) 17ON+17OFF
- Set time range: 1Minute to 168 hours
- Accuracy:+-1s/Day at +25 °C
- Power failure memory: 60 Days (the built-in rechargeable battery 1.2V 40Ma)
- Dimensions: 60x60x32mm
Installation: screws, socket connection (plus shell 72x72mm panel enclosure can be Installed by)
F rame/enclosure:
OPERATING INSTRUCTION:
1.First time use this timer switch,please input AC and let battery recharge,after then press reset key.
2.At first time,the timer switch is in 24h mode.If you want change to 12 mode please press on "©"
key 5s,and LCD will display AM.If you want re-change to 24h mode,and press on "©" key 5s to return.
