Quick Details
-
Product name:
-
Full hole wall imaging system
-
Model Number:
-
GD-C1201
-
Sensor:
-
CCD
-
Video Compression:
-
H.265
-
Data interface:
-
USB2.0 interface
-
Accuracy of sounding:
-
0.1mm
-
Probe diameter:
-
24mm, 40mm, 52mm, 65mm, 100mm
-
Image pixel:
-
130,0000 pixel
-
Special Features:
-
Waterproof / security
-
Processor:
-
Embedded dual-core processor with high performance
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Gold
-
Product name:
-
Full hole wall imaging system
-
Model Number:
-
GD-C1201
-
Sensor:
-
CCD
-
Video Compression:
-
H.265
-
Data interface:
-
USB2.0 interface
-
Accuracy of sounding:
-
0.1mm
-
Probe diameter:
-
24mm, 40mm, 52mm, 65mm, 100mm
-
Image pixel:
-
130,0000 pixel
-
Special Features:
-
Waterproof / security
-
Processor:
-
Embedded dual-core processor with high performance

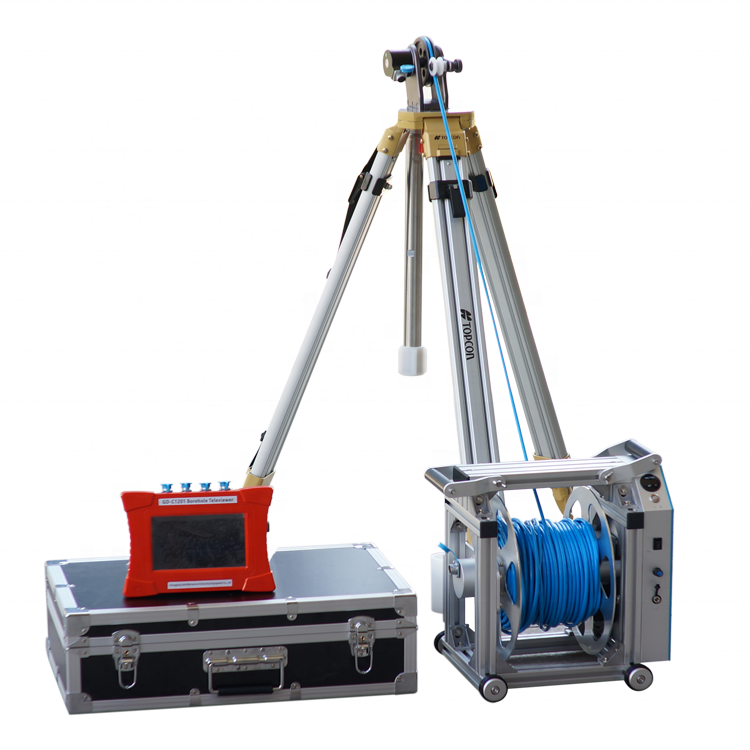

Full hole wall imaging system
Our newly launched product Full hole wall imaging system can be widely used in various fields, such as engineering geology, hydrogeology, geological exploration, geotechnical engineering, mining and other departments. It is mainly designed to help us survey various types of drilling data, such as our common vertical holes, horizontal holes, inclined holes (with depression and elevation angles), anchor cable (shaft) holes, geological drilling, concrete drilling hole.
One of the product's key features is the ability to generate digital drill cores, thereby permanently preserving the data. This device is particularly useful in fault zone formations where obtaining true cores may not be feasible.
| Vertical image resolution | 0.1mm |
| Horizontal image resolution | 1024 |
| Depth counting precision | 0.01mm |
| Azimuth accuracy | ± 0.1 ° |
| CCD | 1/3 inch, 700 line HD no missing codes |
| Cable length | 150m, 300m, 600m, 800m |
| Practical aperture | Diameter 70-300mm |
| Special Features |
Highly integrated Easy expansion High intelligent High reliability High definition Wide visual angle Good portability Good operating performance Low requirement on power source |
Product configuration:
|
Standard
|
N O |
N ame |
U nit |
Qual . |
|
1 |
H ost |
|
1 |
|
|
2 |
Φ65 Conventional probe |
|
1 |
|
|
3 |
Depth coder |
|
1 |
|
|
4 |
Manual cable winch |
|
1 |
|
|
5 |
C able |
m |
100 |
|
|
6 |
12VC harger |
|
1 |
|
|
7 |
F ile transfer cable |
|
1 |
|
|
8 |
Vacuum silica |
|
1 |
|
|
9 |
Tripod |
|
1 |
|
|
10 |
Software |
|
1 |
|
|
|
|
|
|
|
|
|
|
|
← Φ 40 horizontal / inclined hole probe
← Φ 65d eep water probe
← Φ 40 deep water probe
← P ush rod for horizontal or inclined hole probe
←
host
detailed drawing:
Virtual corePlane developing chart
Report
Capture photo
